Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type

Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type

  • Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type
  • Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type
  • Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type
  • Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type
Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: LPW-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V,3PH,50HZ Or Customerized Power: 4KW
Welding Type: MIG / SAW Welding Diameter: Upto 350mm
Usage: Light Pole Welding Workpiece Length: 12m - 14m
High Light:

cut to length line machine

,

light pole production line





Light Pole Automatic Welding Machine



This machine is specially designed for light pole automatic seam welding.

Welding method: Submerged Arc Welding/MIG Welding.

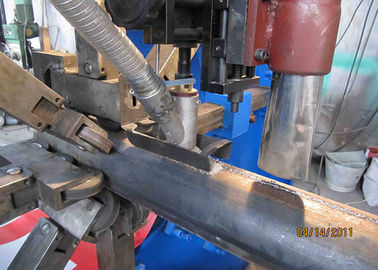

LIGHT POLE WELDING MACHINE is suitable for one shell type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.



The machine includes the following items:

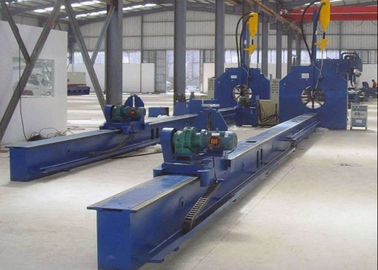

Long working table with rack for pull dolly.

Dolly for pulling pole

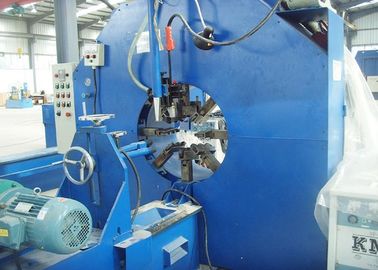

Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole)

Submerged Arc Welding system, including welding wire feeding system.

The flux recovering system

Back support unit

Hydraulic system





Structures:



The machine includes the following items:



  1.  Long working table with rack for pull dolly.
  2.  Dolly for pulling pole.
  3.  Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole) .
  4.  Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including welding wire feeding system.
  5.  The flux recovering system.
  6.  back support unit.
  7.  hydraulic system.



Technical Parameters:



Workable Diameter 60-340mm
Workable length 12000 mm
DOLLY LENGTH 1500 MM

Light pole thickness

(Without Option1:Both side additional hydraulic cylinder)

Light pole diameter: 60~340mm 2.8~4mm
Light pole diameter: 250~340mm 2.8~6mm

Light pole thickness

(With Option1:Both side additional hydraulic cylinder)

Light pole diameter: 60~340mm 2.8~5mm
Light pole diameter: 250~340mm 2.8~6.5mm
Light pole diameter: 300~340mm

2.8~8mm

(Gr50. 3~6mm)

Power of Motor for Pump 4 KW
If with Option 1 4+2.5 KW double pump
Power of Motor for pulling dolly

4 KW, AC speed changeable type.

4 KW.

Welding Machine 630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding.
Welding wire diameter 1.2~2mm welding wire, according the pole thickness to do selection
Working Speed 1~3m/min (Note: different thickness speed will be different)
Clamping feet quantity 8, ( the advantage is that more clamping unit , it gives less pressure and less mark on the surface of pole.
Gross weight 7000 kg
Overall sizes (mm) 27000x3000x4500 mm (LXWXH)



Automatic Spot Light Pole Welding Machine For Round Octagon Pole SAW Type 0
