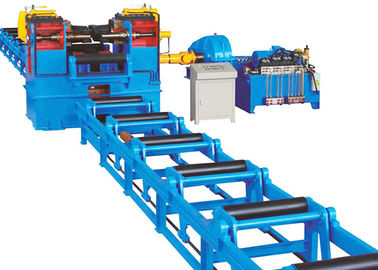

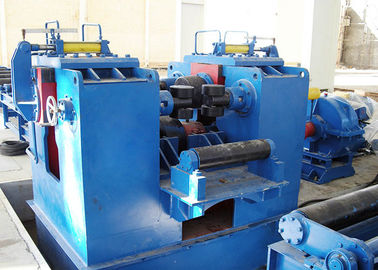

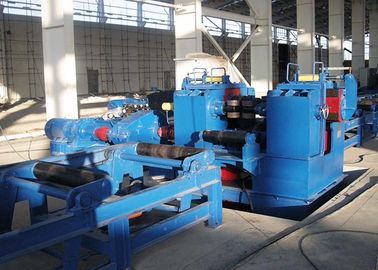

Automatic H Beam Straightening Machine Hydraulic Type Max 80mm Flange Thickness

Automatic H Beam Straightening Machine Hydraulic Type Max 80mm Flange Thickness

  • Automatic H Beam Straightening Machine Hydraulic Type Max 80mm Flange Thickness
  • Automatic H Beam Straightening Machine Hydraulic Type Max 80mm Flange Thickness
  • Automatic H Beam Straightening Machine Hydraulic Type Max 80mm Flange Thickness
Automatic H Beam Straightening Machine Hydraulic Type Max 80mm Flange Thickness
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HJZ-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Flange Thickness: 6-80mm
Flange Plate Width: 200-800mm Material: Q235-A
Color: Red+black, Blue+yellow, Grey+yellow Or Customized Warranty: 1 Year
High Light:

h beam assembly machine

,

h beam welding line



HJZ Series H Beam Strighghtening Machine (HydraulicType)





This machine is different from hydraulic straightening machine HJZ-60, it adopts the construction of mechanic straightening machine HJZ-80, it is two correction wheel on the top straighten the flange downward. The difference is, the power of correction wheel is from hydraulic cylinder instead of gear reducer. The characteristic of using top correction wheel is :

1 . both sides of flange can be corrected separately and can control the effect of straightening so that to make the web vertical after straightening.

2. The roller conveyor no need elevating which can save cost and easy for operation.





Product Details



1) Cylindrical gear reducer using the carburizing and quenching,gear grinding carrying capacity increased by more than four times,small volume,light weight,low noise,efficient,high reliability.





2) The roller using 40Cr and 35CrMo material,By the whole forging,A one-time processing molding,Surface high frequency quenching, quenching hardness is HRC50-55,To ensure that its long-term use will not produce cracks and other defects.





3) Electric control system is separated with main machine,easy to operate.



4) Hydraulic pump station is as a peripheral independent system, which adopts the Ningbo Chuangli brand.







Technical Parameters:



Straightening Thickness 6-80mm( for material Q345 thickness is 6-60mm)
Flange Width 200-800mm
Web Height ≥350mm
Workpiece Material Q235-A
Straightening Speed 6m/min
 Motor Power 44KW
Straightening Type Hydraulic Type



H beam flange thickness and width shall accord with below table



s 6-20 20-30 30-40 40-50 50-60
b 200-800 350-800 500-800 650-800 750-800





Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
