Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine

Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine

  • Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine
  • Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine
Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: XBH-1150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Gauge Of Gantry Frame: 2000mm Or As You Request Width Of Flange: 200-800mm
H Beam Height: 200-2000mm Usage: H Beam Welding
Welding Type: Boat Type Welding Warranty: 12 Months
High Light:

cnc h beam drilling machine

,

h beam assembly machine



Automatic Cantilever Type SAW Welding Machine for Steel Structure





XBH type column-beam welding machine adopted the imported AC transducer. The equipment is stable and reliable is operation, and has the quick move-back function.The tracking arc-guide mechanics is three-spindle tracking system to guarantee the alignment ang not bias are on the weld.The main frame and the welding machine are performed integrated interlocking and the equipment is provided with flux auto-recovering system and it is easy controlled, and highly efficient.







Machine advantage:



1) Host machine and welding machine to implement the linkage control, meanwhile, it is equipped with the auto welding flux feeder and recovery system, easy operation, high efficiency.



2) Walking rack moving is frequency speed control, the speed can be adjusted according to the welding technology requirement with convenience.



3) This machine can not only weld the H beam, it can also weld the box beam by changing the arc guiding rack.



4) This machine can realize forth and back welding, which improves the welding efficiency greatly.



5) Main body of upper beam is square pipe, which is light and has high rigidity. There are guiding rail and rack on upper beam. It makes tool carriage and transverse arm moving horizontally on the beam.



6) The web height of H beam won’t be limited, it can weld large size H beam.





Technical Parameters:



Model XBH-1150
Web Height (mm) 200-2000
Web Width(mm) 200-800
H beam Length (mm) 6000-15000
Model of Welding machine Two sets of model MZ1-1000 SAW welding machine
Welding Mode Ship-welding
Welding Speed(m/min) 0.3-1.5
Returning Speed(m/min) 3
Rails Span 1150mm
Overall Power 4.75kw (welding machine is excluded)





Welding Process:

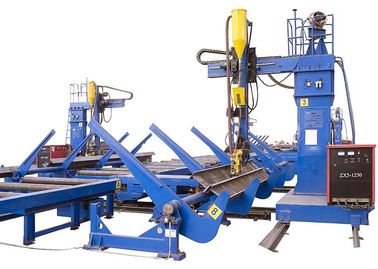

Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine 0



Finished products:



First class welding process, perfect finished product show.

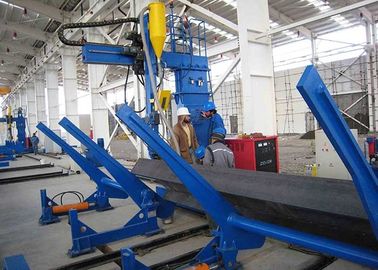

Automatic Cantilever Type SAW Welding Machine , Steel Structure H Beam Assembly Machine 1





Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?



These information is helpful for us to choose suitable equipment solution and price quickly.
