| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | FZJ-60 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 x 20' GP |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Turning Angle: | 0-60° | Width Of Flange: | 200-800mm |
|---|---|---|---|
| H Beam Height: | 200-2000mm | H Beam Length: | 4000-15000mm |
| Usage: | H Beam Welding | Warranty: | 12 Months |
| High Light: | cnc h beam drilling machine,h beam assembly machine |
||
60 Degree H Beam Overturning Machine for H Beam Production Line

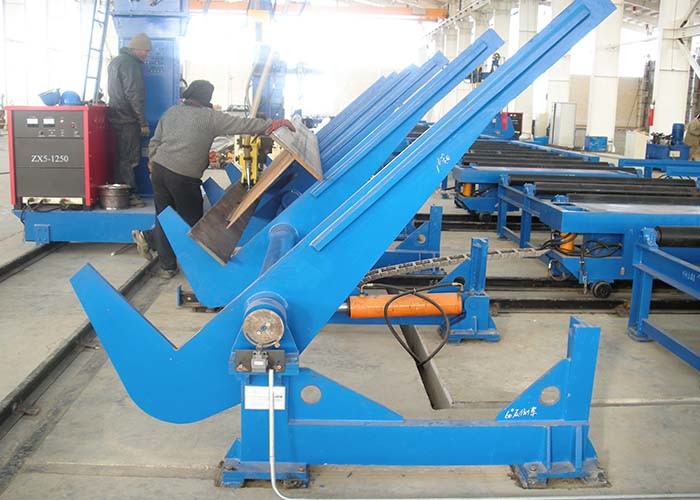

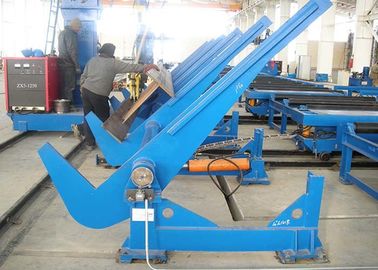

1) 60° overturning machine is used together with cantilever welding machine to achieve automatic H beam welding.
2) One group of 60° overturning machines has three sets of overturning frames.

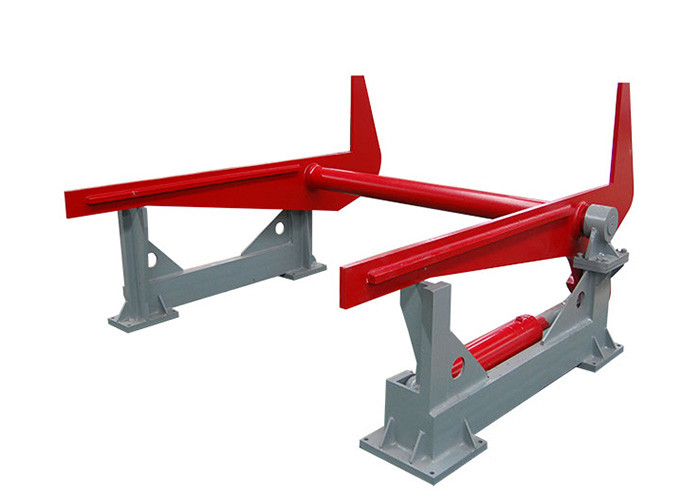

3) Each overturning frame is composed of two bases, one set of L shape turning arm (two arms connected by steels pipes as a whole), and hydraulic cylinder and so on.
4) When working, one group three sets turning arms returning at the same time, synchronous movement is controlled by synchronous valve on hydraulic pump station, while overturning angle can be set up randomly by stroke switch.
Technical Parameters:
| Web Height | 200-2000mm |
| Flange Width | 200-800mm |
| Applicable Workpiece Length | 4000-15000mm |
| Turning Angle | 0-60゜ |
| Turning workpiece weight | 18T/Set |
| Turning cylinder diameter | ф125mm |
| System pressure | 16Mpa (used one 11KW hydraulic station with steel remover, 2 groups of 60゜Hydraulic Turning Bracket + 1 group steel remover) |
| Hydraulic Station | 2 sets, 2 groups 60°turning brackets share one hydraulic station with one group steel remover. |
Welding Process:
Finished products:
First class welding process, perfect finished product show.
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
