| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | FZJ-90 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 x 20' GP |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Turning Angle: | 0-90° | Width Of Flange: | 200-800mm |
|---|---|---|---|
| H Beam Height: | 200-2000mm | H Beam Length: | 4000-15000mm |
| Usage: | H Beam Welding | Warranty: | 12 Months |
| High Light: | cnc h beam drilling machine,h beam welding line |
||

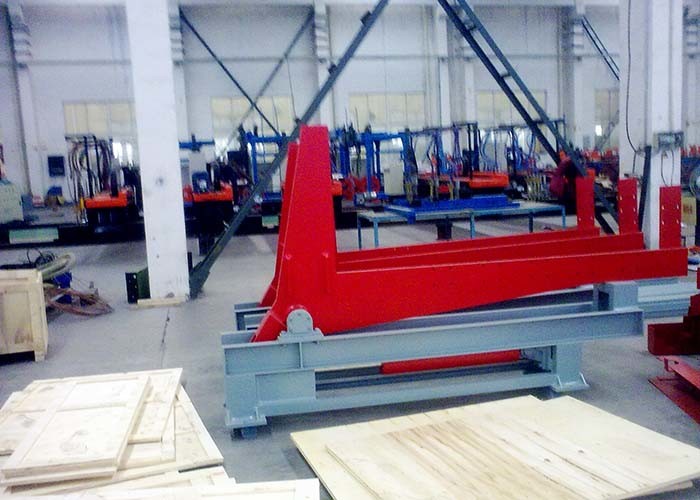

90 Degree H Beam Conveying Machine for H Beam Production Line
1) 90° conveying machine is a associated equipment for the assembling machine in the H-beam heavy duty production line.
2) There are 3 sets in one group usually, and used to turn the H-beam from vertical position to horizontal position by 90°turning, so that the beam be conveyed to next step for welding.

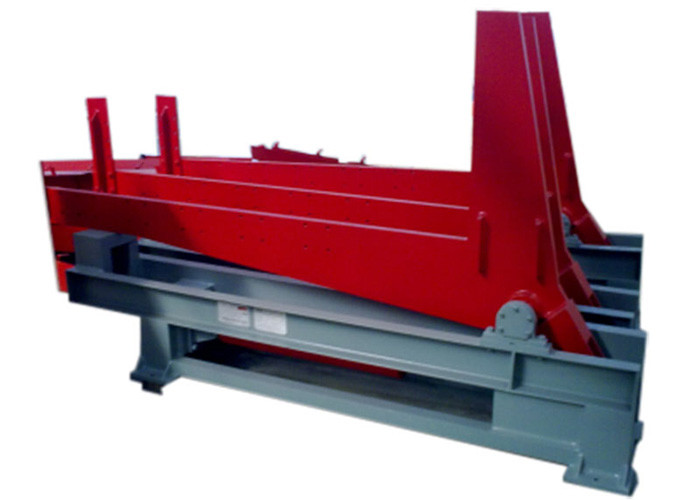

3) The “L” type turning arm is driven by hydraulic cylinder, and since there is synchronize valve installed on it, the 3 sets 90°turning machine can do synchronize overturning.
Technical Parameters:
| Web Height | 200-2000mm |
| Flange Width | 200-800mm |
| Applicable Workpiece Length | 4000-15000mm |
| Turning Angle | 0-90゜ |
| Turning workpiece weight | 18T/Set |
| Turning cylinder diameter | ф125mm |
| System pressure | 16Mpa |
Finished products:
First class welding process, perfect finished product show.
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
