SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal

SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal

  • SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal
  • SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal
SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: XLMH-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Gauge Of Gantry Frame: 4000mm Or As You Request Box Beam Section Length: 300-1200mm
Box Beam Section Width: 300-1200mm Usage: Box Beam Welding
Welding Type: Boat Type Welding Warranty: 12 Months
High Light:

beam welding line machine

,

electroslag welding machine

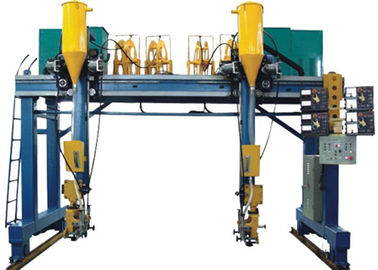

Automatic Gantry Type SAW Welding Machine for Steel Box Beam





It is the welding supplementary machine for special use that design for box-beam welding (flat angle welding seam). The machine use gantry style main structure, driving double-sides,controlled the speed stepless by converter; Tracing of welding seam uses the type of mechanic guiding roller; The up-down and right-left operation is controlled by pneumatic technology. In order to improve the efficiency of big fillet welding , it is equipped with big electric current and double machine head (single welding seam) to process double arcs double wires weldings, installation of the machine head is separated from arc-guiding mechanism.The device which is used to protect solder, avoiding too much solder drop down; lay-up of workpiece can use fixed frame and it can also be transmitted by roller, so it can form an assembling with other sets of machines.





Product Details:





1) The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.





2) Each of walking beams is driven by a motor reducer, forming a double-drive system, which makes the operation smooth and reliable.





3) The moving of gantry is frequency speed adjust controlled, the welding speed can be adjusted according to welding technology requirement.



4) The electric control system consists of one electric control box and two operation panels. The electric control box is equipped on a walking beam, while the 2 operation panels are fixed on the front of upper platform. They are placed separately, which is convenient for operation.



5) Cantilever type automatic welding machine.The gantry welding machine can weld back and forth to improve the work efficiency. According to the user needs to increase the height of the web.





Technical Parameters:



Width of applicable box beam 300-1200mm
Height of applicable box beam 300-1200mm
Welding speed: 0.17-3.4m/min
Returning speed 6.8m/min
Welding position Horizontal welding
Total power 9KW

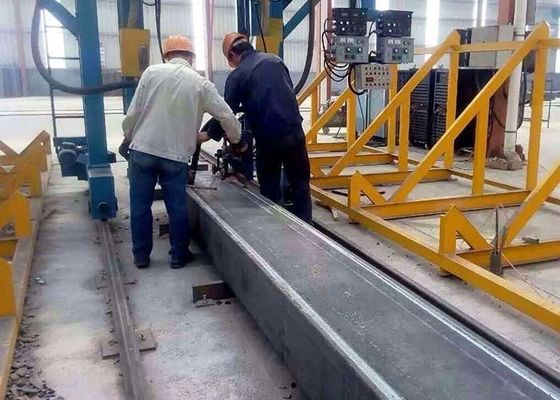

SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal 0





SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal 1

SAW Box Beam Production Line Automatic Gantry Type 1200X1200mm Horizontal 2

Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• •What's the material of your Box beam?

• What's the min and max thickness of box beam plate?

• What's the min and max box beam section width?

• What's the min and max box beam section length?
• What’s the length of your box beam?



These information is helpful for us to choose suitable equipment solution and price quickly.
