| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | BFZJ-90 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 x 20' GP |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Turning Angle: | 0-90° | Box Beam Section Length: | 300-1200mm |
|---|---|---|---|
| Box Beam Section Width: | 300-1200mm | Box Beam Length: | 4000-15000mm |
| Usage: | Box Beam Welding | Warranty: | 12 Months |
| High Light: | steel structure production line,electroslag welding machine |
||

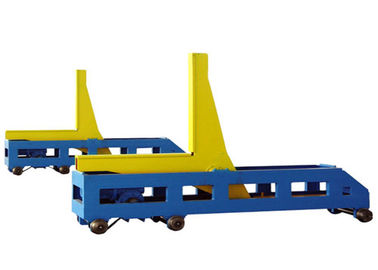

90 Degree Box Beam Conveying Machine for Box Beam Production Line
Moving type 90°overturning machine can support the use of electro slag welding. It is used for overturning
the Box-beam workpiece, and is composed by two sets of overturning machines, one hydraulic station and
one electrical control box. Workpiece overturning process including:
1) Two overturning machines move to the place which under the workpiece;
2) The rocker arms first overturn 45° to raise the workpiece from roller conveyor;
3) Two overturning machines move simultaneously, and move the workpiece to suitable position;
4) The rocker arms overturn 45° again and workpiece overturn 90°, then lay it on the roller conveyor.
Technical Parameters:
| Track gauge | 700 mm |
| Overturning capacity | ≤20 T |
| Moving speed | 5 m/min |
| Moving motor power | 2.2 kW×2 |
| Hydraulic system power | 22 kW |
| Hydraulic system working pressure | 25 MPa |

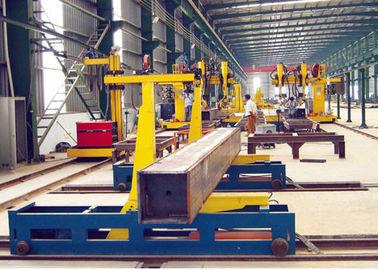

Finished products:
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
