| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | SkillCUT65 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per month |
| Rated Input Voltage: | 3 Ph, 380V, 50Hz | Output Current Range: | 30-65A |
|---|---|---|---|
| Motor Type: | DC Motor | Usage: | Cutting |
| Color: | Green + Black | Warranty: | 1 Year |
| High Light: | welding machine equipment,arc welding equipment |
||

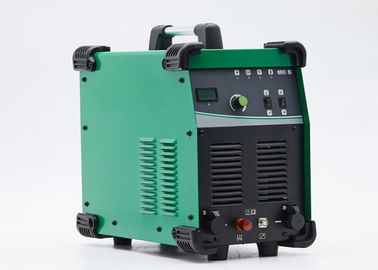

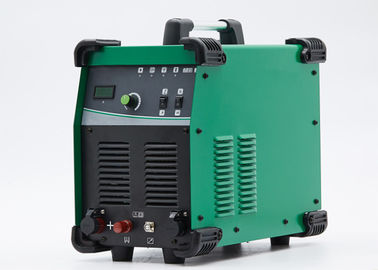

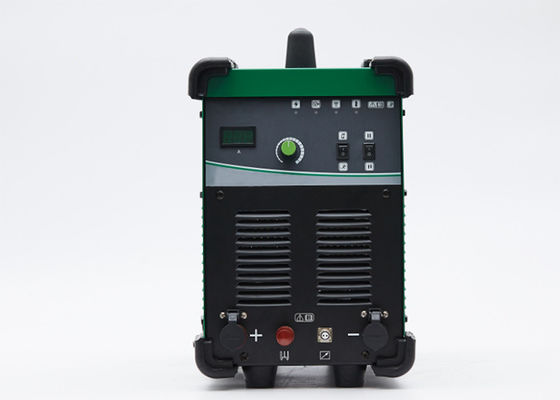

IGBT Type DC Inverter Air Plasma Cutting Machine SkillCUT65 for Metal Cutting
1). Adopts advanced switch power control technology, improves reliability of whole machine.
2). Adopts HF transferring arc technology, 100% pilot arc sucess rate.
3). Pre-set cutting current accurately, fine cutting function, good cutting surface.
4). Full new fan channel and anti-dust device design, stable working mode.
5). Suitable for vechile, petroleum, chemical, shipbuilding, turbine, architectural ornament, etc. industry.
6). Plasma Cutting-anywhere, anytime.
7). Plasma cutting systems are portable enough to carry to any jobsite.
8). Hook up the compressed air,grab the torch and start cutting right way.
9). Continuous output control-fucon the arc for different material thickness.
10). Touch start system-reliable plasma arc initiation without high frequency.
11). Rapid arc restrike-fast cutting through gaps, even expanded metal.
12). Front panel purge control-makes it easy to set the air flow rate without initiating the plasma arc.
Technical Parameters:
| Model | SkillCUT 65 |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 9.5 |
| Output Current Range (A) | 30-65 |
| Duty Cycle(%) | 35% |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 510*270*445 |
| Weight(KG) | 24 |
Cutting Samples:
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
Application:
Widely used on the plasma cutting of a variety of sheet materials such as carbon steel, stainless steel, aluminum, copper, etc.
FAQ:
Q1. Are you a factory?
A. Yes. We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
Q2. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you within one hour on working time. And you can aslo contact us by phone or skype.
Q3. What are your quality control procedures?
A. Wonderful group adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment .As an added measure, all clients receive production samples for approval.
Q4. Are there any special requirements for OEM purchases?
A. Yes.We require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q5: What is your warranty?
A: It is 12months. Usually we supply some spare parts for the customer repair with next order if there is any broken.
