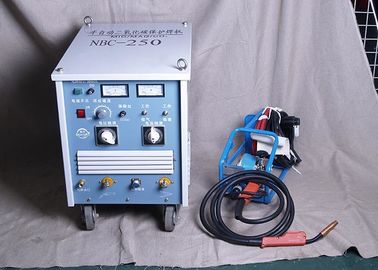

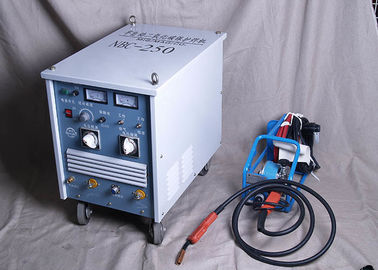

CO2 Gas Shielded Portable Welding MachineTapped Type MIG / MAG 250A For Carbon Steel

CO2 Gas Shielded Portable Welding MachineTapped Type MIG / MAG 250A For Carbon Steel

  • CO2 Gas Shielded Portable Welding MachineTapped Type MIG / MAG  250A For Carbon Steel
  • CO2 Gas Shielded Portable Welding MachineTapped Type MIG / MAG  250A For Carbon Steel
CO2 Gas Shielded Portable Welding MachineTapped Type MIG / MAG  250A For Carbon Steel
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: NBC-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Pilot Arc Current: 50-250A Rated Input Voltage: 3 Ph, 380V, 50Hz
Electrode Diameter: 0.8-1.0mm Cooling Method: Gas Cooling
Color: Blue+white Or Customized Condition: New
High Light:

welding machine equipment

,

arc welding equipment



Tapped Type MIG / MAG CO2 Gas Shielded Welding Machine 250A for Carbon Steel




1. Perfect ignition



2. Low-spatter and excellent well



3. Simple structure, convenient adjustment , fast reaction



4. Economcial and energy-saving .





Features:




1) Low cost, durable, high reliability and simple maintenance.



2) Deep penetration, small spatter, good weld formation.



3) No remote control cable, the remote control is installed on the wire feeder, it reduces the breakage and improves the maneuverability.



4) All-digital circuit control, improve the dynamic characteristics of the use of arc combustion stability, small spatter, beautiful weld formation.



5) Has the power network voltage compensation function, the arc penetration is increased and the penetration is strong.



6) Wire diameter is easy to choose, making welding easier.



7) Direct exchange with imported peripherals to make maintenance easier.



8) High voltage, slow wire feeding, and ablation ball circuit control, so that the success rage of arc up to more than 95%.



9) It is suitable for all position welding of carbon steel, low alloy steel and tool steel. It is widely used in pressure vessel, pipeline, steel structure, shipbuilding, automobile manufacturing and so on.





Application:



Can be mainly used to weld low carbon steel, low alloy steel and galvanized plate or weld stainless steel with mixed gas or flux-cored wires;



Can be widely used in automobiles, motorbikes, bicycles, containers, windows, doors, steel structures and industries of machinery and shipbuilding.





Technical Parameters:



Model NBC-250
Rated Input Voltage Three Phases 380V 50Hz
Rated Input Capacity (KVA) 9.5
Rated Current Adjust Range (A) 50-250
Rated Voltage Adjust Range (V) 17-38
Voltage Adjust Series 14
Rated Duty Cycle (%) 60
Weight (Kg) 135
Overall Dimension (mm×mm×mm) 650×420×660









1. Aluminum alloy thick plate MIG welding

2. Aluminum alloy MIG welding

3. Gas shielded welding in vertical position

4. Brass plate MIG braze welding

5. Flux-cored wire fillet welding

6. Flux-cored wire for tube plate welding

7. Galvanized plate MIG braze welding

8. MAG welding

9. Hrizontal welding





Main Market:



North America, South America , Southeast Asia, Middle East, Africa, etc.





FAQ:





Q1. Are you a factory?
A. Yes.
We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.

Q2. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you within one hour on working time. And you can aslo contact us by phone or skype.

Q3. What are your quality control procedures?
A. Wonderful group adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment .As an added measure, all clients receive production samples for approval.

Q4. Are there any special requirements for OEM purchases?
A. Yes.We require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.



Q5: What is your warranty?

A: It is 12months. Usually we supply some spare parts for the customer repair with next order if there is any broken.
