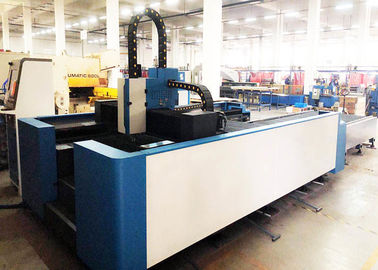

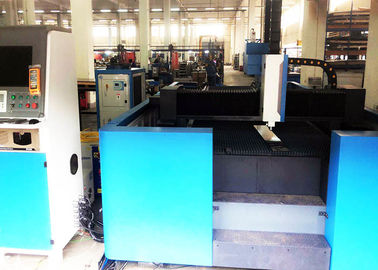

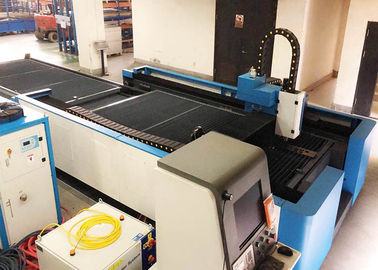

FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine

FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine

  • FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine
  • FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine
  • FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine
  • FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine
FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-3015-2000W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Effective Cutting Size: 1500X3000mm Table Type: Auotomatic Exchange Table
Cutting Material: Metal, Steel, Aluminum, Etc. Cutting Thickness: Max 16mm
Cooling Mode: Water Cooling Laser Type: Fiber Laser
High Light:

fiber laser cutting machine

,

industrial laser cutting machine



FL-3015-2000W Fiber Laser Cutting Machine with Auto Exchange Table



Characteristics:

1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.


2. High-performance laser source and stable operating system which make the best cutting effect.


3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.


4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.


5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.


6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.


7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.



8. Integrated casting machine body with higher stability for higher precision





Application Scope and Material:



1. Mild steel



2. Stainless steel



3. Aluminum



4. Copper



5. Galvanized sheet





Technical Parameters:



Item FL-3015-2000W
Working area (L*W) 3000×1500mm
X-axis running area 1500mm
Y-axis running area 3000mm
Z-axis running area 120mm/ 260mm for two tables
X/Y axis Repeated Positioning Precision ±0.05mm
Max. Running Speed 120m/min
Max. accelerated speed 1.2G
Machine weight 8000Kg
Max. load on working table 900kg
Phase Triphase
Voltage 380V
Frequency 50Hz/ 60Hz





Max Cutting Thickness:



Items IPG 2000W
Stainless steel (N2) 8mm
Carbon steel (O2) 16mm
Aluminum (N2) 8mm
Brass (N2) 6mm
Copper (O2) 4mm







Main Components:



FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine 0





Cutting Samples:



FL-3015-2000W CNC Laser Steel Cutting Machine , Automatic Exchange Table CNC Cutting Machine 1



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.

Contact Details
METALWORK MACHINERY (WUXI) CO.LTD

Contact Person: Mrs. Mary Ji

Tel: 0086-15370218084

Fax: 86-510-88531210
