| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | ISO, CE, CCC |
| Model Number: | DNT-75 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per month |
| Rated Capacity: | 50-200KVA | Voltage: | 380V Or Customized |
|---|---|---|---|
| Duty Cycle: | 50% | Welding Workpiece: | Metal Or Steel Products |
| Color: | Grey Or Blue Or White Or Customized | Warranty: | 1 Year |
| High Light: | spot welding equipment,resistance welding equipment |
||

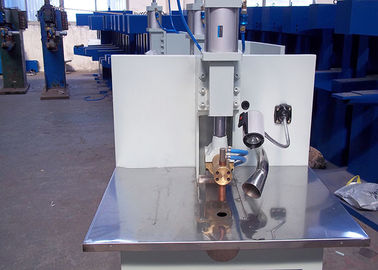

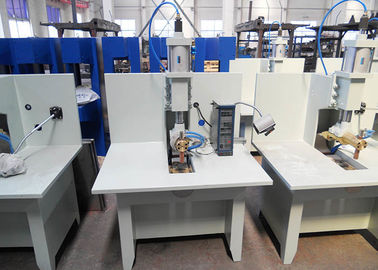

DNT Series Table Type Resistance Spot Welding Machine
Features:
1. Besides the basic characteristics of common spot welding machine, the lower welding electrode was designed as flat desk: welding range increase, the welded work piece stays very flat, not deformed.
2. The up welding electrode is designed as Multi-joint arm, welding easily, with out moving work piece, only move the welding gun, can weld any position in the range of the down flat table.
3. At the same time in the 200mm range the lower welding flat table can go up and down freely, by this way it is suitable for welding various shape and size of products.
4. Easily operating and freely, safe and reliable.
5. Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.
6. Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively
Technical Parameters:
| Parameters | Unit | Value |
| Rated Capacity | KVA | 50-200 |
| Input Power Source | ------ | AC 380-440V, 50/60Hz |
| Gas Source Pressure | Mpa | 0.3-0.6 |
| Electrode Pressure | N | 2200 |
| Welding Table Size (L x W) | mm | 1000 x 800 (Customized) |
| Welding Table Height | mm | 750-950 (200- stroke) |
| Welding Gun Type | ----- | Horizontal Welding Gun or Vertical Welding Gun (Optical) |
| Welding Gun Length | mm | 395 |
| Machine Diameter (L x W x H) | mm | 1000 x 1580 x 1900 |
| Machine Weight | kg | 900 |
Used for welding various shape and size of products with steel, Carbon Steel, Stainless Steel, Galvanized plate and so on.
Welding Samples:
Service:
Standard export wooden case packing or pack with customers' request.
Payment type: T/T(Confirm contract pay 30% deposit, pay the balance before delivery).
We can offer OEM or ODM service, according to customers requirements.
Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
