| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | SHL-3000/4000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Voltage: | 380V,3PH,50HZ Or Customerized | Welding Type: | MIG / SAW |
|---|---|---|---|
| Welding Diameter: | 300mm-2000mm | Usage: | Light Pole Welding |
| Workpiece Length: | 12m - 14m | Power: | 10 KW |
| High Light: | cut to length line machine,light pole production line |
||

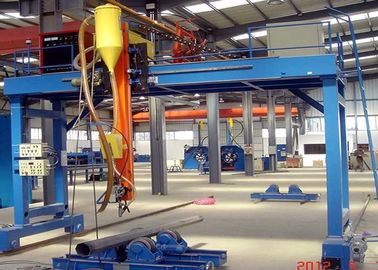

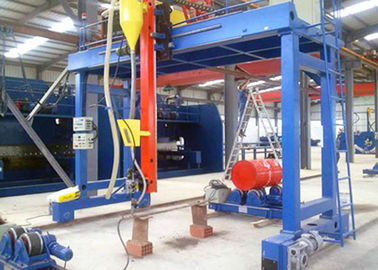

Gantry Type Light Pole Automatic Welding Machine for High Mast
This machine is specially designed for light pole automatic seam welding.
Welding method: Submerged Arc Welding/MIG Welding.
LIGHT POLE WELDING MACHINE is suitable for one shell type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
The machine includes the following items:
Machine body

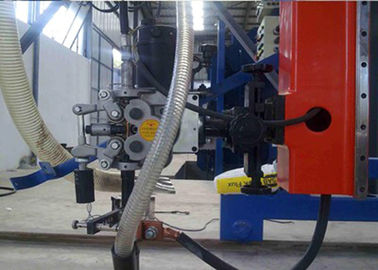

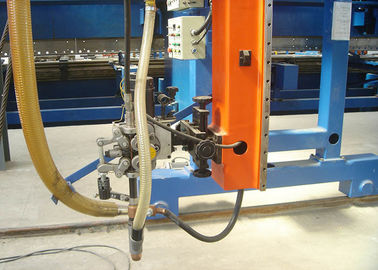

Submerged Arc Welding system, including welding wire feeding system
The flux recovering system
Structures:
This set of machine is mainly designed for the pole diameter above 500mm, normally 2 shells combined pole.
The machine includes the following items:
Technical Parameters:
| Gauge | 3000mm(or 4000mm) |
| Rail length | 15000mm or according requirements |
| Mast diameter | 300-2000mm |
| Mast length | 12000mm |
| Wire diameter | 3.2-5mm |
| Wire speed | 250-1200mm/min(bi-side driving, variable-frequency stepless speed control)The AC driver : Telemecanique |
| Power | Main motor power:10KW |
| Dimension | L2830×W4450×H3695 |
Woripiece Photos:
After-Sale Service:
♥ Warranty: one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
