Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting

Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting

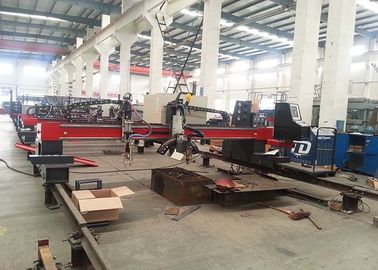

  • Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting

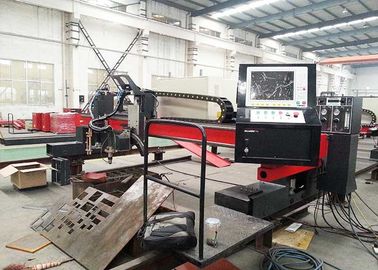

  • Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting

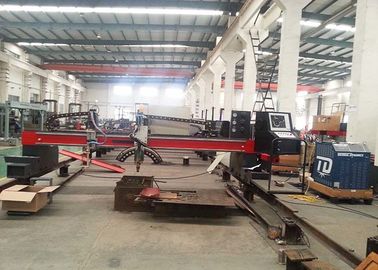

  • Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting
  • Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting
Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
CNC System: Hypertherm, Fangling, Etc. Plasma Source: Hypertherm, Victor, Etc.
Height Controller: Hongyuda, Hypertherm, Etc. Nesting Software: FastCAM, InteGNPS, Etc.
Cutting Mode: Plasma/Gas Motor: Panasonic
Reducer: Shimpo, Neugart
High Light:

cnc metal cutting machine

,

cnc steel cutting machine



Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting



CNC rotation beveling cutting machine is designed by our company to meet the need of the development of ship building. Rotary torch adopts the structure of rotation plus deflection, that's to say, transversal direction rotate+45, longitudinal direction deflect+45. The compound of rotation and deflection degree can achieve the geometric curve immobile and changeable bevel cutting .The initial point of both transversal rotation and longitudinal deflection are the work-piece cutting point. This structure not only protects from interfere of plasma cable and trachea but also can overlap cutting point and deflection point so that not lead to the deflection of the cutting degree. There're initial alignment and anti-collision devices on the cutting torch base, in this way, the plasma cutting torch work safer.


Features:

1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.

2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.

3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.

4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way.

5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.

6. Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.

Technical Parameters:


Model CNC3000 CNC3500 CNC4000 CNC5000 CNC6000 CNC7000 CNC8000
Effective Cutting Width (mm) 2200 2700 3200 4200 5200 6200 7200
Track Width (mm) 3000 3500 4000 5000 6000 7000 8000
Effective Cutting Length (m) 2m less than track length
Cutting Thickness(mm) Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma).
Basic components
Cutting Mode Plasma and Oxygen-fuel / flame
Drive Mode Servo motor, Dual-side
Cutting Torch Number Customization
Driving Motor Panasonic / Yaskawa
CNC Controller Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB

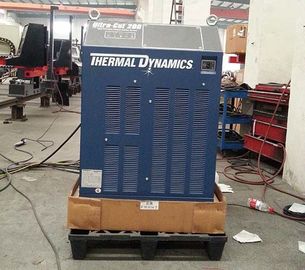

Available Plasma Power Hypertherm, Kjellberg, Thermal Dynamics, ESAB
Programming software Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional
Power voltage 3×380V±10% 50Hz / according to user's local condition
Operation language Multi language,Basic: English



Machine Details:


Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting 0 Machine body structure


1.Steel hollow beam design ensures good heat dissipation without deformation;
2. Box weldment structure process tempering ensures excellent rigidity and intensity;


3. Double drive adopts symmetrical structure.
Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting 1

Transmission

1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;

2. Gear box: SEW, high output torsion low noise.

Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting 2 Drive Model
Japan AC servo motor or Stepper motor Bi-side Driving.
Japan shimpo reducer or German technology planetary reducer.
Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting 3 Guide Rail
Process mode: High precision grinder;
Longitudinal rack accuracy: 7 grade;
Unit length: 1.0M or 2.0M.
Dual Side Drive Mode Panasonic CNC Plasma Gas Plate Cutter with Plasma Bevel Cutting 4

CNC System

1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.


Shanghai or American Brand CNC system is Optional
