| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | CNC1-1500X3000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |

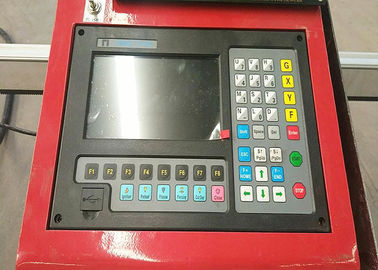

| CNC System: | Fangling FL-2100 | Cutting Gas: | Oxygen/ Acetylene/ Propane |
|---|---|---|---|
| Display: | LCD7" TFT Color Screen | Weight: | 90 Kg |
| Cutting Speed: | 0~6000mm/min | Rated Power: | 200W |
| High Light: | cnc steel cutting machine,plasma metal cutting machine |
||
200W Oxygen Acetylene Fangling-2100 CNC Plasma Cutting Machine With Torch Cable Holder
The CNC control of CNC1-1500X3000 mini cutting machine is the same as the big gantry CNC machine. It can cut kind of complex plane shapes. Oxy-fuel cutting and plasma cutting are all available. It’s very convenient and portable any time.
Customer can decide the machine span, rail length according to actual requirements(Pipe diameter and length etc.).
Machine tool and beam are of good quality aluminum alloy which is anti-deformed,durable,economical and decent after the disposal of stress relieving and surface oxidation.
100% high quality aluminum structure , mould-creating, one-time molding ,easier to install and dismantale, reduce the accident rish during working time.
Unique design structure largely reduce the friction and raise the steability which Greatly improve the accuracy.
Also, we here patent product help you find the the high quailty products and reliable supplier .
Application:
Portable CNC plasma cutting machine is a automatic and high efficiency cutting equipment. It is widley used in all kinds of carbon material,stainless steel and nonferrous metal sheet and thick metal plate.,
Technical Parameters:
| Model | CNC-1200 X 2000 | CNC-1500 X 3000 |
| Input Voltage | 220V/110V | 220V/110V |
| Power Supply Frequency | 50HZ / 60HZ | 50HZ / 60HZ |
| Rated Power Supply | 180W | 180W |
| LCD Dimension | 5.7 Inches | 5.7 Inches |
| Effective Cutting Width (X axis) | 1200mm | 1500mm |
| Effective Cutting Length (Y axis) | 2000/3000/6000mm | 2000/3000/6000mm |
| Cutting Speed | 0-2500mm per minute | 0-2500mm per minute |
| Plasma Cutting Thickness | 2--20mm (0.08''--0.79'') | 2--20mm (0.08''--0.79'') |
| Flame Cutting Thickness | 6--150mm (0.2''--5.9'') | 6--150mm (0.2''--5.9'') |
| Emergency Stop Button | No | Yes |
| Free (Off) Button | No | Yes |
| Cross Beam Length | 1700mm | 2200mm |
| Longitudinal Rail Length | 2500/4000/6000mm | 4000/6000mm |
| Longitudinal Rail Width | 196mm | 345mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 | 600*449*350 |
| Cross Beam Weight | 9.3kg | 12kg |
| Host Machine Weight | 26.7kg | 30kg |
| Longitudinal Rail Weight | 34.5kg | 53.5kg |
| Total Weight | 70.5kg (156 lbs ) | 95.5kg (211 lbs) |
| Gas Pressure | Max. 0.1Mpa (14.5 PSI ) | Max. 0.1Mpa (14.5 PSI ) |
| Oxygen Pressure | Max. 1.0Mpa (145 PSI ) | Max. 1.0Mpa (145 PSI ) |
| Cutting Gas | Acetylene/Propane/Methane | Acetylene/Propane/Methane |
| Plasma Power Source | THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
| Plasma Air | Only pressed Air | Only pressed Air |
| Plasma Air Pressure | Max. 0.8Mpa (116 PSI) | Max. 0.8Mpa (116 PSI) |
Cutting Samples:
FAQ:
| 1 | Q: Are you a factory or a trading company? A: We are a factory and trading company. |
|||
| 2 | Q: What are the advantages of your company? A: 1) Design team of all kinds of cutting tips cutting nozzle,welding tips nozzle, heating nozzle; 2) Complete stock of all kinds of cutting tip cuttin nozzle,welding tips welding nozzle,heating nozzle; 3) Professional and skilled production team; 4) More than 90% parts of Jinfeng are self-made cmponents; 5)We can supply free samples. |
|||
| 3 | Q: Can you provide OEM services? A: Yes,we can provide OEM services. |
|||
| 4 | Q: What about your company package and shipment? A: 1) Testing every piece for every order before shipment 2) Professional package for export; 3) Automatic CNC machines for production |
|||
| 5 | Q: What after-sales services does your company include? A: 1) Quick feedback for price,technology question; 2) Confident service after sales, we undetaken all cost if it's quality problem. |
|||
