Submerged Arc Welding Machine For H Beam Welding Custom Gauge Gantry Frame

Submerged Arc Welding Machine For H Beam Welding Custom Gauge Gantry Frame

    • Submerged Arc Welding Machine For H Beam Welding Custom Gauge Gantry Frame
  • Submerged Arc Welding Machine For H Beam Welding Custom Gauge Gantry Frame

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: LMH-4000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 1 x 20' GP
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Gauge Of Gantry Frame: 4000mm Or As You Request Width Of Flange: 200-800mm
    H Beam Height: 200-1500mm Usage: H Beam Welding
    Welding Type: Boat Type Welding Warranty: 12 Months
    High Light:

    cnc h beam drilling machine


    h beam assembly machine


    Automatic Gantry Type Submerged Arc Welding Machine for H Beam Welding

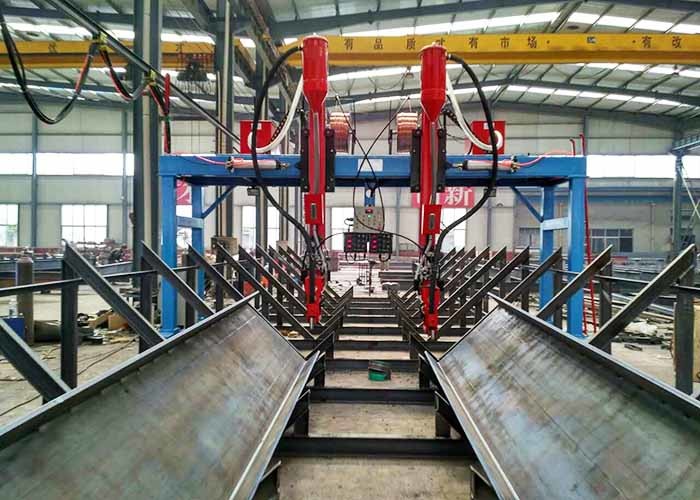

    1. This equipment is for comprehensive welding purpose, widely used in construction steel structure, vehicle beam and H beam welding automatic production. It applies PLC control method. It consists of gantry frame, two sets of Lincoln Ideal Arc DC-1000 power source, two sets of horizontal moving sliding board, two sets of electrical driving hanging torch, two sets of tracer mechanism, two sets of auto flux recycle device and control system. It has high efficiency and good welding quality. It is an ideal equipment to weld H and I shape beam.

    2. This equipment is used developed control technique, with good design, professional making, nice looking, qualified parts, reliable structure, high precision, fast respond, long life and safety.



    Product Details:



    1) The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.



    2) Each of walking beams is driven by a motor reducer, forming a double-drive system, which makes the operation smooth and reliable.



    3) The moving of gantry is frequency speed adjust controlled, the welding speed can be adjusted according to welding technology requirement.


    4) The electric control system consists of one electric control box and two operation panels. The electric control box is equipped on a walking beam, while the 2 operation panels are fixed on the front of upper platform. They are placed separately, which is convenient for operation.


    5) Cantilever type automatic welding machine.The gantry welding machine can weld back and forth to improve the work efficiency. According to the user needs to increase the height of the web.



    Technical Parameters:


    Model LMH-4000
    Web Height (mm) 200-2000
    Web Width(mm) 200-800
    Model of Welding machine Two sets of model MZ-1000B SAW welding machine
    Form of Welding Ship-welding
    Welding Speed(m/min) 0.15-1.0m/min
    Returning Speed(m/min) 3m/min
    Rails Span 2000mm
    Overall Power 10kw



    Submerged Arc Welding Machine For H Beam Welding Custom Gauge Gantry Frame 0




    1. Are you a trading company or factory?
    --- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


    2. Does your company supply and build the machines to suit customer's needs and specifications?
    --- Yes, we can custom-made the machine according to your requirements.


    3. What is your advantages over your competitors' machine?
    --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


    4. Does the machine come with a guarantee?
    --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


    5. Can I go to visit your factory?
    --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


    6. How to get quicker quotation?
    --- When you send us inquiry, please offer your requirement information:
    • What's the material of your H beam?

    • What's the min and max thickness of web plate?

    • What's the min and max thickness of flange plate?

    • What's the min and max flange width?

    • What's the min and max web height?
    • What’s the size of your workpiece?

    These information is helpful for us to choose suitable equipment solution and price quickly.
