Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter

Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter

  • Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter
Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-30-1000W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Effective Cutting Length: 3000mm Laser Type: Fiber Laser Cutting
Cutting Material: Metal, Steel, Aluminum, Etc. Cutting Thickness: Max 10mm
Laser Power: 1000W Cooling Mode: Water Cooling
Color: Blue+yellow, Red+black,or Customized Warranty: 1 Year
High Light:

pipe plasma cutting machine

,

laser tube cutting equipment



FL-30-1000W Tube / Pipe Fiber Laser Cutting Machine



Application of Laser Cutting for Metal Tube/Pipe Fiber Laser



PS: Whether you have a production line or small shop Oree Laser can help your company with a metal cutter that produces the best speed, operating cost, and quality cut for your unique application.

Today, fiber laser cutting machines offer small and large companies the ability to affordably laser cut metal such as stainless, alloy, and even aluminum materials. As a result, companies have a great opportunity to cost effectively and efficiently laser cut highly intricate metal parts, prototypes, and customized pieces in house.


A fiber lasers power, wavelength, spot size, beam quality and power ranges are the basic parameters that modify the fibers cutting dynamics. CW or continuous wave lasers are best for thicker or various sized metals whereas pulsed lasers are typically more cost effective for cutting thin metals at good speed.
Feel free to contact us if you would like to receive laser cut promo samples or you would like more information on any one of our laser machines.

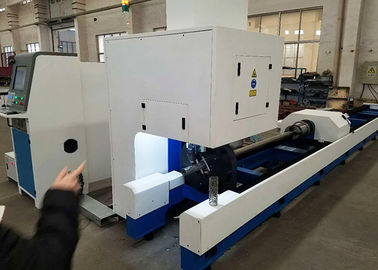

Product Structure:





Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter 0



Features:





  •  High-performance laser source, with stable operating system, optimize the cutting effect to the best;



  •  Automatic professional optical fiber laser cutting machine operating software, Simplify, intelligentize, automation;



  •  Multi-function feeding device, convenience operation, Lower manpower cost, improve efficiency at the same time;



  •  With perfect cooling, lubrication and dust removal system, make the whole machine run stable, efficient and durable;



  •  Good environmental adaptability and stable and excellent work in various environments;



  •  Suitable for cutting various kinds of profiles, such as long tubes, square tubes, rectangular tubes, elliptical tubes, and steel, etc;



  •  Fully automatic steel pneumatic chuck, instantly automatic clamping of the workpiece and adjustable air pressure, ensure the stability and reliability of the clamping force;



  •  Double servo design of chuck part;



  •  Pneumatic roller support, suitable for various pipes.



  •  500w, 750w, 1000w, 2000w 3000w IPG/RAYCUS fiber laser optional



  •  Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc



  •  With a specialized CAD / CAM automatic programming software, automatic nesting software to maximizing saving raw materials.



  •  Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm



  •  Japanese servo motor, with high speed and precision



Main Components:





Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter 1



Technical Parameters:



Laser Power 500W 700W 1000W
Laser Wave 1070nm 1070nm 1070nm
Pipe Cutting Length ≤3000mm ≤3000mm ≤3000mm
Round Pipe Diameter 20-200mm 20-200mm 20-200mm
Square Tube Side less than 160mm less than 160mm less than 160mm
Pipe Thickness 6mm 8mm 10mm
Laser Line Width 0.15mm 0.15mm 0.15mm
Location Precision ±0.03mm/m ±0.03mm/m ±0.03mm/m
Re-location Precision ±0.02mm ±0.02mm ±0.02mm
Power 380V/50Hz 380V/50Hz 380V/50Hz
Cooling Water cooling Water cooling Water cooling



Cutting Samples:



Customized Color Metal Tube Cutting Machine , 1000W 500W Tube CNC Pipe Cutter 2
