Hydraulic Foaming Machine, Solar Water Heater Production Line Related Machine

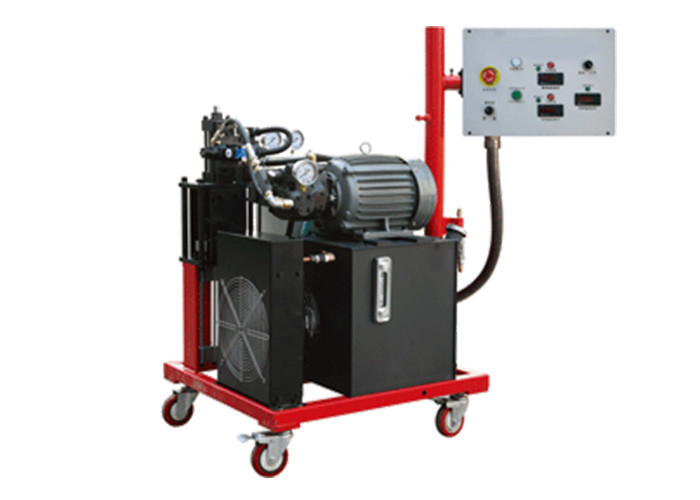

1. Hydraulic foaming machine

Product introduction:

The series adopts the most advanced SBP technology, which effectively ensures the stability of the raw material flow pressure, so that the mixing of the two-component raw materials is more uniform; the compact and simple optimized filling gun structure makes the wearing parts tend to zero, powerful The power has completely solved the problem of blocking guns that have long plagued small foaming equipment; the user-friendly operating platform makes the operation of the whole machine simpler and easy for anyone to master.



Technical parameter:

Power:

380V 50HZ 5000W

Working hydraulic pressure:

8-12Mpa

Maximum driving force of the system:

21 Mpa

Single component raw material working pressure:

10-15 Mpa

Raw material discharge volume:

4-8kg/min

The foaming system is the most advanced and durable foaming machine in the foaming field in China, and it will create more abundant benefits for your enterprise.

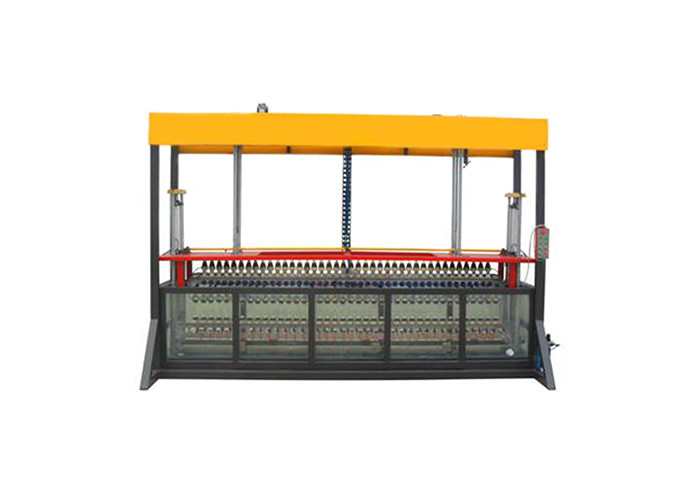

2. Automatic test slot

Introduction & Technical parameter:

The water tank water tank inner leak detector is to place the inner tank on the test preparation platform, and the initial  preparation work is completed. After all the holes are accurately in place, the water inlet test is started. After setting a certain time keeping pressure, the gas in the tank water tank is detected. Is the leak leaking? Is there a bubble? Accurately observe the location of specific leaks. Workers can further process according to their inspection results; or they can be sent to the next process and cycle according to this.

1) Rated voltage: 220VAC 50HZ

2) Rated power: 1.5KVA

3) Compressed air: 0.45Mpa

4) Lower cylinder range: 0~800 mm

5) Drive cylinder range: 0~700 mm

6) Adopt Taiwan's silver linear guide and cylinder drive.

7) The electrical part is warranted for one year.
8) The device has the functions of automatic plugging, moving, pressing down to the origin, and unloading. It has the choice of double station and single station, and has the advantages of high speed, high efficiency and less labor.





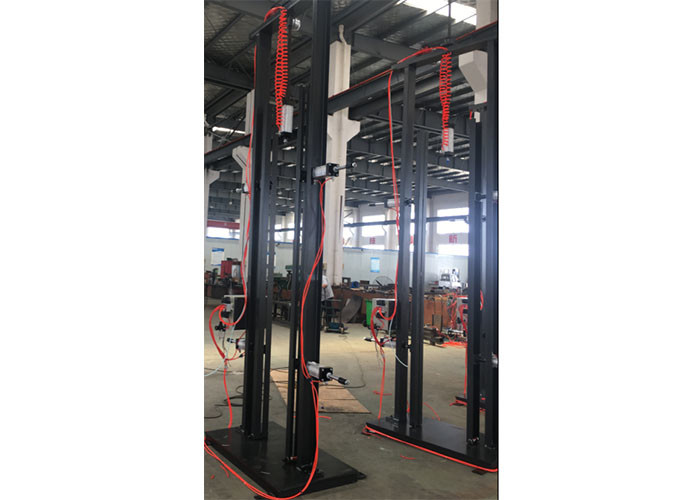

3. Covering machine

Working conditions:

1) Barrel diameter: Φ=220-480mm

2) Workpiece thickness: t=0.4-0.6mm

3) Maximum barrel length: L=2000mm

4) Material: pearl plate, stainless steel, galvanized plate, color steel plate, etc.

5) Rated voltage: 380V 50HZ

6) Rated power: 0.75KW

7) Compressed air pressure: 0.6Mpa



Operation process:

Adjust the screw to determine the effective stroke of the workpiece. ⇒ Manual assembly of the end cap. ⇒ Move the workpiece to the device. ⇒ The manual operation button is the cylinder pressure. ⇒ Manually offline.



Hydraulic Foaming Machine, Solar Water Heater Production Line Related Machine 0

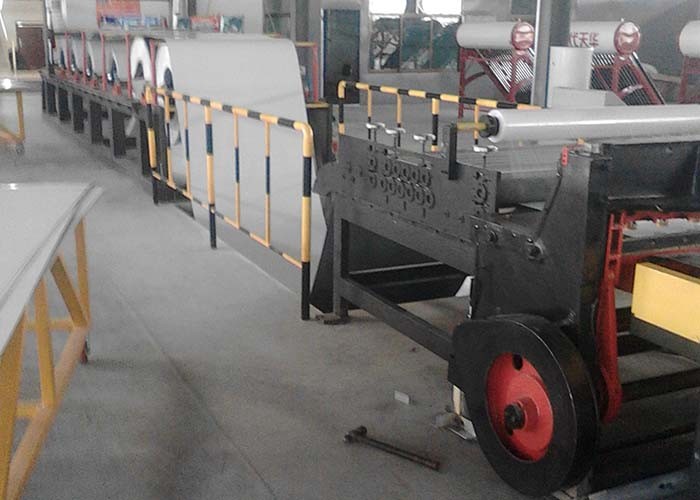

4. Automatic Discharging, Leveling, Counting and Cutting Shearing Laminating Unit

Technical parameter:

Processing material:

stainless steel SUS304-2B 316L, σb ≤725 N/mm2

Processing plate thickness:

δ = 0.4 ~ 1mm

Processing board width:

500mm-1300 mm

The outer diameter of the coil:

φ800mm ~ φ1500mm can be adjusted to accommodate the outer diameter of the coil within this range

The inner diameter of the coil:

φ508mm to meet the requirements of the conventional coil inner diameter assembly

Coil weight:

≤ 7T

Leveling accuracy:

≤ 1mm / m2

Cutting length:

500 ~ 3200mm

Length tolerance:

≤ ± 1mm / m

Diagonal tolerance:

≤±1mm/m

Production efficiency:

8 ~ 10 pieces / min (length 2000mm length)

Palletizing weight:

≤ 2T

Environmental power parameters:

380V/50 HZ, voltage fluctuation is less than 5%

The total power of the production line:

about 15kW

The production line running direction:

right into the left out (east into the west, the motor is on the north side, operating on the south side

The production line covers an area of:

20m × 6m



The components of a machine:

1) Laminating machine:

This series of machines consists of upper and lower rubber rollers, frame, power transmission and control device, and membrane support frame. It has the characteristics of flat film, no wrinkles, no bubbles and long service life. The heating technology inside the rubber roller, high heating efficiency and safety; the temperature and speed can be adjusted freely and applied to different materials. The product adopts steel roller pressure and laminating speed, which can be adjusted arbitrarily, and the machine operation is simple and convenient.

2) Conveyor belt:

After the shearing machine has finished cutting, the sheet conveyor conveys the sheet to the palletizing device.

The conveyor belt consists of a whole seamless non-slip belt, frame, motor, reducer and so on.

3) Palletizing trolley:

The steel frame is made and the countertop is flat. The caster foot is equipped with a universal wheel with brake function, which can move in all directions and is easy to operate.



Hydraulic Foaming Machine, Solar Water Heater Production Line Related Machine 1





Related machines:
