| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | LSW-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Voltage: | 380V Or Customized | Current: | 500A |
|---|---|---|---|
| Rated Duty Cycle: | 50-100% | Dimensions: | 1000-2500mm Long |
| Welding Type: | TIG | Usage: | Longitudinal Seam Welding Machine |
| High Light: | automatic pipe welding machine,automatic welding equipment |
||
High Speed Good Quality Automatic Argon Arc Longitudinal Seam TIG Welding Machine for Stainless Steel
Technical parameters:
|
Power supply: |
0.65Kw |
|
Workpiece thickness: |
Depend on the model of machine. |
|
Max.workpiece length: |
Depend on the model of machine. |
|
Diameter range: |
Depend on the model of machine. |
|
Pressure range: |
0.2Mpa-0.6Mpa |
|
Adjustable distance at X axis: |
100mm |
|
Adjustable distance at Y axis: |
100mm |
|
Production efficiency: |
500mm~600mm/min |
Product Description:
Automatic Longitudinal Seam Welder series are mainly used for welding longitudinal seam of thin sheet. It adopts cantilever type, and it is mainly composed of frame, fingers-type clamping unit, water-cooling mandrel, travelling carriage, crossing slider, wire feeder and torch holder. Fingers-type clamping unit owns special push from air cell, pressure of air cell is adjusted between 0 to 7kg/c㎡, and the distance of two banks of fingers between 5 to 20mm to satisfy various welding seam width; Water-cooling mandrel is designed according the work pieces' diameter and length to ensure the strength. The top of mandrel is inserted water-cooling insert with groove for heat-sink cooling. It is adjustable in mandrel height to handle various material thicknesses. Beam is fitted with travel carriage which is moved straightly by track and driving unit, variable speed.
Features:
1) Longitudinal seam welding machine is professionally used for straight seam welding of various metal products. It has strong maneuverability, simpleness, convenience and reliability. It has smooth welding, good consistency, high efficiency andbeautiful weld seam.
2) The equipment is mainly used in stainless steel sheet, carbon steel sheet galvanizes zinc steel,cylinder longitudinal seam automatic welding work.
3) The longitudinal seam welding for the cylinder is docked with the longitudinal seam of the flat plate. It is suitable forvarious welding methods such as gas shielded welding andargon arc welding autolysis (filling).
4) The equipment is consists of longitudinal seam welding machine body, welding power, and electrical control system.
5) The automatic welding machine uses horizontal welding structure, that is, the work piece position is relatively fixed, the torch driven by the motor reducer to move the form of horizontal movement in order to achieve flat welding seam straight seam welding.
6) The welding process control is controlled by the programmable controller (PLC), automatic and manual adjustment.
Model:
| Model | LSW-500 | LSW-800 | LSW-1000 | LSW-1300 | LSW-1500 | LSW-2000 |
| Max.workpiece length: | 500mm | 800mm | 1000mm | 1300mm | 1500mm | 2000mm |
| Workpiece thickness: | 0.3~1.5mm | 0.5~3.0mm | 0.5~3.0mm | 0.5~3.0mm | 0.5~5.0mm | 0.5~6.0mm |
| Diameter range: | 40~1000mm | 65~1100mm | 80~1200mm | 90~1500mm | 120~1800mm | 160~2000mm |
| Size:L*W*H (mm): | 1350*660*1400 | 1700*680*1800 | 1900*720*1850 | 2100*760*1950 | 2500*800*2100 | 3100*900*2100 |

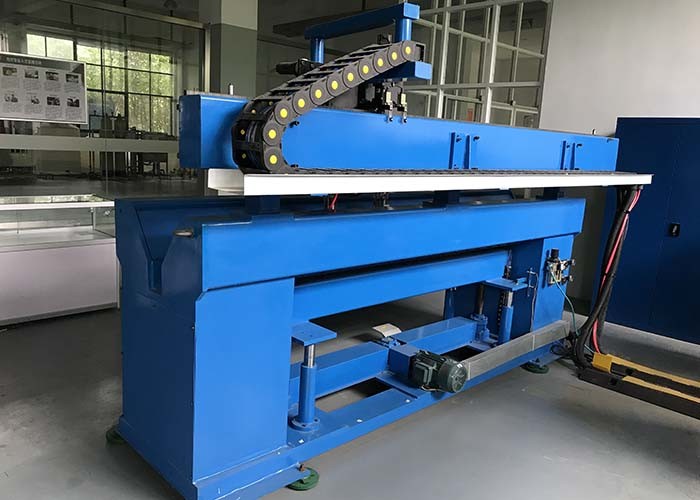

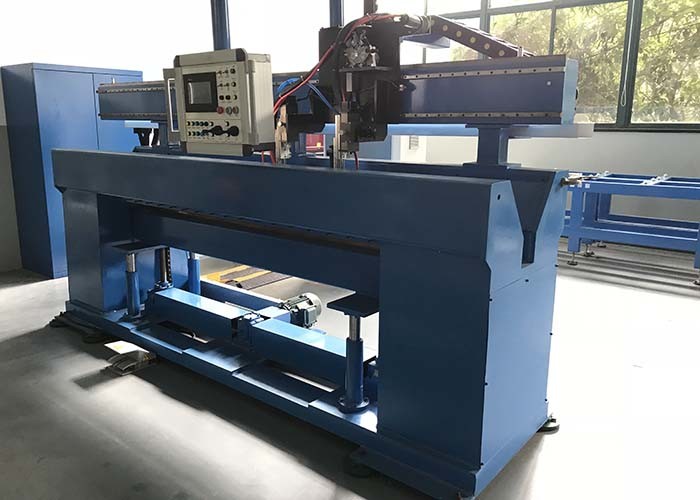

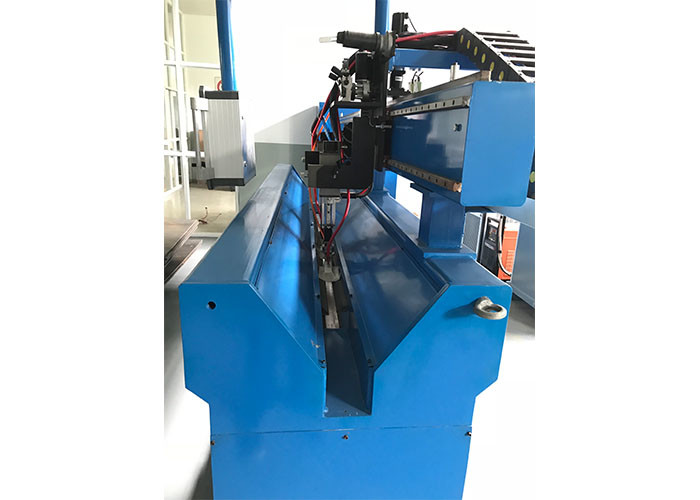

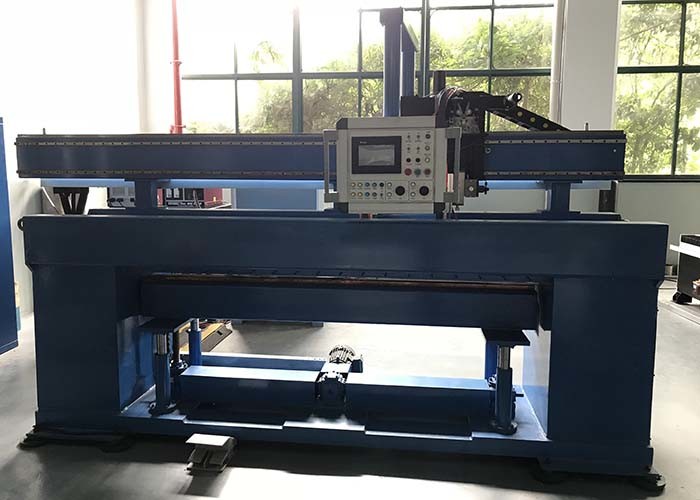

Details:
