|Place of Origin:||China|
|Certification:||CE, ISO, CCC|
|Minimum Order Quantity:||1 set|
|Packaging Details:||1 x 20' GP|
|Delivery Time:||40 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets per month|
|Gauge Of Gantry Frame:||4000mm Or As You Request||Width Of Flange:||200-800mm|
|H Beam Height:||200-1500mm||Usage:||H Beam Welding|
|Welding Type:||Boat Type Welding||Warranty:||12 Months|
cnc h beam drilling machine,
h beam welding line

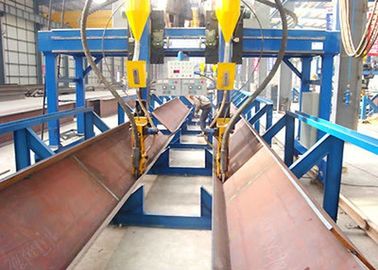

Automatic H Beam Steel Gantry Welding Machine
Gantry Welding Systems are linear motion systems specially designed for long length weldings. Typically, two independent linear axes are formed. If necessary, the number of axes can be increased and / or reduced. Gantry Welding Systems, which are designed in accordance with the application, also allow very efficient and high quality welding seams for structural beams.
• Integration of Plasma, Gas (MIG / MAG) and Submerged (SAW) weldings.
• Vibration-free linear motion on all axes thanks to well-finished surfaces.
• Limit switches are used to terminate all movements and standard safety precautions are taken.
• Braked and forced fan cooled motors are used.
Goods Supply Range:
• Gantry frame: upper platform, moving beam, vertical column
• Welding arm and tool carriage: 2 sets of welding arm, 2 sets of tool carriage
• Welding seam tracing device: 2 sets of arc-guiding frame, wire feeder, cross slide plates, and cylinders
• Submerged arc welding machine: 2 sets of MZ-1000B
• Welding flux recovery system: 2 sets of welding flux recovery machines, flux hopper, small hopper, conveying hoses
• Electric controlling assembly: electric controlling box, controlling box.
|Web Height (mm)||200-2000|
|Model of Welding machine||Two sets of model MZ-1000B SAW welding machine|
|Form of Welding||Ship-welding|
Finished Products Showing:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
