Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage

Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage

  • Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage
  • Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage
  • Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage
  • Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage
Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: DN-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Controller: SUN18B Voltage: 380V Or Customized
Duty Cycle: 50% Welding Workpiece: Metal Or Steel Products
Color: Grey Or Blue Or White Or Customized Warranty: 1 Year
High Light:

spot welding equipment

,

inverter welding machine



DN Series Resistance Spot Welding Machine





Features:



  •  Complete machine structure is Stable.



  •  Reasonable secondary circuit structure, high quality conductive material, which reduces



circuit impedance greatly and makes sure high efficiency and saving energy welding.



  •  For second current-carrying parts, the upper part is insulated. That is to avoid short-circuit



accident, when iron attached or you put the welding part on the under base.



  •  Microcomputer constant pressure/current controller, three sections discharging,can control



each welding time and welding current accurately, easy to operate.



  •  Adopts the circulating cooling water, avoid the waste of water, greatly reduce the amount of



cooling water.



  •  The adjustable speed of electrode reduce the shock to welded working parts when



compressing the welded working parts, and reduce the noise.



  •  It can reserve 15 welding procedure, different welding condition can reserved in the different



welding procedure. It can welding the different material accurately, conveniently and



smoothly.



  •  It is widely used in hardware manufacturing, traffic tools, household items, cars. And it can be



welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.



Technical Parameters:



Model Rated Capacity (KVA) Input Voltage Input Current (A) No-load Voltage(V) Duty Cycle Electrode Extension Welding Thickness (mm)
DN-25 25

(Single Phase)

380V

50Hz

65 3.5 50% 350 0.5+0.5-1.5+1.5
DN-35 35 92 3.8 350 0.5+0.5-2.5+2.5
DN-50 50 131 5 520 1+1-3+3
DN-75 75 197 6.3 560 1+1-3.5+3.5
DN-100 100 263 7.6 560 1.5+1.5-4+4
DN-150 150 395 8.4 560 1.5+1.5-5+5

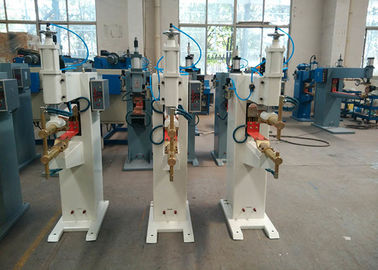

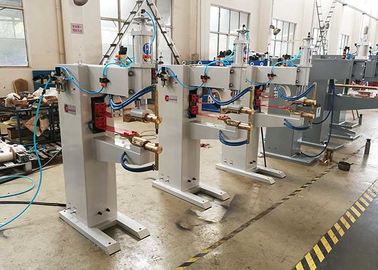

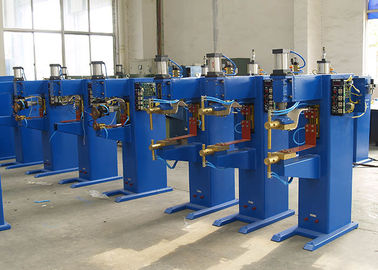

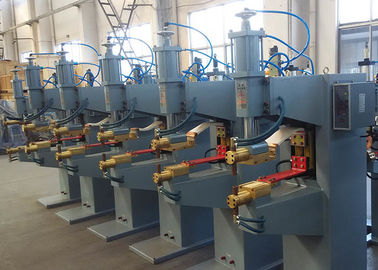

Reference Photo:



Spot Resistance Welding Machine Single Torch For Metal Products Customized Voltage 0
