Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine

    • Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine
    • Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine
    • Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine
    • Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine
  • Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: FL-3015-1000W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 1 x 20' GP
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Effective Cutting Size: 1500X3000mm Laser Type: Fiber Laser Cutting
    Cutting Material: Metal, Steel, Aluminum, Etc. Cutting Thickness: Max 12mm
    Color: Blue+yellow, Red+black,or Customized Warranty: 1 Year



    FL-3015-1000W Fiber Laser Cutting Machine



    FL-3015-1000W sheet metal laser cutting machine uses of gantry double drive structure,high precision rack rail drive, Baichu Cypcut CNC laser cutting system, high precision collision Laser cutting head,reinforced welding bed, the whole stable and reliable, flexible operation and simple, high-speed drilling to achieve cutting function, professional cutting all kinds of sheet metal, precision accessories, hardware tools, gifts and other metal materials.





    Application Scope and Material:



    1. Mild steel



    2. Stainless steel



    3. Aluminum



    4. Copper



    5. Galvanized sheet

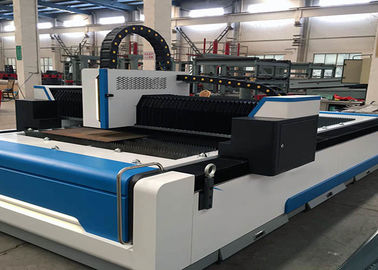

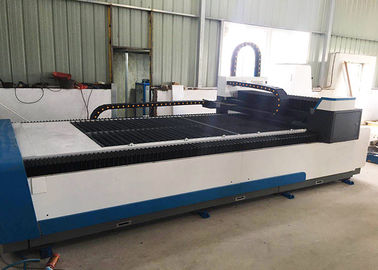

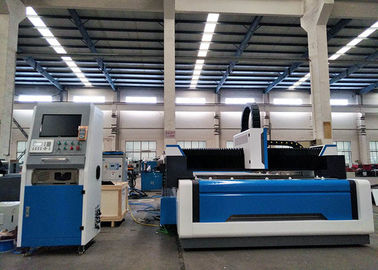

    Product Structure:



    Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine





    Features:



    •  1000W output power.



    •  Adopting gantry type structure with precise pinion and rack, dual-drive transmitting.



    •  Max. accelerated speed can reach 1.5g.



    •  X/Y repeated positioning accuracy can reach: ±0.03mm.



    •  Adopt Global No.1 ALPHA rack & pinion and speed reducer in the world.



    •  Adopting Switzerland advanced laser cutting head, position precisely, avoid undulate plate

    deformation, then gets qualified cutting seam.



    •  Adopting advanced laser, such as Racus, IPG, etc., stable performance, the useful life of key parts can reach 100 thousand hours.



    •  Max. cutting speed can reach 100m/min.



    •  Independent visual operating station, can adopt any place.



    •  Economic price and excellent aftersales service, within 24hours response.



    •  Low Processing costs, saving water, electricity and gas.

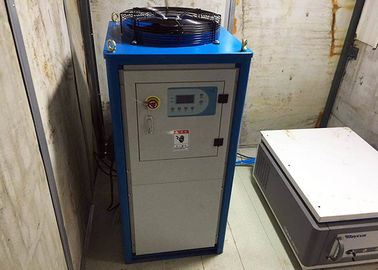

    Main Components:



    Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine



    Technical Parameters:



    Processing Area 3000mm X 1500mm
    Max Cutting Speed 100m/min
    Max accelerated 1.5G
    X/Y Positioning Accuracy 0.05mm/m
    X/Y Repeated Positioning Accuracy ±0.03mm
    Power supply 380V 50Hz
    Laser Power 500W-1200W
    Gross power <10KVA (not include fiber laser generator or water chiller)
    Machine running temperature 0℃-40℃
    Running humidity <90%
    Whole machine weight 4000kg
    Machine dimensions 4600*2750*1500mm
    Transmission Precise pinion and rack,dual-drive transmitting





    1000W Cutting Parameters:



    Material Thickness mm Speed m/min Gas
    Carbon 1 25—30 Air
    Carbon 2 6—8 O2
    Carbon 3 2.5—3.3 O2
    Carbon 4 2.3—2.5 O2
    Carbon 5 1.7—1.9 O2
    Carbon 6 1.2—1.4 O2
    Carbon 8 0.8—1.1 O2
    Carbon 10 0.7—1 O2
    Carbon 12 0.5—0.6 O2
    Material Thickness mm Speed m/min Gas
    Stainless steel 1 30—35 N2
    Stainless steel 2 5.5—7 N2
    Stainless steel 3 2.2—2.8 N2
    Stainless steel 4 1.2—1.5 N2
    Stainless steel 5 0.48—0.6 N2
    Material Thickness mm Speed m/min Gas
    Brass 1 9—10 N2
    Brass 2 3—3.5 N2
    Brass 3 0.8—1 N2
    Material Thickness mm Speed m/min Gas
    Copper 1.5 3.5—4 O2
    Copper 3 0.6—1 O2
    Material Thickness mm Speed m/min Gas
    Aluminum 1 18—25 N2
    Aluminum 2 5—7 N2
    Aluminum 3 2—2.5 N2





    Cutting Samples:



    Mild Steel Fiber CNC Laser Cutter , 1500 X 3000mm 1000W Fiber Laser Cutting Machine





    Questions:



    1. Are you a trading company or factory?
    --- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




    2. Does your company supply and build the machines to suit customer's needs and specifications?
    --- Yes, we can custom-made the machine according to your requirements.




    3. What is your advantages over your competitors' machine?
    --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




    4. Does the machine come with a guarantee?
    --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




    5. Can I go to visit your factory?
    --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




    6. How to get quicker quotation?
    --- When you send us inquiry, please offer your requirement information:
    • What kind of metal plate and the thickness?
    • What’s the size of your workpiece?

    These information is helpful for us to choose suitable equipment solution and price quickly.
