Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine

    • Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine
    • Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine
  • Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: RWS-series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Plywooden box
    Delivery Time: 60 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Robot Brand: Japan Kawasaki, Yaskawa, Etc. Welding Source Brand: Denmark Migatronic
    Tooling: Customized Welding Process: TIG / MIG / MAG
    Current: 350A / 500A Workpiece: Exhaust Pipe

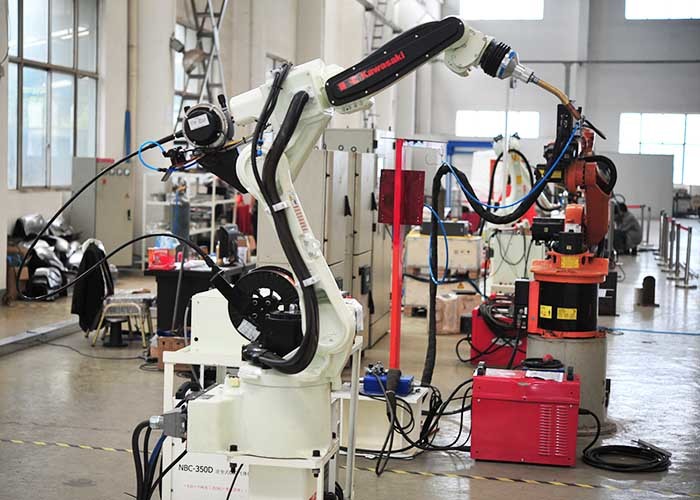

    Automatic Robotics Welding Station for Ehaust Pipe





    Robot Robot:



    BA series is the professional robot for welding, easy operation with simple demonstration teaching operation. There is LED touch color screen with excellent visual effect and easy operation on demonstration teaching device. Robot is connected with welding machine by a cable. Welding condition can be classified saved and one key for selection.



    Kawasaki BA series robot adopts E01 control box with compact outface, suitable operation system, rich function, easy maintenance and high scalability.



    Demo-teaching modes Simple demo-teaching AS language program
    Action modes Manual mode Dependent axis, basic coordinate system, tool coordinate system

    Reappearance mode



    Each axis / straight line, circle interpolation action
    Storage capacity   8MB
    Normal signal Out operation signal E-stop, out-keeping signal
    IP&OP 32+32



    6.5’ color LED screen, touch screen 640×480 Pixel. Adopts back light to see LED menu clearly.

    Operation system adopts WINDOWS CE. Interface display adopts drop-down menu to guarantee easy operation.





    Welding Machine:



    Omega400 welding source system

    Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine



    Migatronic Omega 400 is a kind full digital welding machine with strong functions, which is suitable all all levels of automatic functions - from big current welding to simple MAG welding, use the thin or thick wire and the operation is very simple. Once the main welding parameters set up, the integrated control panel will automatically set parameters. The performance of this series welding machine under standard configuration has been highlighted and with four wheels wire feeder and no leakage gas tube.


    Name Omega 400
    Input voltage 3×400V
    Fuse 20A
    Loading cycle 100% 40℃ 300A
    Loading cycle 60% 40℃ 370A
    Loading cycle 100% 20℃ 335A
    Loading cycle 60% 20℃ 400A
    Open circuit voltage 70V
    Current range 15-400A
    Protection Class IP23



    Application:

    Stainless or stainless steel exhaust pipe, exhaust flexible pipe, auto parts/auto engine/car exhaust pipe, motorcycle exhaust part pipe for muffler, etc.

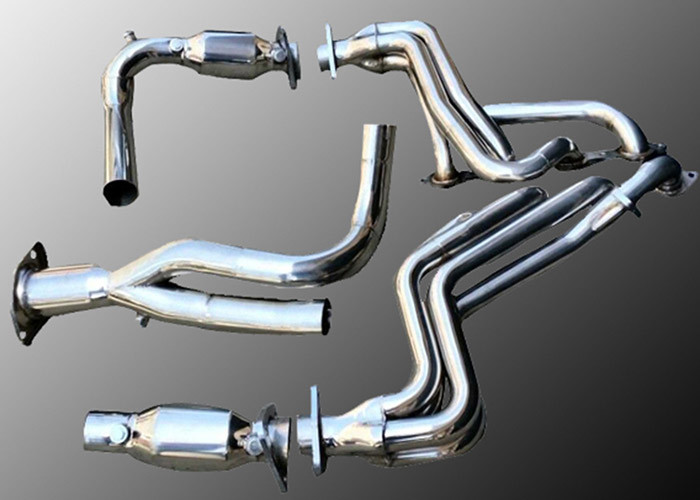

    Finished Products:



    Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine



    Stainless Steel Robotic Automation Systems , Auto Exhaust Pipe Robotic Arm Welding Machine
