5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine

    • 5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine
    • 5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine
    • 5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine
    • 5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine
  • 5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: CNC4- Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 1 x 40' GP
    Delivery Time: 60 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Voltage: 110V/220V/380V Effective Cutting Length: 6000mm / 12000mm
    Cutting Mode: Flame Or Plasma Cutting Application: Industrial Metal Cutting
    Flame Cutting Thickness: 6-150mm Plasma Cutting Thickness: Depends On Plasma Source

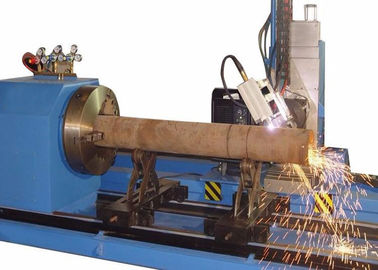

    CNC4-400 CNC Plasma / Flame Pipe / Tube Intersecting Line Cutting Machine





    Specifications

    CNC Plasma and Flame Pipe Cutting Machine
    CNC Control System
    High precision
    Long life





    The machine adopts numerical control with 2~7 control shafts according to different requirement to meet working various machine models. we also can renew software and hardware according to user´s need. Each type can realize linkage of control shafts and has functions of cutting different intersecting line, intersecting pore, groove of fixed-angle and groove of fixed-point.





    Features:



    •  Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
    •  Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
    •  Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
    •  Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.



    Technical Parameters:



    Model CNC4-400
    Pipe cutting diameter 40-400mm
    Cutting mode Plasma only, flame only ,plasma and flame
    Cutting speed 0-4000mm per minute
    Plasma cut thickness Depend on current of plasma power source
    Flame cut thickness 5-60mm
    Groove angle 0-45°

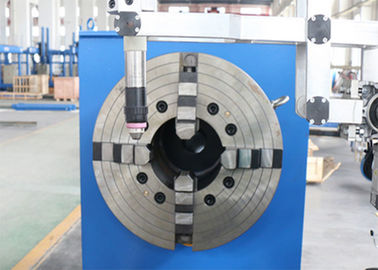

    Pipe Chuck 3-jaw chuck
    Cutting length 5000mm (Can be as required)
    Numberof Control Axes 2--6
    Height range 0-150mm
    Height adjuster mode Automatic(include 24DC geared motor)
    Flame Ignition device Auto ignition
    Accurate ±0.03mm
    Power source 220V,380V/50HZ
    Driving mode Stepper mode,dual driving
    Operation system Starfire control system
    LCD Display 7.0 inch Touch screen
    Language version English/Chinese
    File transmission USB transmission
    Flame mode Gas source Acetylene/Propane with oxygen
    Plasma mode Gas source 0.4-0.5MPa pressed air
    Warranty 1 Year
    Plasma Arc strike Untouched
    Certificate CE ISO
    Packing Plywood case or as required

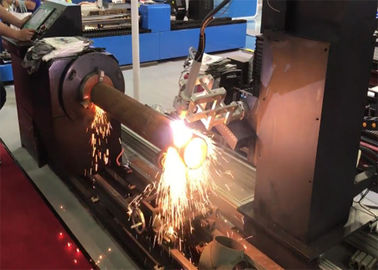

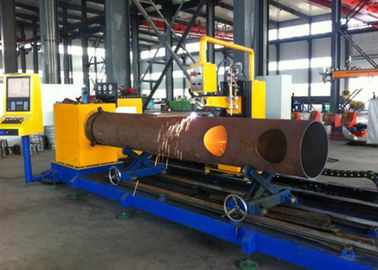

    Cutting Samples:



    5-Axis CNC Intersecting Line Steel Tube Cutting Machine / 6-150mm Pipe Laser Cutting Machine





    Questions:





    1. Are you a trading company or factory?
    --- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




    2. Does your company supply and build the machines to suit customer's needs and specifications?
    --- Yes, we can custom-made the machine according to your requirements.




    3. What is your advantages over your competitors' machine?
    --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




    4. Does the machine come with a guarantee?
    --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




    5. Can I go to visit your factory?
    --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




    6. How to get quicker quotation?
    --- When you send us inquiry, please offer your requirement information:
    • What kind of metal plate and the thickness?

    • What the min and max diameter of your pipe?

    • What’s the min and max length of your pipe?

    • Do you need bevel cutting?



    These information is helpful for us to choose suitable equipment solution and price quickly.
