| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | DNW-150KVA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden package |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Usage: | Wire Mesh Welding | Voltage: | 3 Ph, 380V, 50Hz |
|---|---|---|---|
| Rated Capacity: | 150KVA | Rated Duty Cycyle: | 20% |
| Color: | Green, Blue, Grey Or Customized | Warranty: | 1 Year |
| Function: | Spot Welding | ||
| High Light: | Automatic Refrigerator Condenser Wire Welding Machine,150KVA Automatic Wire Welding Machine,380V Automatic Wire Welding Machine |
||
Application:
This multi point row welding machine is applicable to the special equipment for welding evaporator, condenser and grid frame of refrigerator in the refrigeration industry.
Description:
| product name: | multi head spot welding machine |
| power: | 150kva |
| weight: | 900kgs |
| size: | 1980*900mm*150mm |
| usage | weld wire mesh,Refrigerator condenser |
Technical Parameters:
| Model | DNW-150 |
| Rated Input Voltage | Three Phases 380V 50HZ |
| Output no duty voltage | 10.8V |
| Peak output current | 36KA |
| Duty cycle | 20% |
| Cooling water flow | 60L/min |
| Upper electrode stroke | 30mm |
| Down electrode stroke | 30mm |
| Width of upper and lower electrode base | 100mm |
| Upper and lower electrode seat water way | dia 10mm |
| Install electrode plate specification | 220*70*20mm |
| Electrode Pressure | 628KG |
| Welding Capacity | φ8pipe+φ1.2wire:22pairs |
| Air pressure | 0.5-0.8Mpa/cm2 |
| Out dimension | 600X1500X1900mm |
| Machine weight | about 900KG |

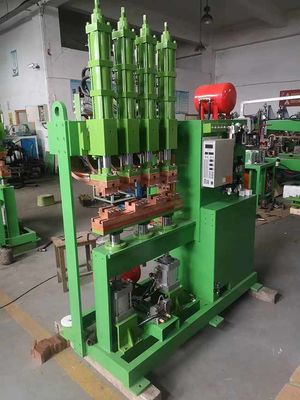

Multi Head Spot Wire Mesh Welding Machine Features:
1. The pressure cylinder adopts a 3 * 80 diameter fast cylinder, controlled by a Taiwan Yadeke solenoid valve, and is conductive with red copper (T2 copper). At the conductive contact parts, there will be cooling water pipes for cooling. The electrode is made of chrome-zirconium copper, with good conductivity and high hardness.
2. The transformer is designed with low impedance, and the secondary circuit is made of high-quality conductive materials to reduce internal friction. Small input is obtained to obtain larger welding current.
3. Reasonable operation structure; Each group adopts three-layer pressurized air cylinder, which is fast in action, saves gas and energy, and can be adjusted up and down, left and right respectively. The adjustment electrode is very convenient to install.
Automatic Refrigerator Condenser Wire Mesh Welding Machine Working Viedo (Click below picture):
Workpiece of Automatic Refrigerator Condenser Mesh Spot Welding Machine:
