| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | HFW-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Voltage: | 380V Or Customized | Current: | 500A |
|---|---|---|---|
| Welding Type: | TIG / MIG | Usage: | Circular Seam Welding Machine |
| Rated Duty Cycle: | 50-100% | Dimensions: | ≤3000mm Long |
| High Light: | automated welding machine,automatic welding equipment |
||

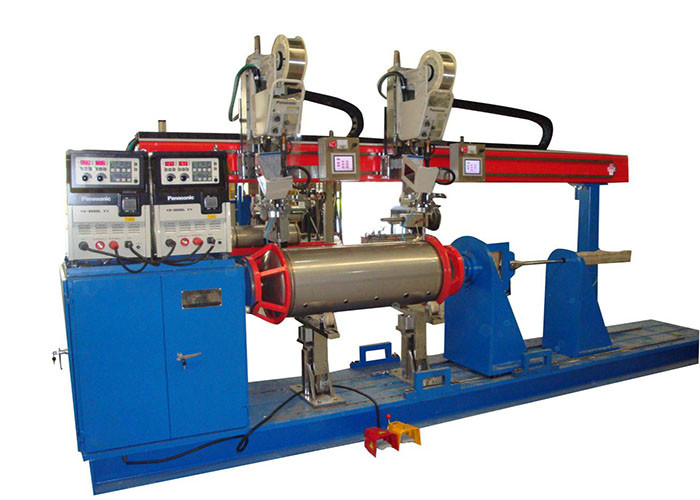

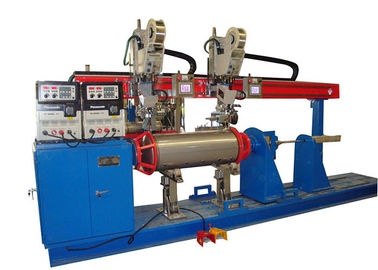

Circular Seam Automatic Welding Machine For Pipe 500A Aluminum Brass Plasma
Introduction:
It is the welding assistance equipment, whose machine head is equipped on the top of the boom, which can be elevated and retracted horizontal free by the rack and pinion. This machine can be used together with welding rotator, welding positioner and achieves the tank longitudinal and circle seam welding. According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device. It has the structures of fixed type, fixed with rotation and moveable with rotation type.
Applications:
High quality and low distortion automatic longitudinal welding of the metallic cylinders and aligned plates made with stainless steel, iron, aluminum and brass
Features:
1. Automatic Argon Arc(Plasma) Circular Seam Welding Machine mainly includes two parts: specially designed Circular Seam Automatic Machinery Part and Standard Welding Source Part.
2. According to different welding requirement of various material, the Automatic Circular Seam Machinery Part can be designed into two kinds: Plate Type pressing Mechanism and Keyboard Type Copper Pressing Mechanism, to get the regular and stable clamping and cooling effect.
3. Standard welding Source Part includes TIG (tungsten inert gas shielded arc welding), MIG (metal inert gas shielded arc welding) MAG (metal active gas arc welding) SAW (submerged arc welding) PAW (plasma arc welding), etc. Automatic Machinery Part can be equipped by the standard welding source manufactured by our company , can also work with other well-known brands of welding power.
4. Automatic Machinery Part is adopted PLC control, DC motor drive has stepless adjustable welding speed and interfaces with any power source.
5. Weld Seam back up design has a groove to form a weld on the bottom of a welded plate and provide consistent gas flow to the back of the weld, to assure the stable gas shield and ensure double-side forming in single side welding.
6. Automatic Circular Seam welding Machine is mainly used for the high quality and low distortion automatic circular welding, such as metallic cylinders and aligned plates made with stainless steel, iron, aluminum and brass, etc.
7. Compared with the traditional manual welding way , high welding efficiency and speed, well welding quality and good consistency.
Technical Parameters:
| Model | HFW-1000 | HFW-1500 | HFW-2000 | HFW-2500 | HFW-3000 |
| Welding length (mm) | ≤1000 | ≤1500 | ≤2000 | ≤2500 | ≤3000 |
| Min. cylinder diameter (mm) | φ30-φ300 | φ50-φ400 | φ100-φ500 | φ150-φ800 | φ200-φ1000 |
| Rotation speed (rpm) | 0.125-2.5 | 0.075-1.5 | 0.075-1.5 | 0.05-1 | 0.05-1 |
| Speed control | Various Frequency Drive | ||||
| Work piece clamp method | Pneumatic | ||||
