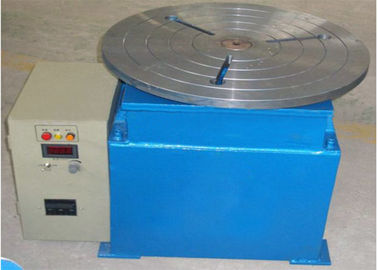

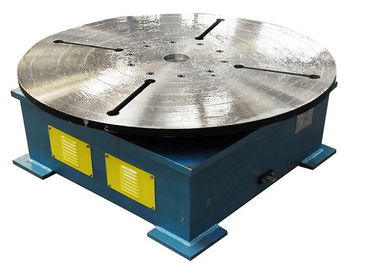

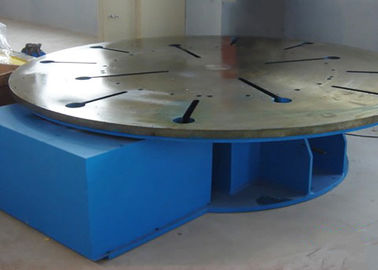

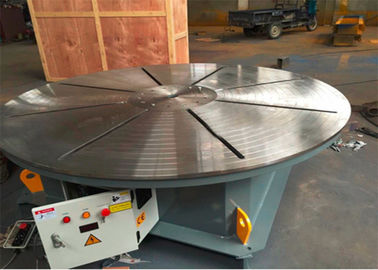

HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color

HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color

  • HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color
  • HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color
  • HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color
  • HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color
  • HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color
HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HBT- series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Mainframe naked in container, electrical control box in plywooden boxes
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Weight: 100KG-50000KG Usage: Horizontal Rotation For Welding
Diameter Of Table: 400-4000mm Voltage: 3 Ph, 380V, 50Hz
Color: Blue, Grey Or Customized Warranty: 1 Year
High Light:

pipeline welding machines

,

pipeline welding equipment



HBT Horizontal Rotation Welding Table





We have many types of turntable, for example.HB01,HB03, HB10 and so on. Also we can design the machine according to the customer's workpiece. You can decide the speed of the turn.



Features:



1. Using together with automatic welding robot arm.


2. Other voltage like 220V / 380V 50Hz are all available.


3. Rotation speed is 0.05~05. rpm in digital readout on the electric box.


4. Welding Turn Table can rotate 360° by VFD control,operation on hand control box.


5. Table size 2000 mm with special hole in the table centre requested by customers.


6. Controlled is remote-control box, optional foot switch or tilting angle if you wanted.


7. With M24 T- shape bolt,you can fix your work piece on the table for rotation and welding.





Technical Parameters:



Model HBT1 HBT6 HBT12 HBT20 HBT30 HBT50 HBT80 HBT100 HBT150 HBT200 HBT300 HBT500
Rated loading kg 100 600 1200 2000 3000 5000 8000 10000 15000 20000 30000 50000
Revolve speed rpm 0.1-1 0.1-1.1 0.1-1 0.09-0.9 0.08-0.8 0.07-0.7 0.06-0.6 0.06-0.6 0.05-0.5 0.05-0.5 0.04-0.4 0.04-0.4
Tilt speed rpm 2 0.8 0.5 0.4 0.3 0.2 0.14 0.14 0.14 0.14 0.10 0.10
Work-table dia. mm φ400 φ800 φ1000 φ1200 φ1400 φ1600 φ2000 φ2000 φ2200 φ2500 φ3000 φ4000

Max.eccentricity

distance mm

100 150 200 250 250 250 200 200 200 200 200 200
Max gravity center distance mm 150 250 250 300 400 400 400 400 500 630 630 800
Revolving motor power kW 0.06 0.37 0.75 1.1 1.5 1.5 2.2 3 3 4 4 5.5
Tilting motor power kW 0.18 0.55 1.1 1.5 2.2 3 4 4 5.5 7.5 7.5 11
Revolve dia. At 90°mm ≤600 ≤1500 ≤1500 ≤2000 ≤2300 ≤2800 ≤3200 ≤3200 ≤3400 ≤3400 ≤4200 ≤5700
Dimension L mm 740 1300 1500 1700 2046 2400 2900 2900 3525 3675 4200 5600
H mm 420 900 1000 1200 1400 1860 1970 1970 2252 2270 2700 3600
B mm 527 1000 1200 1200 1680 1730 2260 2260 2270 2750 3300 4400
Equipment weight kg 70 700 1000 2000 3350 4300 8000 8200 14000 17000 20000 27000
Speed adjusting way Revote speed is VFD (COMMON BREAK MOTOR)
Tilting speed is fixed (Ordinary brake motor)


























































































Application:


1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job



HBT Horizontal Automatic Pipe Welding Machine Rotation Welding Table Customized Color 0
