Cantilever Type CNC Plasma and Flame Metal Cutting Machine with Hypertherm System

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC3-1500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc metal cutting machine

,

plasma metal cutting machine

CNC System:
Hypertherm, Fangling, Etc.
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Cutting Mode:
Plasma/Flame
Nesting Software:
FastCAM, InteGNPS, Etc.
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
CNC System:
Hypertherm, Fangling, Etc.
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Cutting Mode:
Plasma/Flame
Nesting Software:
FastCAM, InteGNPS, Etc.
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
Cantilever Type CNC Plasma and Flame Metal Cutting Machine with Hypertherm System



Cantilever Type CNC Plasma and Flame Metal Cutting Machine with Hypertherm System





Application Scope and Material:



CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.



1. Hardly oxidized metal



2. Easily oxidized



3. Stainless steel



4. Brass, aluminum, and zinc

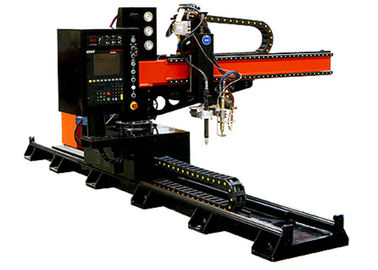

Cantilever Type CNC Plasma and Flame Metal Cutting Machine with Hypertherm System 0





Features:



  •  Economic and affordable for customer's basic requirements.



  •  Configure flame and plasma cutting mode for customer’s selection.



  •  Configure plasma power upto upto Hypertherm HPR260XD or Victor Thermal Dynamics Ultracut200.



  •  Drive system adopts Panasonic digital AC servo system.



  •  CNC system can be equipped with START FL-CNC, EDGE series or according to requests of customers



  •  Flexible cutting size available or customize according to customer's needs.



  •  Automatic ignition,perforation and capacitance height-regulating,plasma cutting equipped with utomatic arc voltage regulating device.



  •  Simple structure ,easy in installation and maintation.



  •  Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



  •  Compact design, can cut by complex 2D shapes and supports oxy-fuel and plasma cutting. Is an ideal equipment for the small and medium-scale enterprises and applies to cut the industrial metallic and nonferrous metal material both indoors and outdoors.



  •  The table CNC cutting machine is equiped with FastCAM or InteGNPS or other programming software,which based on AutoCAD drawing. the software is easy to learn and can automatically convert the AutoCAD drawings into G-code file, and then transfer G-gode file into CNC cutting machine by USB key.



  •  The crossbeam frame adopts single arm rotary structure,which is high strength,rigidity design with removal stress processing,and applies steel guide rail compounded with straight guide rail, which has such functions as good stability and high precision and not distorfion;







Technical Parameters:



Model CNC3-1500
Effective cutting width 1500mm
Effective cutting length 3000-6000mm
Cutting thickness Flame: 6-150mm; Plasma determined by selected cutting power
Cutting speed 50-1000mm/min
Returning speed 50-3000mm/min
Cutting roughness Ra12.5mm
Cutting precision ±0.5mm/m



Cantilever Type CNC Plasma and Flame Metal Cutting Machine with Hypertherm System 1





Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
