1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter

1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter

  • 1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter
  • 1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter
  • 1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter
  • 1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter
  • 1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter
1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1200X2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Effective Cutting Size: 1200X2000mm Cutting Gas: Oxygen/ Acetylene/ Propane
Display: LCD 7" TFT Color Screen Weight: 90 Kg
Cutting Speed: 0~6000mm/min Rated Power: 200W
High Light:

cnc metal cutting machine

,

plasma metal cutting machine





1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter



Model CNC-1200 X 2000 CNC-1500 X 3000
Input Voltage 220V/110V 220V/110V
Power Supply Frequency 50HZ / 60HZ 50HZ / 60HZ
Rated Power Supply 180W 180W
LCD Dimension 5.7 Inches 5.7 Inches
Effective Cutting Width (X axis) 1200mm 1500mm
Effective Cutting Length (Y axis) 2000/3000/6000mm 2000/3000/6000mm
Cutting Speed 0-2500mm per minute 0-2500mm per minute
Plasma Cutting Thickness 2--20mm (0.08''--0.79'') 2--20mm (0.08''--0.79'')
Flame Cutting Thickness 6--150mm (0.2''--5.9'') 6--150mm (0.2''--5.9'')
Emergency Stop Button No Yes
Free (Off) Button No Yes
Cross Beam Length 1700mm 2200mm
Longitudinal Rail Length 2500/4000/6000mm 4000/6000mm
Longitudinal Rail Width 196mm 345mm
Host Machine Dimension (L*W*H mm) 508*344*305 600*449*350
Cross Beam Weight 9.3kg 12kg
Host Machine Weight 26.7kg 30kg
Longitudinal Rail Weight 34.5kg 53.5kg
Total Weight 70.5kg (156 lbs ) 95.5kg (211 lbs)
Gas Pressure Max. 0.1Mpa (14.5 PSI ) Max. 0.1Mpa (14.5 PSI )
Oxygen Pressure Max. 1.0Mpa (145 PSI ) Max. 1.0Mpa (145 PSI )
Cutting Gas Acetylene/Propane/Methane Acetylene/Propane/Methane
Plasma Power Source THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
Plasma Air Only pressed Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa (116 PSI) Max. 0.8Mpa (116 PSI)



Machine pictures:

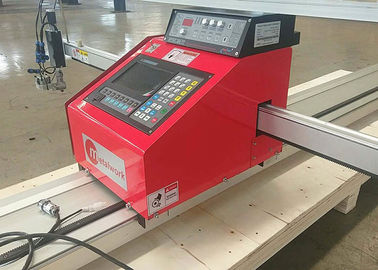

FL-2100 control system + XPTHC-300PT height adjusting controller



1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter 0

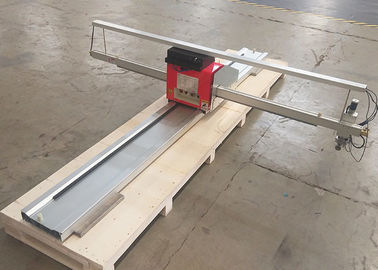

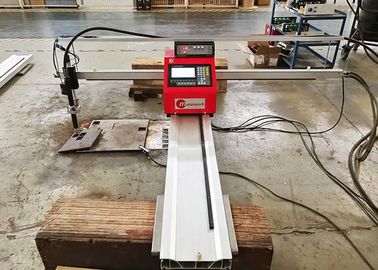

Plasma cutting head



1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter 1

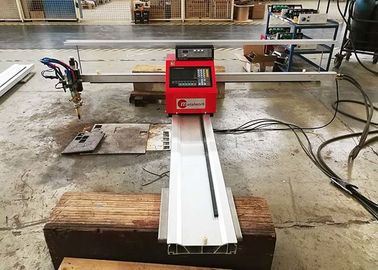

Flame cutting head



1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter 2



Linear rail



1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter 3

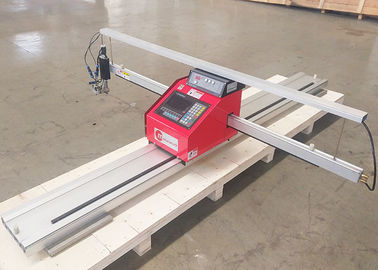

1. Multi use with lowest costs

1500*300 0mm 100A portable stainless steel cnc plasma cutting machine

Adopt Chinese Fangling control system, it can cut arbitrary complex planar shape, high efficiency, low cost.



2. Convinient data input

1200*2000mm 100A portable stainless steel cnc plasma cutting machine

The machine can read Auto CAD format file directly and turn into cutting program with humanized human machine interface and powerful automatic programming system with material software.



3. Accessible operation1200*2000mm 100A portable stainless steel cnc plasma cutting machine

This machine has special features of compact structure, beautiful style, light weight and convenient movement. It can cut by manual control, and also can cut automatically with stable movement and high cutting accuracy.



4. Intelligent Core1500*3000mm 100A portable stainless steel cnc plasma cutting machine

The machine adopts telescopic boom type structure, X, Y axis both adopt Aviation aluminum alloy material, high accuracy, no deformation and good appearance.



5. Standard model 1500*3000mm 100A portable stainless steel cnc plasma cutting machine

JX1525: 1500*2500mm; JX1530: 1500*3000mm



1200x2000mm Carbon/Mild Steel/Iron Plate Automatic Mini CNC Gas Oxygen/Acetylene/Propane Plasma Cutter 4





FAQ:







  1   Q: Are you a factory or a trading company?
A: We are a factory and trading company.


  2   Q: What are the advantages of your company?
A:1) Design team of all kinds of cutting tips cutting nozzle,welding tips nozzle, heating nozzle;

2) Complete stock of all kinds of cutting tip cuttin nozzle,welding tips welding nozzle,heating nozzle;

3) Professional and skilled production team;

4) More than 90% parts of Jinfeng are self-made cmponents;

5)We can supply free samples.



  3   Q: Can you provide OEM services?
A: Yes,we can provide OEM services.


  4   Q: What about your company package and shipment?
A:1) Testing every piece for every order before shipment

2) Professional package for export;

3) Automatic CNC machines for production



  5   Q: What after-sales services does your company include?
A:1) Quick feedback for price,technology question;

2) Confident service after sales, we undetaken all cost if it's quality problem.
