High Precision automatic welding equipment , Steel Wire Mesh Spot Welding Machine

DN Series Steel Wire Mesh Spot Welding Machine

AC Water-Cooling Resistance Spot Welding Machine (DN Series)

1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance
AC Water-Cooling Spot Welding Machine (DN Series)

Applications:

•  Mild steel sheet, stainless steel sheet, galvanized metal sheet spot welding.

•  Metal sheet fixing welding before continues rolling seam welding.

•  Welding fan guard (with proper designed fixing and driving system), welding metal art ware, stationery, cook ware.

•  With special made electrode, it can weld small mesh, birds cage, pets cage, condenser and similar work piece.

•  Weld connection parts, the hinge, nuts and bolt welding, low carbon fasteners and stainless fasteners.

•  Welding high conductive material, like aluminum, electrical contact, copper wire etc.(using Middle frequency power)

Features:

•  Special design integration pressure cylinder, ensure pressure stability and follow-up property and welding speed.

•  Path forced water cooling system to ensure the long-term operation reliability.

•  Spot welding and convex welding combination, the biggest play welding performance.

•  Long service life and low noise: With adjustment function of pressurized speed and adjust randomly up and down speed of pressurized head, ease the shock when the soldered object is pressed, it is with the adjustment function of rising buffer and can adjust randomly rising buffer speed, reduce the mechanical impact and improve the service life of cylinder body, and reduce the noise.

•  High electrical conductivity, low power loss: During secondary current circuit, upper secondary output of main transformer use multilayer high toughness, high conductivity red copper belt, and show V type connection, greatly improved service life, lower secondary output adopts integral type direct connecting mechanism, power loss is reduced to the minimum.

•  High solid organism structure: The characteristics of impact resistance and vibratory rigidity can prevent electrode head from slide when it is pressurized to achieve stable welding.

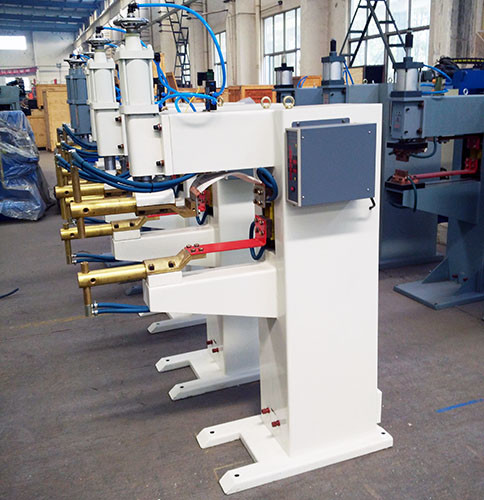

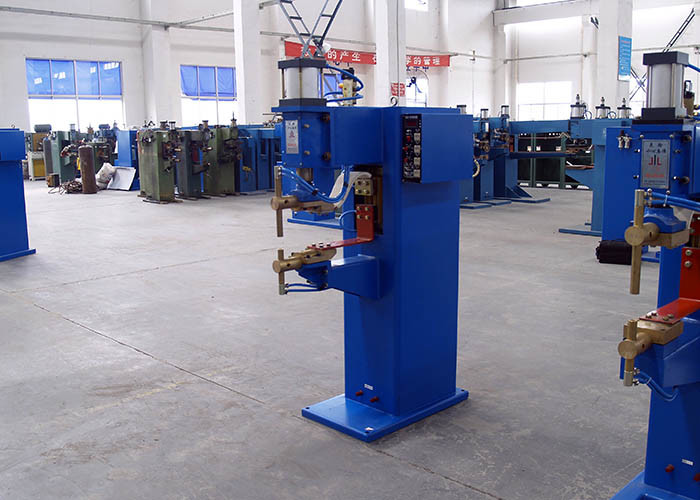

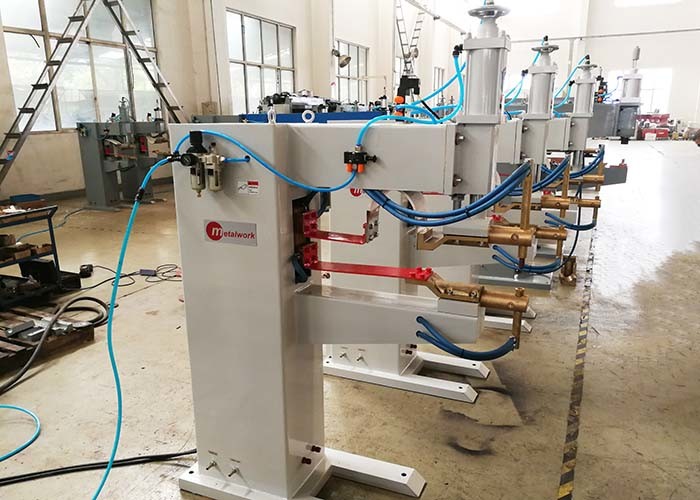

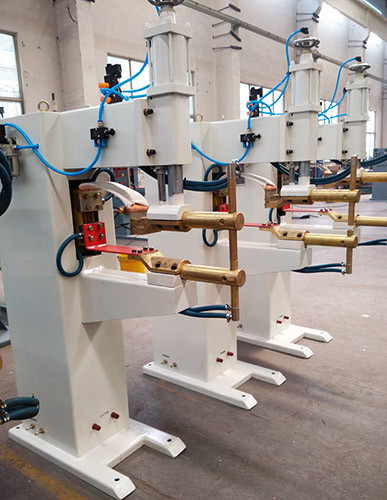

Machine Details:

Technical Parameters:

Welding Samples:
