Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: FN-160
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Controller: |
KF9 |
Voltage: |
380V Or Customized |
Forming Time: |
0.1s-10s Adjustable |
Welding Mode: |
Circular Seam Welding |
Power: |
160 KVA |
Color: |
Grey Or Blue Or White Or Customized |
Controller: |
KF9 |
Voltage: |
380V Or Customized |
Forming Time: |
0.1s-10s Adjustable |
Welding Mode: |
Circular Seam Welding |
Power: |
160 KVA |
Color: |
Grey Or Blue Or White Or Customized |
FN Series Resistance Seam Welding Machine
1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance
Product Description:
The seam welding is a metal welding which could form permanent connection. While welding, the workpiece is pressed between two wheels, and driven by wheels when two wheels are turning. When the current passed the workpiece, the workpiece will heat and form welding spot then form continuous seam. The seam welder is widely applied to container, cylinder workpiece, such as automobile fuel tank, muffler and so on.
Applications:
Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries. Widely used in Household appliances,auto,and other metal working industries.
Features:
1. Applying adjustable stroke cylinders for compression to avoid CoIIision and damage 0f upper and below electrodes
2. Being drix’an by 3-phase step less speed electrodes. The welding speed adjustment is convenient and stable
3. Longitudinal and horizontal welding is suitable for requirement of different part welding.
Smart and reasonable internal structure reduces welding performance weakening due to heat
4. The rotation conductance or sliver axis tile provides excellent contact and reduces electric energy transformation in maximum.
5. Being widely used in hardware. Household appliance. Auto .Basin making, Can making. And other metal manufacturing and reproducing industry.
6. Also one machine can be used as both tranversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.

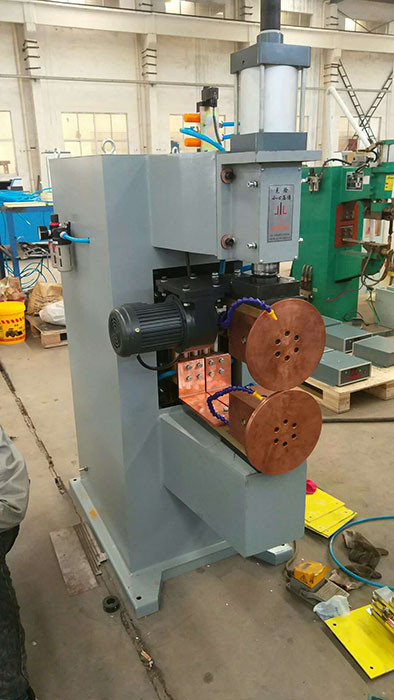

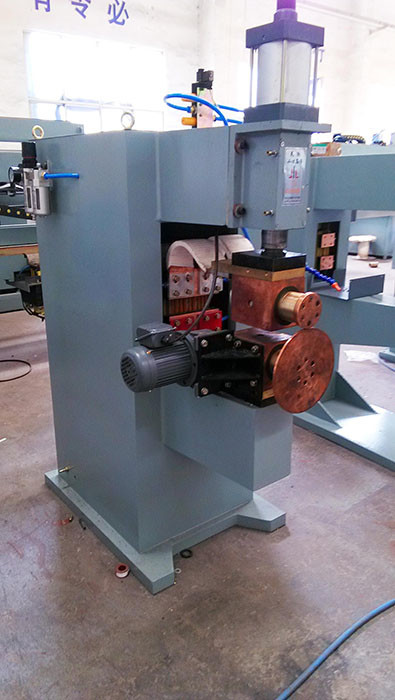

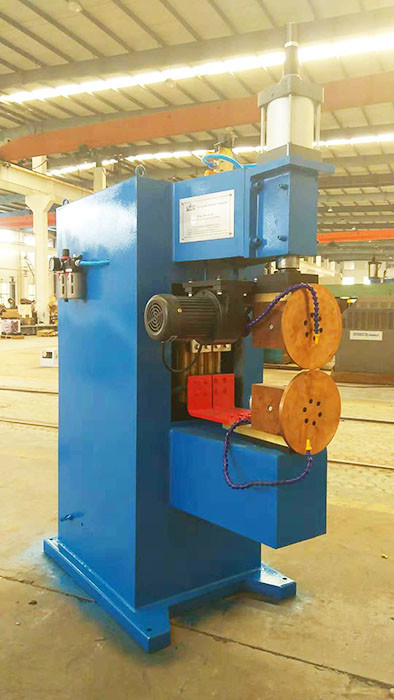

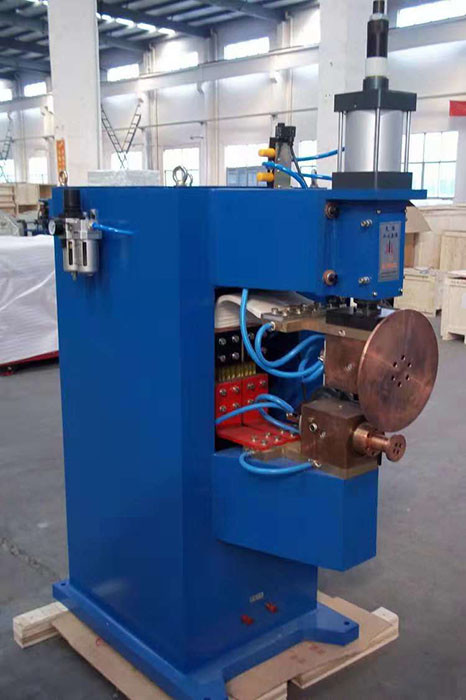

Machine Details:
Technical Parameters:
| Model | FN-160 |
| Rated Input Voltage (KVA) | 160 |
| Input Capacity | Two Phases 380V 50Hz |
| Input Current (A) | 420 |
| Output No-load Voltage (V) | 7.2 |
| Rated Duty Cycle (%) | 50% |
| Max. Welding Thickness (S.S., galvanized) (mm) | 1.5+1.5 |
| Welding Speed | 0.8-3.2m/min |
| Electrode Stroke | 20mm |
| Flow of Cooling Water | 120L/h |
Our Company:
Wuxi Metalwork Machinery Co., LTD. is a high-enterprise integrating enterprises scientific research, development, manufacturing, sales.
As one of the most professional research, development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.
We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.
We are mainly committed to the whole series of resistance welding machine and automatic welding equipment. Our products are used in various fields of manufacturing, such as household appliances, automotive production, aerospace, hardware processing.
We have established long-term and stable cooperation with many famous brands in the world, and we are looking forward to your joining.
