Hydraulic Cylinder Oil Port Automatic Seam TIG/MIG Welding Machine

Hydraulic Cylinder Oil Port Automatic Seam TIG/MIG Welding Machine

  • Hydraulic Cylinder Oil Port Automatic Seam TIG/MIG Welding Machine
Hydraulic Cylinder Oil Port Automatic Seam TIG/MIG Welding Machine
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: YKHF-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Forming Time: 150-550mm/min Power: 1.5-3KW
Welding Type: TIG MIG MAG SAW Welding Diameter: 50-800mm
Usage: Seam Welding Workpiece Length: 300-3000mm
High Light:

automated welding machine


automatic welding equipment

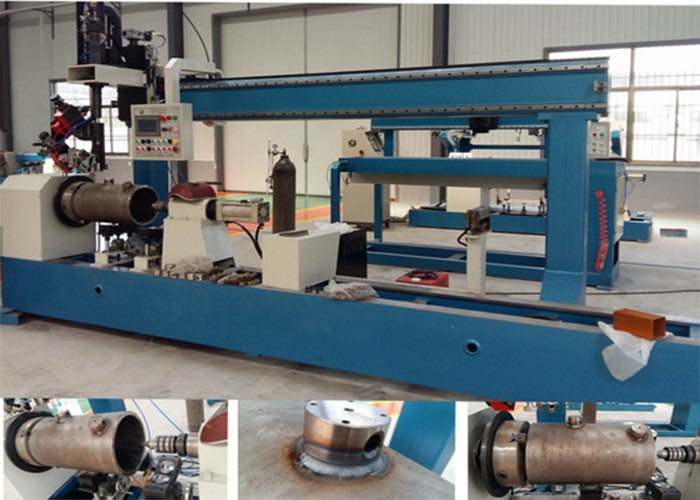

Hydraulic Cylinder Oil Port Automatic Seam TIG/MIG Welding Machine


YKHF series is a automatic welding machine, which is suitable for oil cylinder circular seam welding. The machine is drived by motors, controlled by the PLC, assisted controlled by electrical relay, so it can realize automatic welding. Welding current and welding can be set on the operation panel. It has high automation level. The machine is composed of welding torch driving part, pneumatic system, electric control system and gas shield welding power source welding oscillator.





Welding torch is fixed, the work piece rotation, welding position horizontal.


The rotation of the work piece drives by clamping fixture, universal roller bearing bracket.


With high voltage, slow feeding wire arc start function, ensure reliable arc start, and the low voltage, small current arc end, and crater filled function.


Using push wire feeding mode, ensure the feeding stability.


The torch along the longitudinal is adjustable, to adapt to varieties of welding.


The machine is PLC control, the work piece rotation adopts AC frequency control, stepless adjustable, improve equipment reliability.


The form of welding, welding specification can be preset, storing and transferring. Using the touch human-machine interface can easily change parameters and state.


The welding torch can be up and down, left and right, angle adjustment, to adapt to the requirements of welding.




Technical Parameters:



Rotation speed 0.2~2r.p.m stepless speed regulation
Motor power 0.75 KW
Compressed air 0.4~0.6 MPa
Welding specification Welding voltage 15-36V,stepless adjusting
Welding current 50-500A,60% utilization factor
Welding wire diameter Φ1.2--Φ1.6MM
CO2 consumption 15L/MIN
Grid voltage 3 phase, 380V±15%
Welding length adjusting range Overlap with level adjustment, accuracy is 1/900 perimeter
Welding torch pneumatic feed 100mm
Productivity 200-1000mm/min
Work piece diameter Φ50- Φ800mm
Length of work piece 400-3000mm


Working and Cutting Sample:


Hydraulic Cylinder Oil Port Automatic Seam TIG/MIG Welding Machine 0


Our Company:


1. Our factory has more than 10 years experiences in welding field. We can make MIG welding machine, cold wire TIG welding machine, hot wire TIG welding machine, submerged arc welding machine, plasma welding machine, laser welding machine and so on.

2. Machines have always been committed with the service idea of customer-centric, supply installation, adjustment, training and maintenance in pre-sales and after-sales service.

3. More stringent quality control system. Most Chinese suppliers are making automatic welding machine mainly for China local market. Their standard only meet domestic normal safe requirement. In order to meet International Standard, we had applied for CE certificates.


4. Delivery time assurance measure: the whole process from signing contract to delivering machine is under strict controlled. The system can ensure us deliver the machine timely.

5. And best of all, we have energy to devote to welding industry, and also have patience for each customer.
