MIG TIG MAG Robotic Welding Systems Station for Hydraulic Oil Pressure Cylinder

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: RWS-series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywooden box

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

automated welding systems

,

robotic arm welding machine

Robot Brand:
Japan Kawasaki, Yaskawa, Etc.
Welding Source Brand:
Denmark Migatronic
Tooling:
Customized
Welding Process:
TIG / MIG / MAG
Current:
350A / 500A
Workpiece:
Hydraulic Oil Pressure Cylinder
Robot Brand:
Japan Kawasaki, Yaskawa, Etc.
Welding Source Brand:
Denmark Migatronic
Tooling:
Customized
Welding Process:
TIG / MIG / MAG
Current:
350A / 500A
Workpiece:
Hydraulic Oil Pressure Cylinder
MIG TIG MAG Robotic Welding Systems Station for Hydraulic Oil Pressure Cylinder

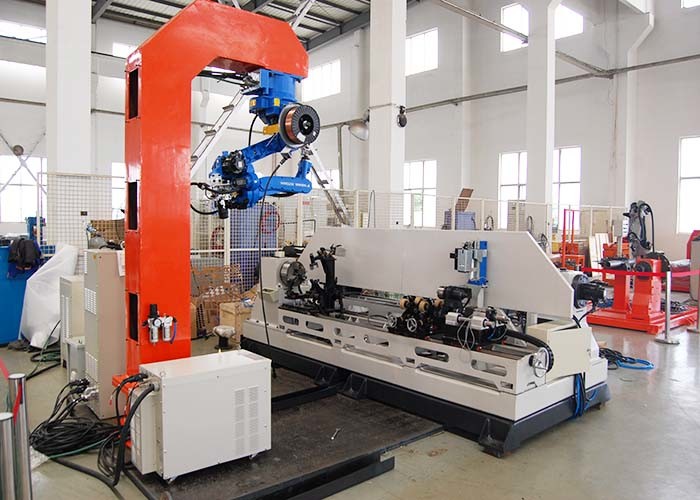

Automatic Robotics Welding Station for Hydraulic Oil Pressure Cylinder





Robot Robot:



MIG TIG MAG Robotic Welding Systems Station for Hydraulic Oil Pressure Cylinder 0



BA series is the professional robot for welding, easy operation with simple demonstration teaching operation. There is LED touch color screen with excellent visual effect and easy operation on demonstration teaching device. Robot is connected with welding machine by a cable. Welding condition can be classified saved and one key for selection.



Kawasaki BA series robot adopts E01 control box with compact outface, suitable operation system, rich function, easy maintenance and high scalability.



Demo-teaching modes Simple demo-teaching AS language program
Action modes Manual mode Dependent axis, basic coordinate system, tool coordinate system

Reappearance mode



Each axis / straight line, circle interpolation action
Storage capacity   8MB
Normal signal Out operation signal E-stop, out-keeping signal
IP&OP 32+32



6.5’ color LED screen, touch screen 640×480 Pixel. Adopts back light to see LED menu clearly.

Operation system adopts WINDOWS CE. Interface display adopts drop-down menu to guarantee easy operation.





Welding torch:



MIG TIG MAG Robotic Welding Systems Station for Hydraulic Oil Pressure Cylinder 1





Simple MAG welding, use the thin or thick wire and the operation is very simple. Once the main welding parameters set up, the integrated control panel will automatically set parameters. The performance of this series welding machine under standard configuration has been highlighted and with four wheels wire feeder and no leakage gas tube.



Model ARIROB G350

Cooling method

By air 16000

No-duty cycle 100%
Rated value 350A CO2
300A mixed gas
Wire diameter 0.8-1.4mm
Torch neck 35°



Welding Machine:



Omega400 welding source system



Migatronic Omega 400 is a kind full digital welding machine with strong functions, which is suitable all all levels of automatic functions - from big current welding to simple MAG welding, use the thin or thick wire and the operation is very simple. Once the main welding parameters set up, the integrated control panel will automatically set parameters. The performance of this series welding machine under standard configuration has been highlighted and with four wheels wire feeder and no leakage gas tube.


Name Omega 400
Input voltage 3×400V
Fuse 20A
Loading cycle 100% 40℃ 300A
Loading cycle 60% 40℃ 370A
Loading cycle 100% 20℃ 335A
Loading cycle 60% 20℃ 400A
Open circuit voltage 70V
Current range 15-400A
Protection Class IP23



Application:

Hydraulic oil pressure cylinder, oil cylinders, bucket cylinders, etc.

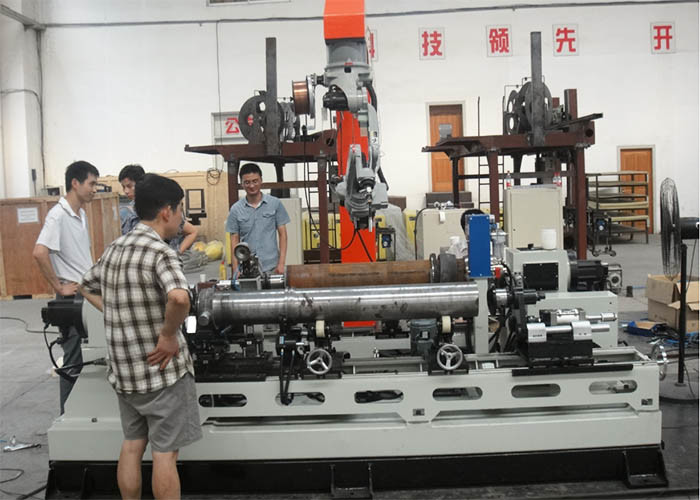

Finished Products:







MIG TIG MAG Robotic Welding Systems Station for Hydraulic Oil Pressure Cylinder 2





MIG TIG MAG Robotic Welding Systems Station for Hydraulic Oil Pressure Cylinder 3
