Metal Fiber CNC Laser Cutting Machine 1500X3000mm FL-3015-500W Customized Color

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: FL-3015-500W

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

fiber laser cutting machine

,

laser sheet cutting machine

Effective Cutting Size:
1500X3000mm
Laser Power:
500W
Cutting Material:
Metal, Steel, Aluminum, Etc.
Max Cutting Thickness:
6mm
Color:
Blue+yellow, Red+black,or Customized
Type:
Fiber Laser Cutting
Effective Cutting Size:
1500X3000mm
Laser Power:
500W
Cutting Material:
Metal, Steel, Aluminum, Etc.
Max Cutting Thickness:
6mm
Color:
Blue+yellow, Red+black,or Customized
Type:
Fiber Laser Cutting
Metal Fiber CNC Laser Cutting Machine 1500X3000mm FL-3015-500W Customized Color

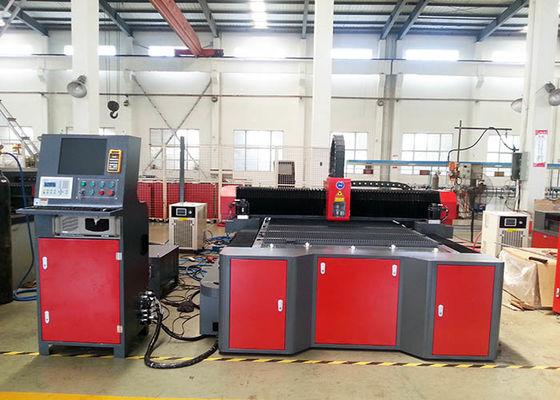

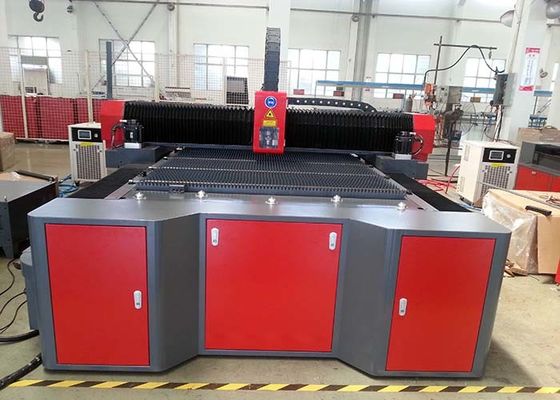

FL-3015-500W CNC Fiber Laser Cutting Machine





Machine Features and Application

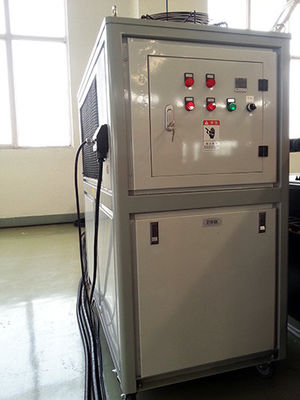

The plate fiber laser cutting machine is a cost effective equipment, which composed by the fiber laser system, chiller, laser cutting head, cutting bed, control system, gas blowing system, exhausting system as the laser, motion, electricity integrated product.



1. Adopt with high-efficiency fiber laser system,which has high conversion efficiency of optoelectronic,stable performance. The life of key parts can reach up to 100000 hours.



2. The fiber laser system has the better laser beam quality,lower maintenance cost and fewer troubleshooting, it is easy to operate as the laser sent by fiber cable and no need to adjust the laser path.



3. Compared with other media of laser equipment,it has the characters of smaller focus facula, higher cutting efficiency and good-quality processing.



4. The machine body adopts the gantry structure, with double drive system of high precision rack and pinion, it is more stable for high-speed cutting and long time use.



5. Adopting the professional numerical control system Cypcut, which support various file formats to input,easy to operate.



6. Adopting special cutting head of fiber, ensure to get the perfect cutting effect.





Application Scope and Material:



It can be widely applied in the infrastructure industry of aviation, metallurgy, vessel, sheet

metal equipment, as well as other manufacturing industry, such as machinery, electrical equipment, elevator, appliance, medical devices, hardware, decoration, advertisement, metal cutting service, etc.



It can be used for cutting the different kinds of metal plates with high-speed,like carbon steel,stainless steel,alloy steel,silicon steel,galvanized steel sheet and so on.





Product Structure:

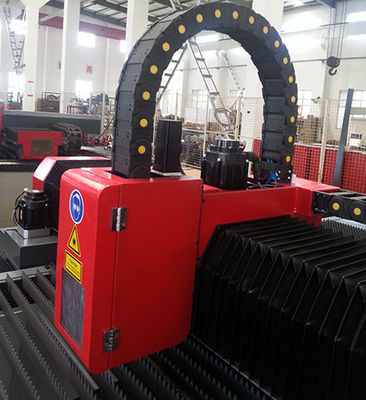

Metal Fiber CNC Laser Cutting Machine 1500X3000mm FL-3015-500W Customized Color 0







Technical Parameters:



Processing Area 3000mm X 1500mm
Max Cutting Speed 100m/min
Max accelerated 1.5G
X/Y Positioning Accuracy 0.05mm/m
X/Y Repeated Positioning Accuracy ±0.03mm
Power supply 380V 50Hz
Laser Power 500W-1200W
Gross power <10KVA (not include fiber laser generator or water chiller)
Machine running temperature 0℃-40℃
Running humidity <90%
Whole machine weight 4000kg
Machine dimensions 4600*2750*1500mm
Transmission Precise pinion and rack,dual-drive transmitting







Questions:





1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
