Name: Resistance Custom Made Machines Roller Seam Welding For Galvanized Plates
Brand: METALWORK MACHINERY (WUXI) CO.LTD
SKU: FNS-200
Availability: InStock

Resistance Custom Made Machines Roller Seam Welding For Galvanized Plates

1 set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Welding Mode: Roll / Seam Welding

Rated Capaicity: 50-200KVA

Cooling Method: Water Cooling

Voltage: 380V Or Customized

Welding Material: Galvanized Plates

Warranty: 1 Year

Highlight:

gantry welding machine

spot welding equipment

Basic Infomation

Place of Origin: China

Brand Name: Metalwork

Certification: ISO, CE, CCC

Model Number: FNS-200

Payment & Shipping Terms

Packaging Details: Plywooden package

Delivery Time: 40 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per month

Gallery

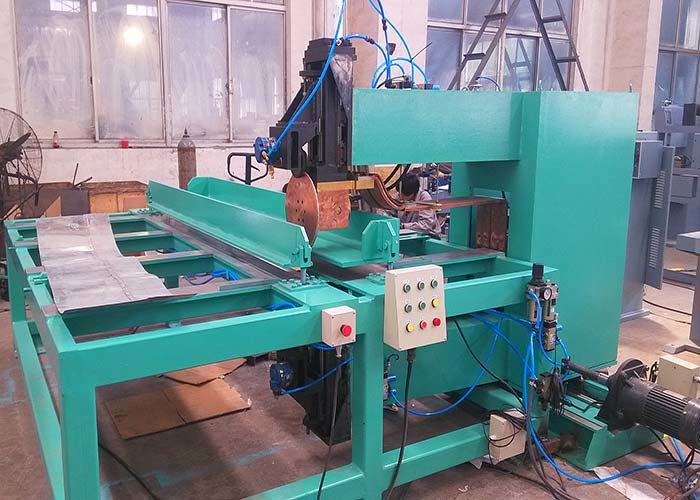

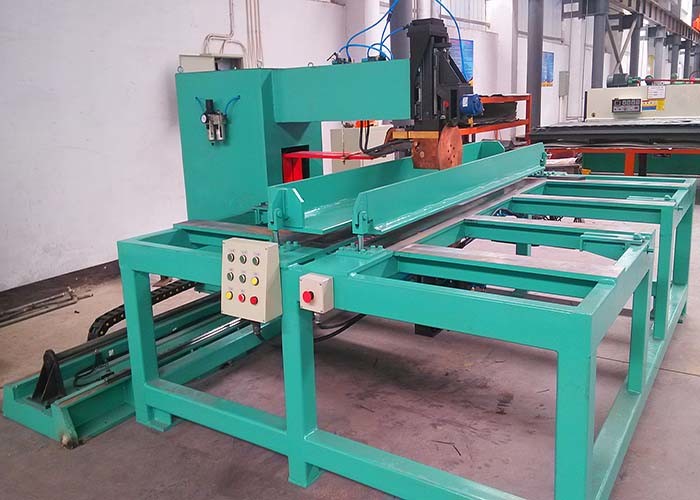

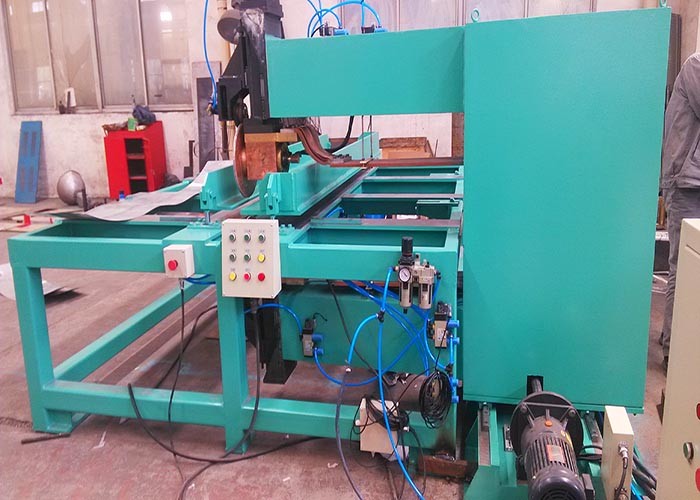

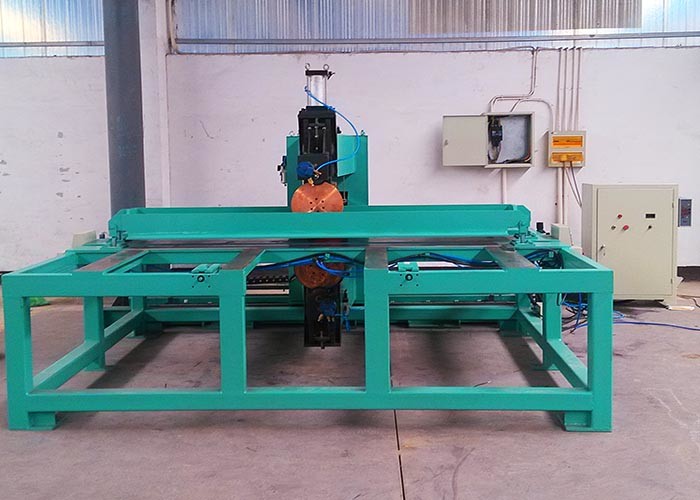

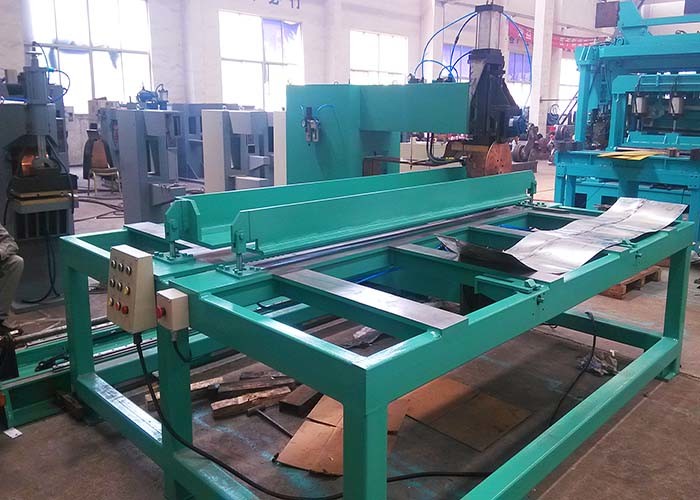

Resistance Custom Made Machines Roller Seam Welding For Galvanized Plates

Product Description

FNS Special Automatic Resistance Roller Seam Welding Machine for Galvanized Plates

1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance

Applications:

Special designed machine for welding longitudinal seam of galvanized plates.

Features:

1. Special resistance seam welding machine: Longitudinal Seam Welding Mode with support table.

2. This machine can be used for longitudinal seam welding of galvanized steel belt.

3. Double Driven two heads, upper wheel and bottom wheel. The two seam wheels have the same tangential speed.

4. The welding speed is controlled by electricity control box, easy operation and high welding capacity.

Technical Parameters:

Model	Rated Capacity	Rated Primary Voltage	Rated Frequency	Maximum Short Current	Electrode Stroke	Welding Speed	Electrode Pressure	Motor Power Source	Motor Power	Cooling Water Flow
Model	KVA	V	Hz	A	mm	M/min	KN	V	W	L/min
FN-50	50	380	50/60	16000	50	0.6-4	2.5	3-380V	90	30
FN-75	75	380	50/60	19000	50	0.6-4	3.9	3-380V	150	30
FN-100	100	380	50/60	22000	50	0.6-4	4.7	3-380V	150	30
FN-150	150	380	50/60	29000	50	0.6-4	6.1	3-380V	150	30
FN-200	200	380	50/60	35000	50	0.6-4	6.1	3-380V	150	30

Welding Samples:

Resistance Custom Made Machines Roller Seam Welding For Galvanized Plates 0
