Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: FNS-100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Controller: |
KF9 |
Voltage: |
380V Or Customized |
Duty Cycle: |
50% |
Welding Workpiece: |
Metal Or Steel Products |
Color: |
Grey Or Blue Or White Or Customized |
Warranty: |
1 Year |
Controller: |
KF9 |
Voltage: |
380V Or Customized |
Duty Cycle: |
50% |
Welding Workpiece: |
Metal Or Steel Products |
Color: |
Grey Or Blue Or White Or Customized |
Warranty: |
1 Year |
Special Automatic Resistance Longituidinal Seam Welding Machine
1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance
Applications:
Widely used for lap seam welding for steel belts of mild steel, alloy steel and stainless steel.
Features:

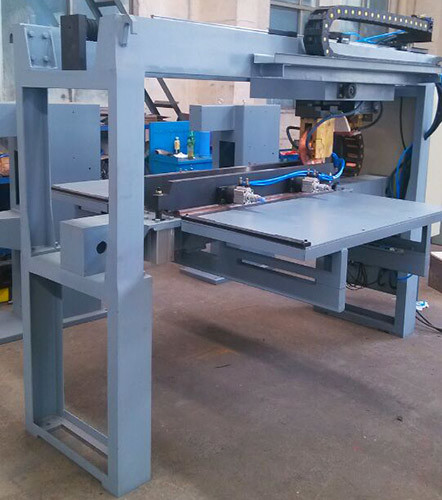

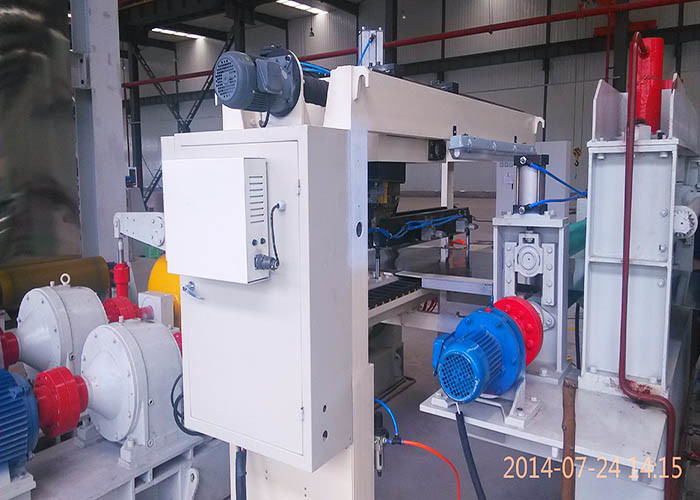

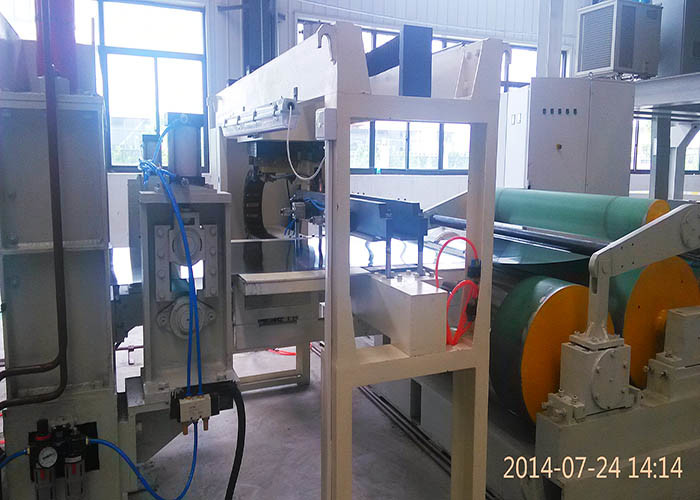

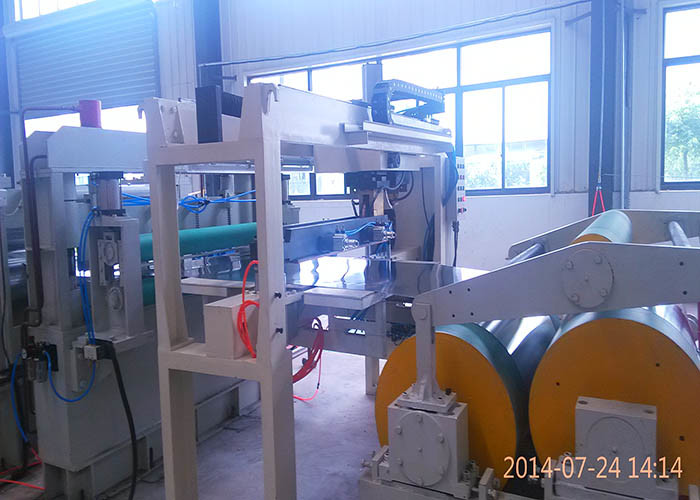

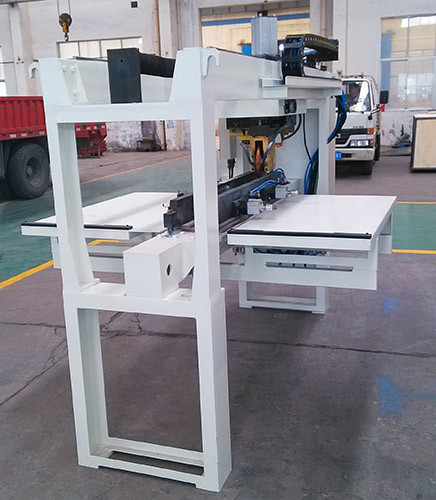

Machine Details:
Technical Parameters:
| Model | FN-35 | FN-50 | FN-75 | FN-100 | FN-125 | FN-160 |
| Rated Capacity (KVA) | 35 | 50 | 75 | 100 | 125 | 160 |
| Input Voltage | Single Phase 380V 50Hz | |||||
| Input Current (A) | 92 | 131 | 197 | 263 | 328 | 420 |
| Output No-load Voltage (V) | 4.2 | 5 | 6.1 | 7.2 | 8 | 8.5 |
| Rated Duty Cycle | 50% | |||||
| Max. Welding Thickness (low carbon steel) (mm) | 1+1 | 1.5+1.5 | 2+2 | 2.5+2.5 | 3+3 | 3.5+3.5 |
| Welding Speed | 0.8-3.2m/min | |||||
| Electrode Stroke | 20mm | |||||
| Flow of Cooling Water | 120L/h | |||||
| Weight of Complete Machine (Kg) | 470 | 500 | 620 | 720 | 810 | 930 |
