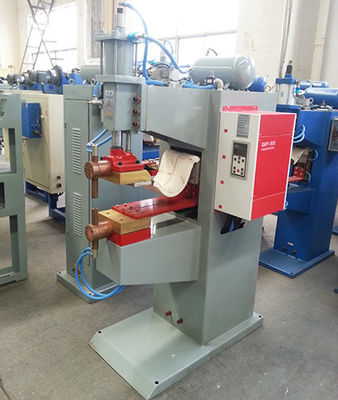

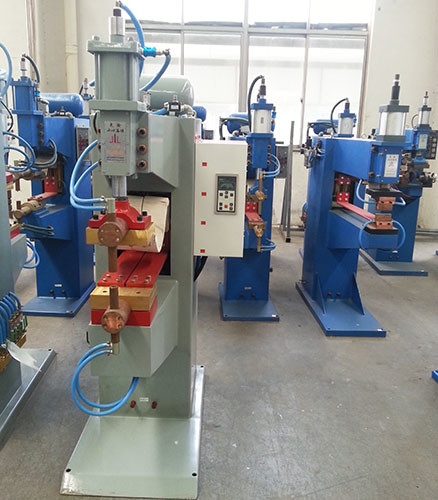

DNM Series Medium Frequency (MFDC) Resistance Spot Welding Machine

DNM Series Medium Frequency (MFDC) Resistance Spot Welding Machine

The DNM Series Medium Frequency (MFDC) Resistance Spot Welding Machine represents the pinnacle of modern spot welding technology, engineered to deliver unprecedented precision, efficiency, and consistency. Utilizing advanced 1000Hz Medium Frequency Direct Current (MFDC) technology and controlled by the sophisticated SMF1-800 Inverter Welding Controller, the DNM Series redefines performance standards for critical spot welding applications. From automotive body-in-white to precision electronics, this system provides superior weld quality, remarkable energy savings, and seamless integration into automated production lines.

Product Overview:

The DNM Series MFDC Spot Welder revolutionizes traditional resistance welding by converting three-phase AC line power into precisely controlled, stable medium frequency DC output. This transformation, managed by the intelligent SMF1-800 inverter controller, enables exact command over the welding current's rise time, magnitude, and duration. The result is exceptionally clean, strong weld nuggets with minimal heat-affected zones, spatter, and workpiece distortion. Designed for the most demanding production environments, the DNM Series excels in welding coated materials, dissimilar thicknesses, and high-strength alloys where consistency is paramount.

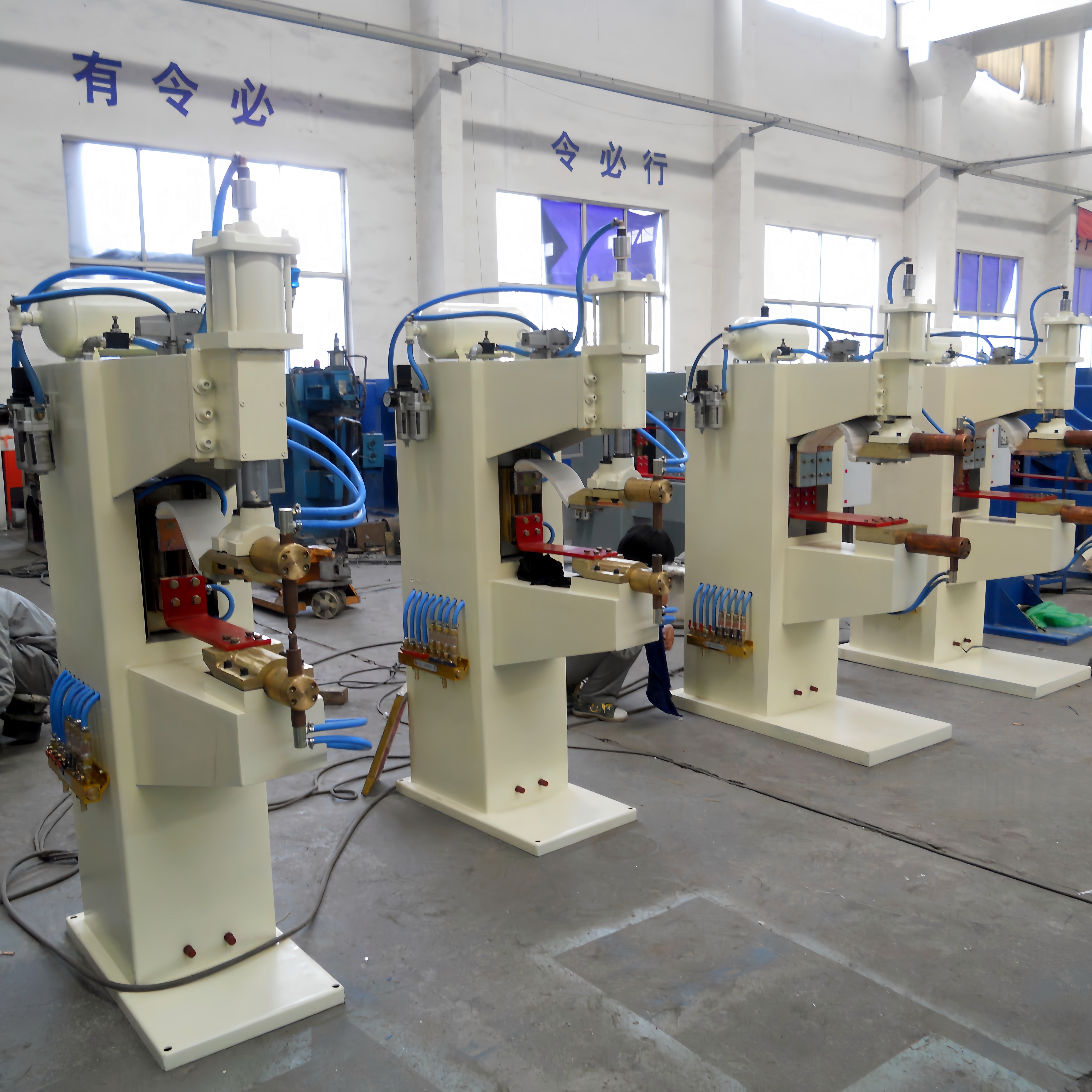

Machine Structure & Key Components:

• Ultra-Rigid, Low-Inertia Welding Frame – Optimized C-frame or pedestal design constructed from high-strength steel with precision machining for exceptional mechanical stability and alignment accuracy.
• Medium Frequency DC Inverter Power Source – The heart of the system, transforming 3-phase 380-480V AC input into precisely regulated 1000Hz DC welding current with ultra-fast response.
• SMF1-800 Advanced Inverter Welding Controller – Central command unit featuring a high-resolution touchscreen, capable of storing thousands of welding programs and executing complex multi-pulse welding schedules with adaptive feedback.
• High-Performance Servo Gun or Precision Pneumatic Actuation – Options include servo-driven electrodes for unparalleled speed and repeatability, or advanced pneumatic systems with proportional valves for precise force control.
• Low-Impedance, Water-Cooled Secondary Circuit – Optimized copper alloy construction with large cross-sections and efficient cooling ensures maximum power delivery to the weld zone with minimal energy loss.
• Intelligent Electrode Dresser Integration (Optional) – Automated electrode maintenance system to maintain optimal tip geometry and ensure consistent weld quality.
• High-Efficiency Closed-Loop Cooling System – Maintains precise temperature control for the inverter modules, transformer, and secondary components, ensuring stability during high-duty-cycle operation.
• Industrial-Grade Safety System – Includes safety-rated dual-hand controls, light curtains, and emergency stop circuits, fully compliant with international machinery safety standards.
• Smart Factory Connectivity Suite – Built-in Ethernet, PROFINET, EtherNet/IP, and OPC UA protocols for seamless data exchange with MES, SCADA, and ERP systems.

Key Features & Advantages of MFDC Spot Welding Technology:

Revolutionary Weld Quality & Process Control:

• Perfect Square Wave Output: Delivers instantaneous, controlled current rise for consistent nugget formation from the first pulse, eliminating the need for pre-heat cycles in many applications.
• Elimination of Magnetic Blow Effect: DC current flow is unaffected by magnetic fields from surrounding steel, enabling consistent weld quality on complex assemblies and near edges.
• Superior Weldability of Advanced Materials: Exceptionally effective for welding aluminum alloys, galvanized steel (GI, GA), ultra-high-strength steel (UHSS), and dissimilar metal combinations.
• Reduced Electrode Sticking & Wear: Lower RMS current and concentrated heating significantly extend electrode tip life, reducing downtime and consumable costs.

Unmatched Energy Efficiency & Operational Economy:

• Exceptional Power Factor (≥0.95): Draws balanced, efficient power from all three phases, reducing primary input current requirements by up to 50% compared to AC systems. This translates to direct energy savings of 30-40% and potential reductions in utility demand charges.
• Balanced Three-Phase Load: Protects facility transformers and eliminates phase imbalance penalties, improving overall plant electrical health.
• Compact Transformer Design: The high operating frequency allows for a transformer that is up to 90% smaller and lighter than an equivalent AC unit, enabling more agile gun designs and reducing moving mass.

Enhanced Productivity & System Intelligence:

• Faster Welding Cycles: The rapid current rise and fall times enable shorter weld times and faster gun sequencing, increasing overall parts-per-hour throughput.
• SMF1-800 Adaptive Control: Features "Dynamic Resistance" and "Constant Current" control modes that automatically compensate for electrode wear, shunting, and variations in surface condition.
• Comprehensive Data Analytics: Every weld is monitored and logged. Key parameters (current, voltage, resistance, energy) are tracked for full SPC (Statistical Process Control) and traceability.
• Quieter Operation: Eliminates the characteristic 50/60Hz transformer hum, contributing to a better shop floor environment.

Technical Parameters:

General Specifications:

Operating Frequency: 1000Hz Medium Frequency DC

Input Voltage: 3-Phase 380-480V ±10%, 50/60Hz

Current Rise Time: < 1 millisecond

Weld Time Resolution: 0.1 ms

Cooling Requirement: Deionized Water, 10-15 L/min @ 4-6 bar

Communications: Ethernet, PROFINET, EtherNet/IP, OPC UA (Standard)

Data Storage: ≥10,000 Weld Records with Parameter Curves

Applications:

The DNM Series is the preferred choice for high-volume, high-quality spot welding across industries:

Automotive Manufacturing: Body-in-white (BIW) assembly, chassis components, seat structures, and battery tray welding for EVs.

Electric Vehicle (EV) Battery Production: Welding of busbars, cell connectors, and module housings where heat control is critical.

Home Appliance Industry: Welding of outer cabinets, internal frames, and heat exchangers for refrigerators, washing machines, and ovens.

Metal Furniture & Shelving: High-speed production of racks, lockers, and display units.

Electronics & Electrical Enclosures: Welding of sensitive electronic casings and distribution boxes with minimal spatter.

Aerospace & Precision Engineering: Welding of thin-gauge structures and heat-sensitive components.

Why Choose the DNM Series MFDC Spot Welding Machine?

Proven Return on Investment (ROI): Significant reductions in energy consumption, electrode costs, and scrap rates deliver a fast payback period.

Future-Ready Manufacturing: The system’s connectivity and data capabilities make it a cornerstone of digitalized, smart factory production.

Uncompromising Quality & Consistency: Achieve Six Sigma levels of weld quality repeatability, reducing inspection costs and warranty claims.

Maximized Uptime & OEE: Robust design, intelligent diagnostics, and reduced maintenance requirements ensure maximum productivity.

Technical Partnership: Gain access to our global team of welding process engineers for application support and optimization.

For manufacturers aiming to lead in quality, efficiency, and technological advancement, the DNM Series Medium Frequency Spot Welding Machine is not just equipment—it's a strategic investment in manufacturing excellence. Contact us to schedule a process demonstration and see the MFDC difference for yourself.

Welding Samples:
