| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | ISO, CE, CCC |
| Model Number: | DN- Series |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per month |
| Controller: | SMF1-800 | Voltage: | 380V Or Customized |
|---|---|---|---|
| Duty Cycle: | 50% | Welding Workpiece: | Copper, Aluminum, Steel Spot Welding |
| Cooling Method: | Water Cooling | Weight: | 300-800kg |
| High Light: | spot welding equipment,resistance welding equipment |
||

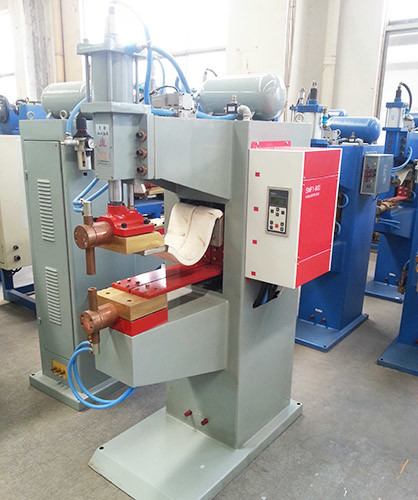

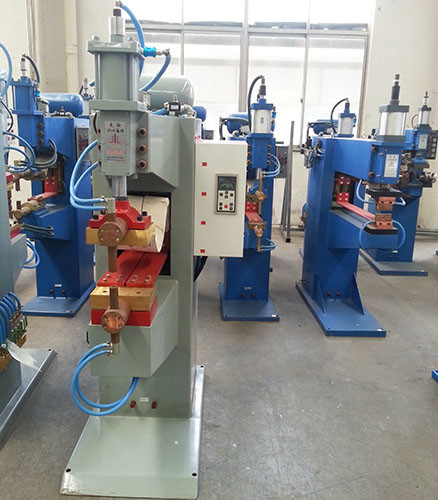

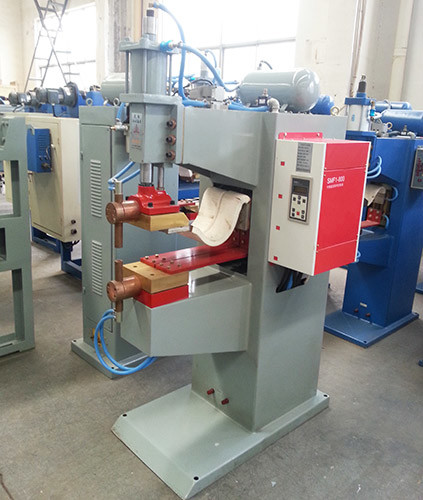

Mid Frequency Inverter DC Pneumatic Spot Welding Machine
Main Features
• Three phase AC power input, power balance, high power factory.
• The fast response control of current improves the quality of solder joints.
• For the same welding workpiece, the welding time is short,the power consumption is saved, the welding stability area increased, and the life of electrode is increased.
• It is suitable for welding of metal materials such as aluminum, galvanized steel, high tensile steel and carbon steel, and the welding effect is good.
• It is especially suitable for spot welding and projection welding of plate and plate, plate and projection nut and stud.
• The welding quality is stable, solid, deep penetration and less splash.
• When the unipolar output is controlled, the polarity of the current is constant during the first welding cycle, and the polarity of the two successive welding cycles alternates.
• When AC output is controlled, half wave time is adjustable, and 2-50ms is Programmable.
• Programmable up to 64 sets of welding specifications.
• The three stage heating process is preheating, welding and tempering, and the welding section can be defined by increasing and decreasing stages.
• Programmable pressure control can define 10 Pressure sections at most.
• Programmable output I/O port Programmable 3 segment output, better match with PLC,robot and so on.
• Solder joint count function.
Technical Parameters:
| Model | Rated Capacity (KVA) | Input Voltage | Input Current (A) | No-load Voltage(V) | Duty Cycle | Electrode Extension | Welding Thickness (mm) |
| DN-25 | 25 |
(Single Phase) 380V 50Hz |
65 | 3.5 | 50% | 350 | 0.5+0.5-1.5+1.5 |
| DN-35 | 35 | 92 | 3.8 | 350 | 0.5+0.5-2.5+2.5 | ||
| DN-50 | 50 | 131 | 5 | 520 | 1+1-3+3 | ||
| DN-75 | 75 | 197 | 6.3 | 560 | 1+1-3.5+3.5 | ||
| DN-100 | 100 | 263 | 7.6 | 560 | 1.5+1.5-4+4 | ||
| DN-150 | 150 | 395 | 8.4 | 560 | 1.5+1.5-5+5 |
Welding Samples:
