Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-3015-1000W
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Size: |
1500X6000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 10mm |
Color: |
Blue+yellow, Red+black,or Customized |
Warranty: |
1 Year |
Effective Cutting Size: |
1500X6000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 10mm |
Color: |
Blue+yellow, Red+black,or Customized |
Warranty: |
1 Year |

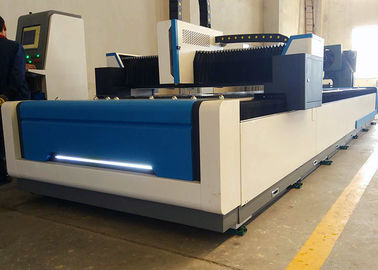

FL-3015-1000W Fiber Laser Cutting Machine
The Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.
Application Scope and Material:
1. Mild steel
2. Stainless steel
3. Aluminum
4. Copper
5. Galvanized sheet
Product Structure:
Main Features:
1 The main features of fiber laser is high efficiency of the light conversion , can reach more than 30%, so you can save a lot of power consumption, save operating costs, to achieve the highest production efficiency.
2 The laser machine only need the electrical energy to run , no need to generate additional laser gas, so you can operate it with the lowest maintenance costs.
3 The Laser adopt fiber laser using semiconductor modular and redundant design, no start-up time, No need adjustment, maintenance-free, high stability advantages, reducing the cost of accessories and the time of maintenance, the traditional Lasers can not match this.
Main Components:
Technical Parameters:
| Processing Area | 6000mm X 1500mm |
| Max Cutting Speed | 100m/min |
| Max accelerated | 1.5G |
| X/Y Positioning Accuracy | 0.05mm/m |
| X/Y Repeated Positioning Accuracy | ±0.03mm |
| Power supply | 380V 50Hz |
| Laser Power | 500W-1200W |
| Gross power | ＜10KVA (not include fiber laser generator or water chiller) |
| Machine running temperature | 0℃-40℃ |
| Running humidity | ＜90% |
| Whole machine weight | 4000kg |
| Machine dimensions | 7600*2750*1500mm |
| Transmission | Precise pinion and rack,dual-drive transmitting |
Cutting Samples:
