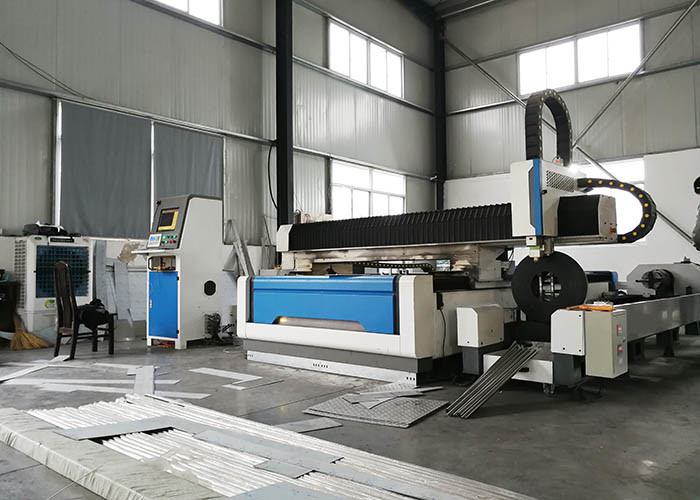

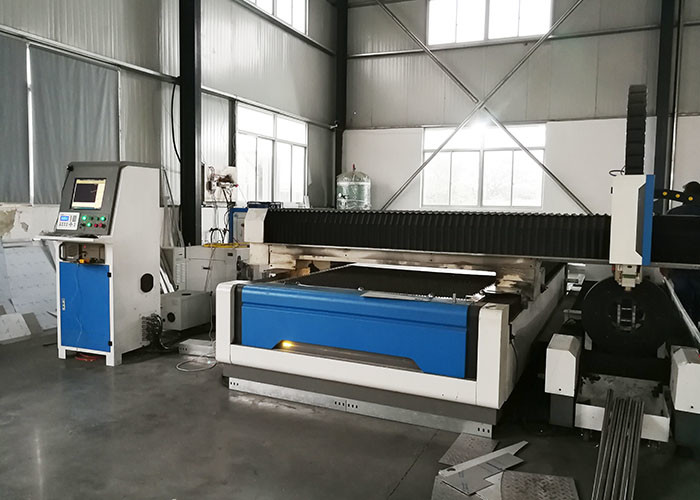

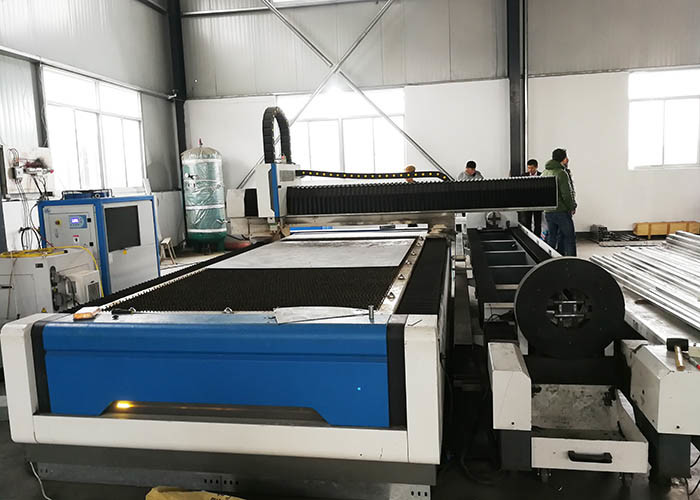

2KW-40KW Tube and Plate Integrated Fiber Laser Cutting Machine
Product Introduction:
Our 2KW-40KW Tube & Plate Integrated Fiber Laser Cutter is a high-performance, multi-functional cutting solution designed to meet the diverse needs of metal processing industries. Combining advanced fiber laser technology with integrated tube and plate cutting capabilities, this equipment eliminates the need for separate cutting machines for different workpieces, greatly improving production efficiency and reducing workshop space occupation.
Equipped with a high-precision drive system and intelligent control software, it can handle a wide range of metal materials, including carbon steel, stainless steel, aluminum alloy, and brass, with thicknesses from thin sheets to heavy plates. Whether it's flat plate cutting for large structural parts or tube cutting for pipes of various specifications, this machine delivers exceptional cutting quality, fast speed, and stable performance, making it an ideal choice for industries such as construction, automotive manufacturing, aerospace, furniture making, and hardware processing.
Special designed FL series fiber laser cutting machine is used to cut both pipe and sheet.
Product Features:
• Integrated Tube & Plate Cutting Design: Realizes seamless switching between flat plate and tube cutting without changing equipment or complex adjustments. The integrated structure optimizes workflow, saves production space, and reduces labor costs.
• Powerful Laser Source: Available in 2KW-40KW power ranges to meet different cutting requirements. Adopts high-quality fiber laser source with high electro-optical conversion efficiency (up to 30%), low energy consumption, and long service life (over 100,000 hours).
• High Precision & Stability: Equipped with high-precision linear guides and ball screws, combined with servo drive systems from well-known brands, ensuring high positioning accuracy and repeatability. The rigid machine frame is processed by finite element analysis and precision machining, minimizing vibration during high-speed cutting.
• Fast Cutting Speed & Efficient Production: Advanced laser cutting technology enables fast cutting speed, especially for thin and medium-thickness plates, which is 2-3 times that of traditional cutting methods. The intelligent nesting software optimizes material utilization, reducing material waste.
• Versatile Tube Cutting Capabilities: Supports cutting of round tubes, square tubes, rectangular tubes, oval tubes, and special-shaped tubes with a wide range of diameters and wall thicknesses. The professional tube clamping system ensures firm fixation and high cutting precision.
• Intelligent Control System: Adopts industrial-grade CNC control system with a user-friendly interface, easy to operate. Supports offline programming and remote monitoring, facilitating production management and maintenance.
• Comprehensive Safety Protection: Equipped with safety light curtains, protective covers, and alarm systems to prevent operator injury. The laser safety class meets international standards, ensuring a safe working environment.

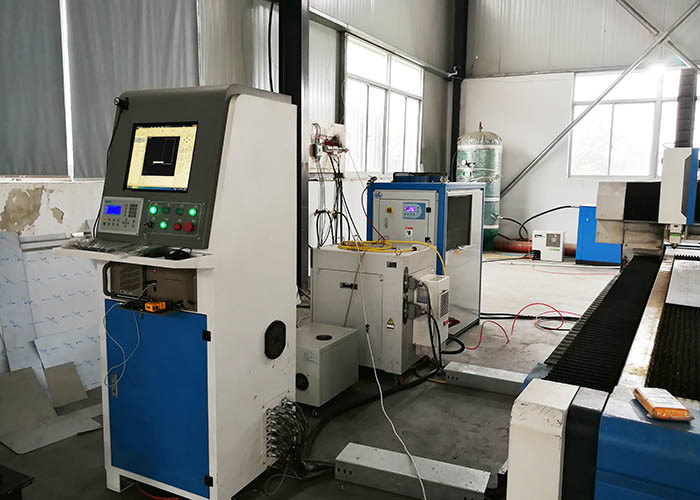

Main components of CNC laser cutting machine:
Technical parameters:
|
Parameter Item
|
Specification
|
| Laser Power |
2KW, 3KW, 4KW, 6KW, 8KW, 10KW, 12KW, 15KW, 20KW, 30KW, 40KW (optional) |
| Laser Type |
Continuous Wave Fiber Laser |
| Wavelength |
1064nm |
| Cutting Material |
Carbon steel, stainless steel, aluminum alloy, brass, copper, etc. |
| Plate Cutting Size |
Standard: 3000×1500mm, 4000×2000mm, 6000×2000mm; Customizable according to requirements |
| Max. Plate Thickness (Carbon Steel) |
2KW: ≤12mm; 3KW: ≤16mm; 4KW: ≤20mm; 6KW: ≤25mm; 8KW: ≤30mm; 10KW: ≤35mm; 12KW: ≤40mm; 15KW: ≤45mm; 20KW: ≤50mm; 30KW: ≤60mm; 40KW: ≤80mm |
| Max. Plate Thickness (Stainless Steel) |
2KW: ≤8mm; 3KW: ≤12mm; 4KW: ≤15mm; 6KW: ≤20mm; 8KW: ≤25mm; 10KW: ≤30mm; 12KW: ≤35mm; 15KW: ≤40mm; 20KW: ≤45mm; 30KW: ≤50mm; 40KW: ≤60mm |
| Tube Cutting Range |
Round tube: φ20-φ300mm; Square tube: 20×20-200×200mm; Rectangular tube: 20×40-200×300mm; Wall thickness: ≤20mm (depending on power) |
| Positioning Accuracy |
±0.03mm/m |
| Repeat Positioning Accuracy |
±0.02mm |
| Max. Cutting Speed (Carbon Steel 1mm) |
Up to 60m/min |
| Drive System |
High-precision servo drive system (Siemens/Yaskawa/Panasonic optional) |
| Control System |
Industrial CNC Control System (FSCut/Hypertherm optional) |
| Cooling System |
Industrial water chiller with temperature control accuracy ±0.5℃ |
| Power Supply |
AC 380V/50Hz/3Phase (Customizable for different regions) |
| Overall Dimensions (L×W×H) |
Depends on plate size, e.g., 4000×2000mm plate model: approx. 6500×3500×2200mm |
| Weight |
Depends on power and plate size, e.g., 4000×2000mm plate, 6KW model: approx. 8000kg |
Cutting samples of cnc metal laser cutting machine:
