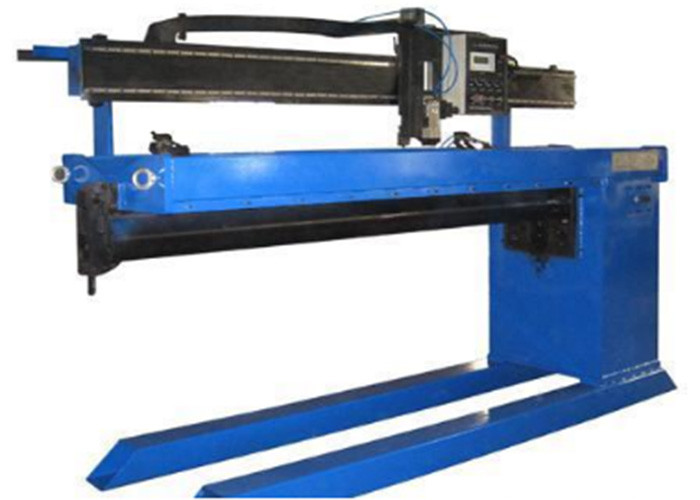

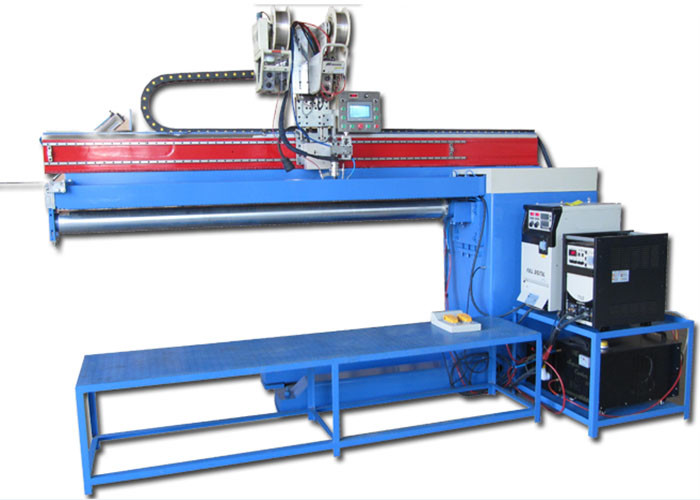

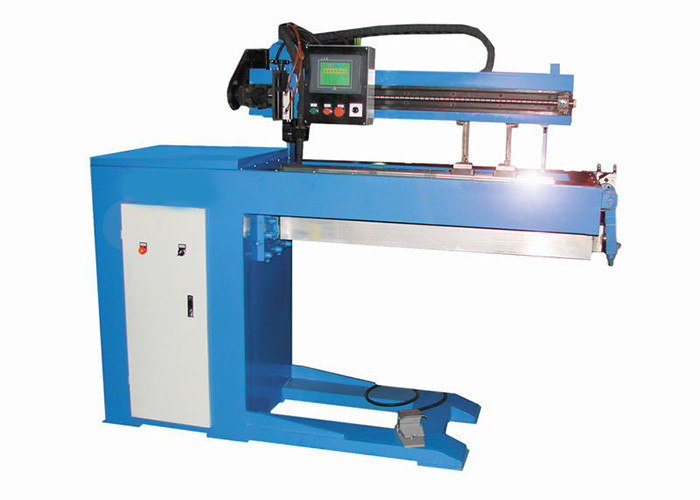

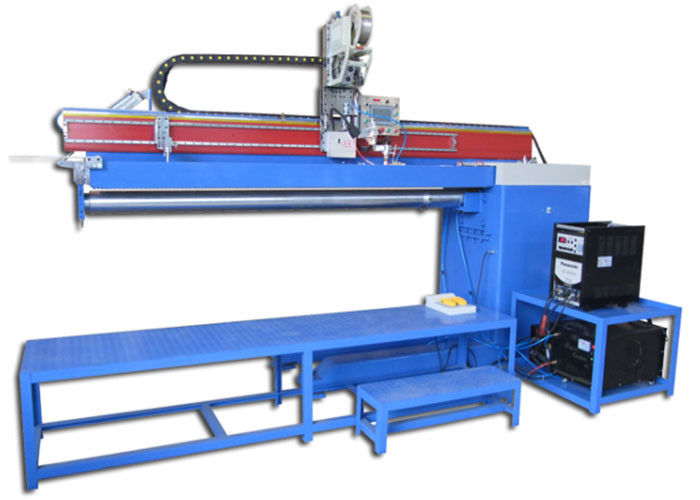

Argon Longitudinal Seam TIG Automatic Arc Welding Machine With High Efficiency

Latest Design Automatic Argon Arc Longitudinal Seam TIG Welding Machine for Stainless Steel

Equipment component:

Pneumatic key clamp device, base, beam, mandrel, copper pad, shaft door opening device, traversing track, cross-carriage torch controller, torch holder and electrical control system.

Main features:

LSW series longitudinal seam welding machine is the standard equipment of our company. It adopts the key clamp device to support uniform and stable holds and cooling effect, which removes the surplus heat through welding seam, in order to reduce the warping and distortion of workpiece. We can weld either at one side or two sides and assure perfect welding quality.

Such clamp is fixed on the top of the base, symmetrical, making the air-bag expand. Top pressure lever device brings the key plate pressure as much as 30Kg/c㎡. Furthermore, distance between right-left plates is adjustable according to seam requirements to meet different seam width.

Mandrel is designed as different diameters based on different seam lengths to make sure its hardness. A certain width conductive copper pad is mounted on the top of the mandrel. We can process the socket deformed negatively along the central axis of copper pad. Many mini holes inside, distributed equidistant,to protect the gas. Vertical height of the mandrel is adjustable by screw to meet different welding requirements.

Track, driven by DC motor, settled on the beam moves as constant speed by Taiwan Hiwin liner guides&precise rack, in order to meet different welding requirements.We can control or adjust the welding stroke through photoelectric switch. The cross carriage on track can be adjusted at all directions. Automatically pneumatic feeding device on sliding guide is able to realize torch-feeding/unloading promptly.

It adopts PLC programme control with advanced man-machine operating interface, providing stable and reliable function.

Detailed configuration:

Workpiece samples:
