Electro - Slag Box Beam Production Line Cantilever Type Nozzle Melt 0.55KW Motor Power

Electro - Slag Box Beam Production Line Cantilever Type Nozzle Melt 0.55KW Motor Power

  • Electro - Slag Box Beam Production Line Cantilever Type Nozzle Melt 0.55KW Motor Power
  • Electro - Slag Box Beam Production Line Cantilever Type Nozzle Melt 0.55KW Motor Power
Electro - Slag Box Beam Production Line Cantilever Type Nozzle Melt 0.55KW Motor Power
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: XDZ-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Box Beam Section Length: 300-1200mm Box Beam Section Width: 300-1200mm
Usage: Box Beam Welding Box Beam Length: 4000-15000mm
Welding Type: ESW Welding Warranty: 12 Months
High Light:

steel structure production line

,

electroslag welding machine

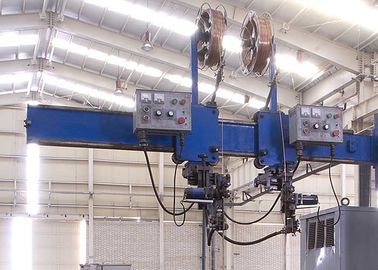

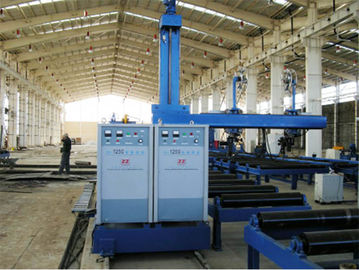

Cantilever Type(Nozzle Melt)Electro-slag Welding Machine for Steel Box Beam



Nozzle melt is a kind of electro-slag welding that melts the contact tube (nozzle) and welding wire together. The contact tube will stay while welding wire is fed when welding. Actually, contact tube comes to be a part of welding wire. Features for nozzle melt electro-slag welding:



1) electro-slag welding part has a simple structure. Its welding power often comes from our country, so the cost will be low.



2) There’s welding flux covering the contact tube. It will join the process of melting the metal, and improve the organizational structure of metal in welding seam.



3) The contact tube will be melt with wire, so it is expendable, the cost will be high, and different sizes of Box-beam needs different contact tubes.



4) Using φ2.4mmwelding wire, welding speed is slower than wire melt type.





Technical Parameters:



Workpiece Size 300~1200 mm
Cart Rail Distance 1000 mm
Moving Speed 6 m/min
Moving Motor Power 0.55KW
Effective Welding Length 17000mm
Welding Power Including 2 sets of electro-slag welding power, wire feeder, cross trimming mechanism and control box



Electro - Slag Box Beam Production Line Cantilever Type Nozzle Melt 0.55KW Motor Power 0



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your Box beam?

• What's the min and max thickness of box beam plate?

• What's the min and max box beam section width?

• What's the min and max box beam section length?
• What’s the length of your box beam?



These information is helpful for us to choose suitable equipment solution and price quickly.
