CNC Gantry Type H Beam Production Line Strip Flame Cutting Machine For Brass

CNC Gantry Type H Beam Production Line Strip Flame Cutting Machine For Brass

  • CNC Gantry Type H Beam Production Line Strip Flame Cutting Machine For Brass
CNC Gantry Type H Beam Production Line Strip Flame Cutting Machine For Brass
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC5-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
CNC System: Hypertherm, Fangling, Etc. Height Controller: Hongyuda, Hypertherm, Etc.
Nesting Software: FastCAM, InteGNPS, Etc. Cutting Torch: 9+1
Motor: Panasonic Reducer: Shimpo, Neugart
Color: Red+black, Blue+yellow Or Customized Warranty: 1 Year
High Light:

cnc h beam drilling machine


h beam assembly machine

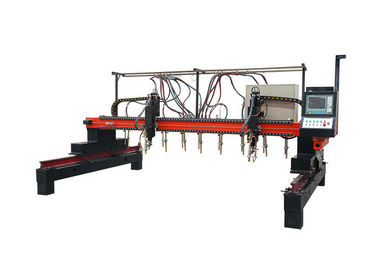

CNC5 Series Gantry type Strip Cutting Machine for H beam



Application Scope and Material:


1. Hardly oxidized metal


2. Easily oxidized


3. Stainless steel


4. Brass, aluminum, and zinc





  •  First step machine in H beam production line.


  •  9 sets of strip flame torches and 2 sets of CNC flame torches as standard, also can equip with 1 set of CNC flame torch and 1 set of CNC plasma torch according to customer’s selection.



  •  Adopt both Chinese and USA Hypertherm CNC system according to customer’s selection.


  •  Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance. .


  •  The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.


  •  Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.


  •  Flexible cutting size available or customize according to customer's needs.


Technical Parameters:



Model CNC5-3000 CNC5-4000 CNC5-5000
Gauge (mm) 3000 4000 5000
Effective cutting width (mm) 230-2200 230-3200 230-4200
Rail Length (mm) 12000 / 14000 12000 / 14000 12000 / 14000
Effective cutting length (mm) 10000 / 12000 10000 / 12000 10000 / 12000
CNC cutting torch 2 2 2
Strip cutting torch 9 9 9
Cutting thickness (mm) 6~100 6~100 6~100
No-duty running speed 4000 mm/mm
Drive mode Single / double Single / double Double
Cutting precision ±0.5mm/mm
Repeat ability precision ±0.5mm/mm






























CNC Gantry Type H Beam Production Line Strip Flame Cutting Machine For Brass 0




1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.


3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
