2000mm Web Height H Beam Line , Automatic T Type SAW H Beam Cutting Machine

2000mm Web Height H Beam Line , Automatic T Type SAW H Beam Cutting Machine

  • 2000mm Web Height H Beam Line , Automatic T Type SAW H Beam Cutting Machine
2000mm Web Height H Beam Line , Automatic T Type SAW H Beam Cutting Machine
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: SXBH-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Gauge Of Gantry Frame: 2000mm Or As You Request Width Of Flange: 200-800mm
H Beam Height: 200-2000mm Usage: H Beam Welding
Welding Type: Boat Type Welding Warranty: 12 Months
High Light:

h beam assembly machine

,

h beam welding line



Automatic T Type SAW Welding Machine for Steel Structure



The auto-welding machine for H-type steel accepts the AC frequency conveyor to control speed with the merits of stable and reliable running and quick returning. It use the auto-arc tracing & centering device to ensure the welding gun being auto and correct centering to the target workpiece. Meanwhile, it is equipped by the auto welding flux feed and recovery system, easy operating and high efficiency. And the column-beam welding machine can increase the height of web according to the need of the users.





Product Details:





1) The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.





2) Each of walking beams is driven by a motor reducer, forming a double-drive system, which makes the operation smooth and reliable.





3) The moving of gantry is frequency speed adjust controlled, the welding speed can be adjusted according to welding technology requirement.



4) The electric control system consists of one electric control box and two operation panels. The electric control box is equipped on a walking beam, while the 2 operation panels are fixed on the front of upper platform. They are placed separately, which is convenient for operation.



5) Cantilever type automatic welding machine.The gantry welding machine can weld back and forth to improve the work efficiency. According to the user needs to increase the height of the web.





Technical Parameters:



Model SXBH-2000
Web Height (mm) 200-2000
Web Width(mm) 200-800
Model of Welding machine Two sets of model MZ1-1000 SAW welding machine
Form of Welding Ship-welding
Welding Speed(m/min) 0.15-1.0m/min
Returning Speed(m/min) 3m/min
Rails Span 2000mm
Overall Power 10kw

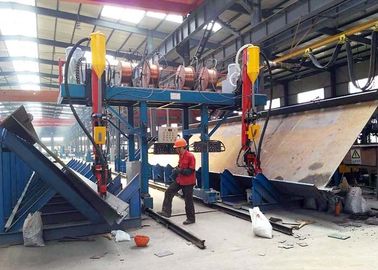

2000mm Web Height H Beam Line , Automatic T Type SAW H Beam Cutting Machine 0



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
