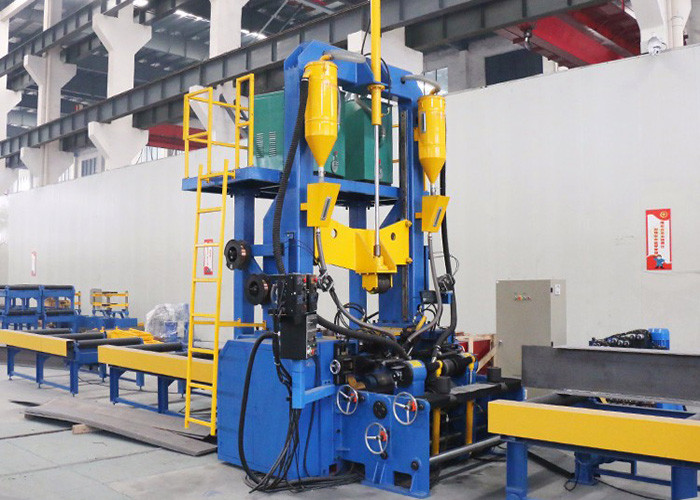

ZHJ0815 Customized H beam Steel Assembly Welding Straightening machine
This is special machine for H beam assembling, welding and straightening, it combines the three processes into one machine, thus improves productivity, reduces cost, and saves the installation space. It can produce H beam and T beam with high efficiency.
Performance and characteristic:
1. The main assembling machine adopts heavy duty assembling structure which has applied invention patent, web plate and flange plate centering and positioning automatically, to make the assembling precision and efficiency greatly improved.
2. Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two directions, it guarantees the nice seam form.
3. Assistant straightening machine has special designed structure, the two straightening rollers can straighten workpiece automatically under the pushing of oil cylinder, straightening mechanism will not block the line of sight on seam, it is convenient to see the adjustment of welding torch and seam quality.
4. Assembling machine and assist straightening machine can be discharged and work separately.
5. Assistant straightening machine can work as small straightening machine after refit.
Technical Parameters:
| Web Height (mm) | 200-1500 |
| Web Thickness (mm) | 6-14mm |
| Straightening speed (m/min) | 0.35-3 |
| Flange Width (mm) | 200-800 |
| Flange Thickness (mm) | 6-20mm |
| Returning Speed(m/min) | 3m/min |
| Main machine power | 13 |
Product Details:
1. Various kinds of welding type, it can use single arc single wire welding or single arc double wire welding according to users’ requirement; it also can use submerged arc welding or gas shielded welding.
2. The flange and web plate centering device is driven by hydraulic motor. Driven by the worm reducer, gear transmission, screw rod and lead screw, the clamping roller can center and clamp the flange and web to realize automatic centering.
3. Lincoln welder control box,variable frequency and speed adjusting system.
4. Electric control box and operational panel are positioned separately, which is convenient for operation.
Sample:
Low distortion, beautiful welding gap.
Technical Function:
1. The flange and web plate centering device is driven by hydraulic motor. Driven by the worm reducer, gear transmission, screw rod and lead screw, the clamping roller can center and clamp the flange and web to realize automatic centering.
2. Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two direction, it guarantees the nice seam form.
3. Main transmission part adopt motor reducer for driving, the assembly and welding speed adjust adopts AC variable frequency speedadjusting, the speed adjustable range is 0.35—3 m/min.
4. Assistant straightening machine has special designed structure , the two straightening rollers can straighten workpiece automatically under the pushing of oil cylinder, straightening mechanism will not block the line of sight on seam, it is convenient to see the adjustment of welding torch and seam quality.
5. Assembling machine and assistant straightening machine can be designed and work separately.
6. This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.
