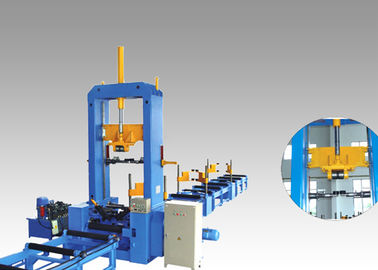

Hydraulic Automatic Centering H Beam Production Line Assembly Machine 1200-1800mm Web Height

Hydraulic Automatic Centering H Beam Production Line Assembly Machine 1200-1800mm Web Height

  • Hydraulic Automatic Centering H Beam Production Line Assembly Machine 1200-1800mm Web Height
Hydraulic Automatic Centering H Beam Production Line Assembly Machine 1200-1800mm Web Height
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HZL-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Web Thickness: 6-32mm
Web Length: 4000-15000mm Flange Thickness: 6-40mm
Flange Plate Width: 200-800mm Color: Red+black, Blue+yellow, Grey+yellow Or Customized
High Light:

cnc h beam drilling machine

,

h beam welding line



HZL Series Hydraulic Automatic Centering H beam Assembly Machine





The vertical assembly machine which the flange,web fastening and calibrating, positioning, and auto spot welding equipped, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products,with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of welding.





Technical Parameters:



Model HZL-1200 HZL-1500 HZL-1800
Web Height (mm) 200-1200 200-1500 200-1800
Web Thickness (mm) 6-32
Web Length (mm) 4000-15000
Flange Plate Width (mm) 200-800
Flange Plate Thickness (mm) 6-40
Assembling-standing Speed (mm/min) 500-6000
Input Roller Way (mm) 2600×3
Output Roller Way (mm) 2600×3
Draw Bar Box 2 pieces
Centering Type Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding
Speed Control AC frequency converter (stepless speed)
Input Capacity 9.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets





Hydraulic Automatic Centering H Beam Production Line Assembly Machine 1200-1800mm Web Height 0



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
