Automatic Robotic Cutting System Station For Steel Dish Ends With Plasma Flame

Name: Automatic Robotic Cutting System Station For Steel Dish Ends With Plasma Flame
Brand: Metalwork
SKU: RWS-series
Rating: 4.5 (178 reviews)

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: RWS-series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywooden box

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                robotic plasma cutter, industrial plasma cutter


Voltage:	380V,3PH,50HZ Or Customerized	Robot Brand:	Japan Kawasaki
Plasma Source:	USA Hypertherm Or Thermadyne	Tooling:	Customized
Color:	White + Red Or Customized	Warranty:	1 Year

Voltage:	380V,3PH,50HZ Or Customerized
Robot Brand:	Japan Kawasaki
Plasma Source:	USA Hypertherm Or Thermadyne
Tooling:	Customized
Color:	White + Red Or Customized
Warranty:	1 Year

Automatic Robotic Cutting System Station For Steel Dish Ends With Plasma Flame

RWS Series Robotics cutting Station with 6 axis Kawasaki Robot Arm Plasma or Flame Cutting for Dish Ends

Features:

Cutting robot consists of robot and plama cutting source. The robot is made up of robot body and controller (hardware and software). While for the cutting source, it is generally include plasma cutting source, plasma cutting torch(clamp), etc.

CNC automatic cutting machine for both straight cutting and bevel cutting.

Thin sheet can use plasma cutting, if thick sheet can use flame cutting.

Stable cutting quality guarantee the uniformity of the product.

It can improve the labor intensity. It can work under the harmful environment.

It can runs 24 hours, and greatly improve the production efficiency.

Industrial 6 Axis Welding Robotic Arm robot arm.

Robot ontology structure of aluminium alloy casting, through computer aided design and finite element structure analysis for the overall excellent strong rigid structure, so as to get the best fixed load capacity.

BA006N Robot

Automatic Robotic Cutting System Station For Steel Dish Ends With Plasma Flame 0

THROUGH-ARM CABLE ARC WELDING ROBOT

The BA006N arc welding robot has a maximum reach of 1,445 mm and a hollow wrist structure that allows for easy management of cables and hoses around the torch, providing stable wire feeding and reliable offline teaching.

MOTION RANGE & DIMENSIONS

Dimensions shown are in (mm).

Automatic Robotic Cutting System Station For Steel Dish Ends With Plasma Flame 1

BA020N SPECIFICATIONS

RA020N SPECIFICATIONS
Type	Articulated Robot
Degree of Freedom	6
Max. Payload (kg)	20
Max. Reach (mm)	1,725
Positional Repeatability (mm) ✽1	±0.04
Motion Range (°)	Arm Rotation (JT1)	±180
	Arm Out-in (JT2)	+155 - −105
	Arm Up-down (JT3)	+150 - −163
	Wrist Swivel (JT4)	±270
	Wrist Bend (JT5)	±145
	Wrist Twist (JT6)	±360
Max Speed (°/s)	Arm Rotation (JT1)	190
	Arm Out-in (JT2)	205
	Arm Up-down (JT3)	210
	Wrist Swivel (JT4)	400
	Wrist Bend (JT5)	360
	Wrist Twist (JT6)	610
Moment (N•m)	Wrist Swivel (JT4)	45
	Wrist Bend (JT5)	45
	Wrist Twist (JT6)	29
Moment of Inertia (kg•m2)	Wrist Swivel (JT4)	0.9
	Wrist Bend (JT5)	0.9
	Wrist Twist (JT6)	0.3
Mass (kg)	230
Body Color	Munsell 10GY9/1 equivalent
Installation	Floor, Ceiling
Environmental Condition	Ambient Temperature (°C)	0 - 45
Environmental Condition	Relative Humidity (%)	35 - 85 (No dew, nor frost allowed)
Power Requirements (kVA) ✽2	3.0
Degree of Protection	IP65
Controller	America	E01
	Europe
	Japan & Asia

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

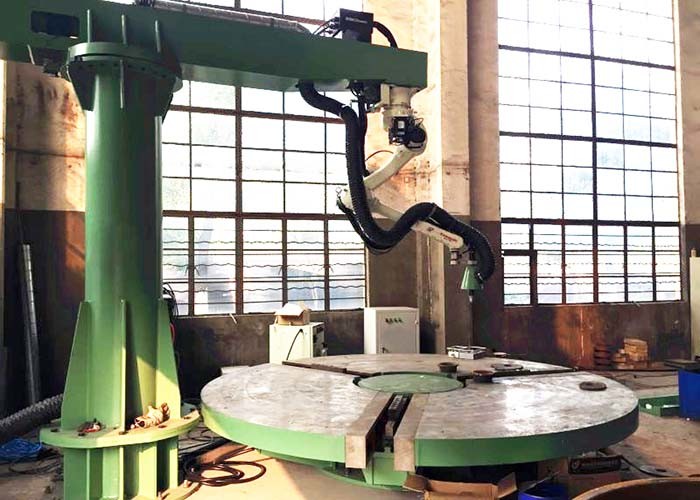

Machines in Using:

Automatic Robotic Cutting System Station For Steel Dish Ends With Plasma Flame 2
