High Performance Industrial Plasma Cutter , Metal Products Robotic Plasma Cutter

High Performance Industrial Plasma Cutter , Metal Products Robotic Plasma Cutter

  • High Performance Industrial Plasma Cutter , Metal Products Robotic Plasma Cutter
  • High Performance Industrial Plasma Cutter , Metal Products Robotic Plasma Cutter
High Performance Industrial Plasma Cutter , Metal Products Robotic Plasma Cutter
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: RWS-series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V,3PH,50HZ Or Customerized Robot Brand: Japan Kawasaki
Laser Source: China Raycus, Or Germany IPG Cooling Mode: Water Cooling
Power: 300W / 500W Application: Laser Cutting, 3D Cutting
High Light:

robotic plasma cutter


hydraulic cutting machine

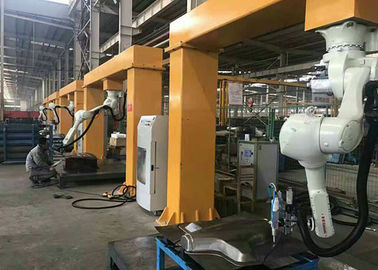

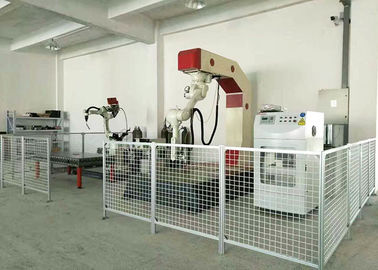

 3D Robotics cutting Station with Fiber Laser Cutting




1. Laser: high-performance fiber lasers, high efficiency, low cost of comprehensive use.

2. The cutting head is equipped with BA020N robots from Kawasaki, the world-renowned robot brand. The robot is agile, powerful and built-in QuickMove. It can improve the path precision and shorten the beat time. The robot software can detect the internal load of the robot effectively. Overload, extended service life, flexible integration, flexible production, can only control, compact and efficient.

3. With the cutting head: optional use of the international top brands of cutting head, to ensure that the laser is always in the focus position to ensure that the cutting effect; offer standard with the same cutting capacity of homemade laser head, more economical and more affordable.

4. Auxiliary blowing system: the system integrates high pressure air, nitrogen, oxygen three gas source structure and high and low pressure conversion gas path, the customer can according to processing quality requirements and cost of choice of auxiliary gas.

5. Lubrication system: The machine is equipped with manual lubrication system to reduce the wear of moving parts and ensure the movement speed of the whole machine.





1. The best combination of sophisticated technique and digital control technology represents the most advanced laser cutting level.

2. The machinery construction are adopted imported manipulator and six axis linkage, and integrate laser beam guidance equipment into robot arm. The combination of stable laser beam and moving robot arm can realize production of any or specific curve in three-dimensional space. Therefore, the convenient operation, high intelligence and greatly reduce the cycle time, and can ensure its high moving speed, high accuracy and high reliability.

3. Equipped with professional moving control system can make sure that the cutting effect and stable moving, all this make cutting more convenient and easy operation.

4. Imported higher precision laser cutting head,quick-response,cutting precision.Cooperate with cnc hand efficiently,avoiding crashing between laser head and working material,as well as assuring the cutting spot to obtain stable cutting quality.

5. The combination of industrial robot and fiber laser,ensure the complete working process.Tidiness cutting slide,without re-treatment.Greatly shorten the working process, reduce the labor mold costs, and also improve the product grade and added value;

6. The laser head can sustain 1.0Mpa gas pressure.High pressure pneumatic equipment improves the cutting ability of difficult cutting material such as stainless steel.

7. Using industrial robots greatly reduces the system cost, reduces the cost of power system and system maintained, reduces the system space.





Available for metal materials such as atainless steel, carbon steel, silicon steel and titanium alloy, alwanys in three-dimentional cutting field. Widely used in various manufacturing industries, such as the automobile manufacturing, mold manufacturing, medical equipment, shipbuliding, aviation, hardware,decoration, metal proceesing service to foreign and others.



Laser Source:

China Raycus or Germany IPG laser source


3D Fiber Laser Cutting Thickness Ability

Material 500w 700w 1000w 2000w 3000w 4000w
Carbon steel 6mm 8mm 10mm 15mm 18-20mm 20-22mm
Stainless steel 3mm 4mm 5mm 8mm 10mm 12mm
Aluminum 1mm 3mm 4mm 6mm 8mm 10mm
Brass 1mm 2mm 4mm 5mm 5mm 5mm
Copper 1mm 2mm 3mm 4mm 4mm 4mm
Galvanized steel 1mm 2mm 4mm 4mm 4mm 4mm



High Performance Industrial Plasma Cutter , Metal Products Robotic Plasma Cutter 0
