Name: Plasma Robotic Cutting System Station For Steel Oil Fuel Tank For Floor Ceiling
Brand: METALWORK MACHINERY (WUXI) CO.LTD
SKU: RWS-series
Availability: InStock

Plasma Robotic Cutting System Station For Steel Oil Fuel Tank For Floor Ceiling

1 set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Voltage: 380V,3PH,50HZ Or Customerized

Robot Brand: Japan Kawasaki

Plasma Source: USA Hypertherm Or Thermadyne

Tooling: Customized

Color: White + Red Or Customized

Warranty: 1 Year

Highlight:

robotic plasma cutter

industrial plasma cutter

Basic Infomation

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: RWS-series

Payment & Shipping Terms

Packaging Details: Plywooden box

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Gallery

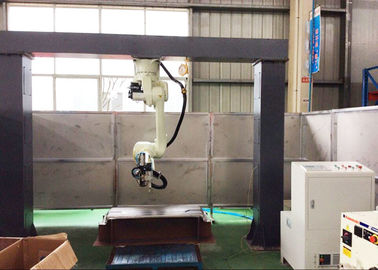

Plasma Robotic Cutting System Station For Steel Oil Fuel Tank For Floor Ceiling

Product Description

RWS Series Robotics cutting Station with Plasma Cutting for Steel Products

Automatic robotics cutting station is consisted of robot arm, robot controller and plama cutting source. The robot is made up of robot body and controller (hardware and software). While for the cutting source, it is generally include plasma cutting source, plasma cutting torch(clamp), etc.

Japan Kawasaki BA020N Robot

Payload: 20kg

Axes: 6

Reach: 1725mm

Repeatability: ±0.04mm

Application:

Cutting

BA020N SPECIFICATIONS

RA020N SPECIFICATIONS
Type	Articulated Robot
Degree of Freedom	6
Max. Payload (kg)	20
Max. Reach (mm)	1,725
Positional Repeatability (mm) ✽1	±0.04
Motion Range (°)	Arm Rotation (JT1)	±180
	Arm Out-in (JT2)	+155 - −105
	Arm Up-down (JT3)	+150 - −163
	Wrist Swivel (JT4)	±270
	Wrist Bend (JT5)	±145
	Wrist Twist (JT6)	±360
Max Speed (°/s)	Arm Rotation (JT1)	190
	Arm Out-in (JT2)	205
	Arm Up-down (JT3)	210
	Wrist Swivel (JT4)	400
	Wrist Bend (JT5)	360
	Wrist Twist (JT6)	610
Moment (N•m)	Wrist Swivel (JT4)	45
	Wrist Bend (JT5)	45
	Wrist Twist (JT6)	29
Moment of Inertia (kg•m2)	Wrist Swivel (JT4)	0.9
	Wrist Bend (JT5)	0.9
	Wrist Twist (JT6)	0.3
Mass (kg)	230
Body Color	Munsell 10GY9/1 equivalent
Installation	Floor, Ceiling
Environmental Condition	Ambient Temperature (°C)	0 - 45
Environmental Condition	Relative Humidity (%)	35 - 85 (No dew, nor frost allowed)
Power Requirements (kVA) ✽2	3.0
Degree of Protection	IP65
Controller	America	E01
	Europe
	Japan & Asia

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

Plasma Source:

USA Hyperthem or USA Victor Thermal Dynamics Brand

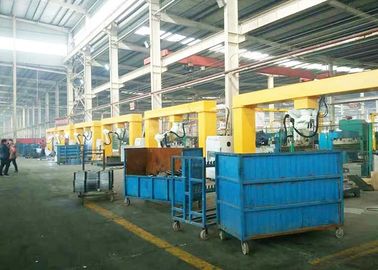

Finished Products:

Plasma Robotic Cutting System Station For Steel Oil Fuel Tank For Floor Ceiling 0
