Home > products > CNC Plasma Cutting Machine > Mini Portable Easy Operation CNC Plasma Plate Cutting Machine with Hongyuda Height Control

Mini Portable Easy Operation CNC Plasma Plate Cutting Machine with Hongyuda Height Control

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC1-1500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywooden box

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc steel cutting machine

,

plasma metal cutting machine

CNC System:
Fangling
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda
Nesting Software:
FastCAM, InteGNPS, Etc.
Color:
White, Red Or Customized
Warranty:
1 Year
CNC System:
Fangling
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda
Nesting Software:
FastCAM, InteGNPS, Etc.
Color:
White, Red Or Customized
Warranty:
1 Year
Mini Portable Easy Operation CNC Plasma Plate Cutting Machine with Hongyuda Height Control



Mini Portable Easy Operation CNC Plasma Plate Cutting Machine with Hongyuda Height Control



Application Scope and Material:



1. Hardly oxidized metal



2. Easily oxidized



3. Stainless steel



4. Brass, aluminum, and zinc

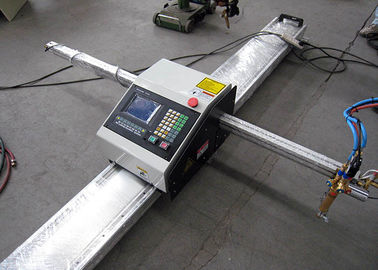

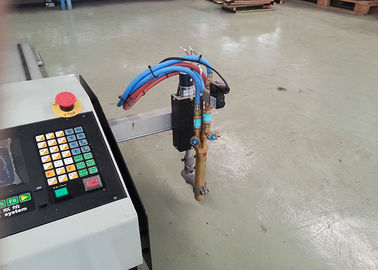

Mini Portable Easy Operation CNC Plasma Plate Cutting Machine with Hongyuda Height Control 0





Features:



  •  The machine can be used for automatic cutting with 1200×2000mm and 1500×3000 cutting range or bigger range as customer's requirements.



  •  CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.



  •  Cutting shape is diverse: you can cut any straight line and arc composed of most of the plane graphics.The slits are flat ,the cutting accuracy is meet the national standards,and modeling offinished product is beautiful and generous.



  •  Economy portable and random combination: the combination of installation, can be free to move as a whole, do not occupy a fixed place, saving processing site.



  •  Cutting thickness: suitable for the flame cutting thickness of within 120 mm, more than this thickness can be customized to meet your different processing needs.



  •  A variety of cutting methods:can choose a single flame cutting, single plasma cutting or flame plasma cutting, according to different processing materials to select the appropriate cutting method.



  •  Cutting precision: the use of seamless gear rack drive, stepper motor drive, Taiwan imported linear guide, the machine running smoothly, high precision.



  • CNC programming: Based on AutoCAD, Perfect laser independent research and development of automatic graphical programming software,is easy to operate, stable and reliable







Technical Parameters:



Model CNC-1200 X 2000 CNC-1500 X 3000
Input Voltage 220V/110V 220V/110V
Power Supply Frequency 50HZ / 60HZ 50HZ / 60HZ
Rated Power Supply 180W 180W
LCD Dimension 5.7 Inches 5.7 Inches
Effective Cutting Width (X axis) 1200mm 1500mm
Effective Cutting Length (Y axis) 2000/3000/6000mm 3000/6000mm
Cutting Speed 0-2500mm per minute 0-2500mm per minute
Plasma Cutting Thickness 2--20mm (0.08''--0.79'') 2--20mm (0.08''--0.79'')
Flame Cutting Thickness 6--150mm (0.2''--5.9'') 6--150mm (0.2''--5.9'')
Emergency Stop Button No Yes
Free (Off) Button No Yes
Cross Beam Length 1700mm 2200mm
Longitudinal Rail Length 2500/4000/6000mm 4000/6000mm
Longitudinal Rail Width 196mm 345mm
Host Machine Dimension (L*W*H mm) 508*344*305 600*449*350
Cross Beam Weight 9.3kg 12kg
Host Machine Weight 26.7kg 30kg
Longitudinal Rail Weight 34.5kg 53.5kg
Total Weight 70.5kg (156 lbs ) 95.5kg (211 lbs)
Gas Pressure Max. 0.1Mpa (14.5 PSI ) Max. 0.1Mpa (14.5 PSI )
Oxygen Pressure Max. 1.0Mpa (145 PSI ) Max. 1.0Mpa (145 PSI )
Cutting Gas Acetylene/Propane/Methane Acetylene/Propane/Methane
Plasma Power Source THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
Plasma Air Only pressed Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa (116 PSI) Max. 0.8Mpa (116 PSI)

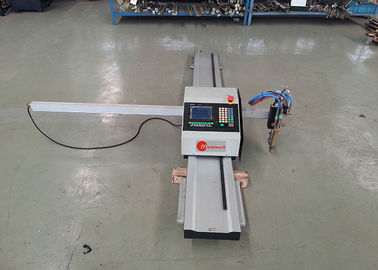

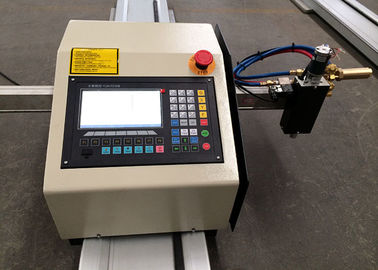

Mini Portable Easy Operation CNC Plasma Plate Cutting Machine with Hongyuda Height Control 1
