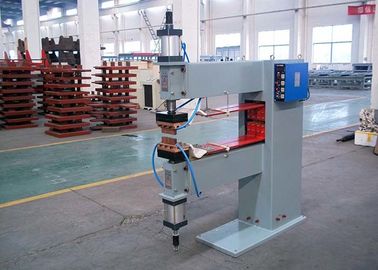

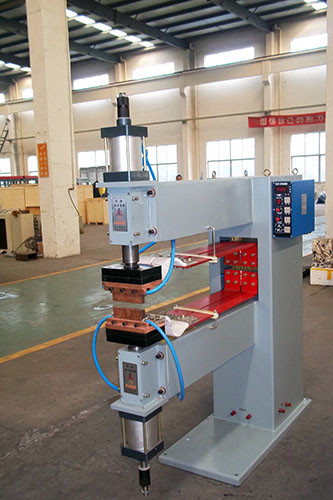

Double Cylinders Rowing Projection Spot Welding Machine Automatic Wire Mesh 1000mm Arm

DP Series Double Cylinders Automatic Steel Wire Mesh Multi-Spot Rowing Welding Machine

Resistive spot welding (DP) is a process in which contacting metal surfaces are joined by the heat obtained from resistance to electric current.

Work-pieces are held together under pressure exerted by electrodes. Typically the sheets are in the 0.5 to 3 mm (0.020 to 0.118 in) thickness range. The process uses two shaped copper alloy electrodes to concentrate welding current into a small "spot" and to simultaneously clamp the sheets together. Forcing a large current through the spot will melt the metal and form the weld. The attractive feature of spot welding is that a lot of energy can be delivered to the spot in a very short time (approximately 10–100 milliseconds). That permits the welding to occur without excessive heating of the remainder of the sheet.

Applications:

1. Mild steel sheet, stainless steel sheet, galvanized metal sheet spot welding.

2. Metal sheet fixing welding before continues rolling seam welding.

3. Welding fan guard (with proper designed fixing and driving system), welding metal art ware, stationery, cook ware.

4. With special made electrode, it can weld small mesh, birds cage, pets cage, condenser and similar work piece.

5. Weld connection parts, the hinge, nuts and bolt welding, low carbon fasteners and stainless fasteners.

6. Welding high conductive material, like aluminum, electrical contact, copper wire etc.(using Middle frequency power)

Technical Parameters:

Features:

•  The machine structure is stable and with both spot and rowing welding functions.

•  The machine is equipped with upper and lower air cylinders.

•  The machine is equipped with standard metal arm for row welding and with one set extra copper arm for spot welding.

•  The adjustable speed of electrode reduce the shock to welded working parts when compressing the welded working parts, and reduce the noise.

•  Transformer has adopted the low impedance design. Second circuit using the high-quality conducting material .It can reduce the internal friction. The small input can acquire bigger welding current.

•  Operation interface use digital or liquid crystal display (LCD). Clear, simple, intuitive.

•  It is widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.

•  High-quality cylinders and air valves guarantee the reliable and stable running of pneumatic system.

•  Simple and reliable new generation of digital controller.

•  New type single chip processor controller can be equipped as well.

•  This type of welding machine is widely used in hardware manufacturing, traffic tools, household items, cars. can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc
